Baudin

This report is generated for performance of Barley model in APSIM NG for cultivar Baudin.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Baudin
parameter value
[Phenology].MinimumLeafNumber.FixedValue 9
[Phenology].PpSensitivity.FixedValue 3
[Phenology].VrnSensitivity.FixedValue 0
[Phenology].EarlyReproductivePpSensitivity.FixedValue 2
[Structure].BranchMortality.MortalityPhase.Mortality.MortalityPerDegDay.XYPairs.Y 0.001,0

Experiments

There are 12 experiments which tested cultivar Baudin and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Baudin across all experiments.

Table 2: Performance summary for cultivar Baudin
trait n r r2 bias mse rmse nrmse d
Phenology.EmergenceDAS 63 1.00 1.00 0.00 0.00 0.00 0.00 1.00
Phenology.FinalLeafNumber 2 NA NA -1.50 2.28 1.51 0.20 0.18
Phenology.FlagLeafDAS 12 0.98 0.96 -0.33 23.83 4.88 0.06 0.99
Phenology.FloweringDAS 2 1.00 1.00 2.00 4.00 2.00 0.03 1.00
Phenology.HaunStage 30 0.94 0.89 -0.44 0.99 0.99 0.19 0.95
Phenology.MaturityDAS 6 0.97 0.94 -0.67 26.67 5.16 0.03 0.98
Phenology.Zadok.Stage 84 0.54 0.29 9.98 891.99 29.87 0.60 0.75

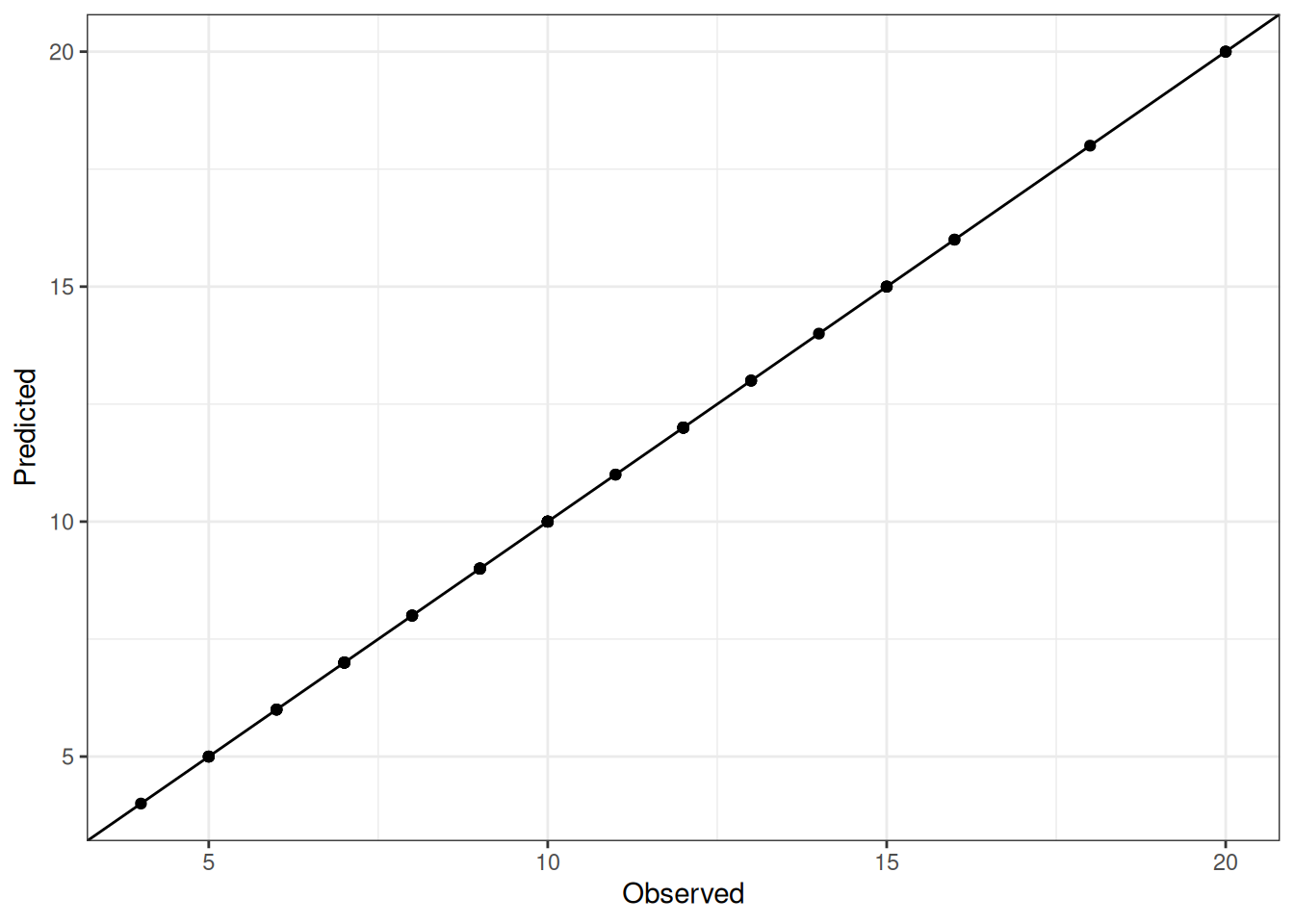

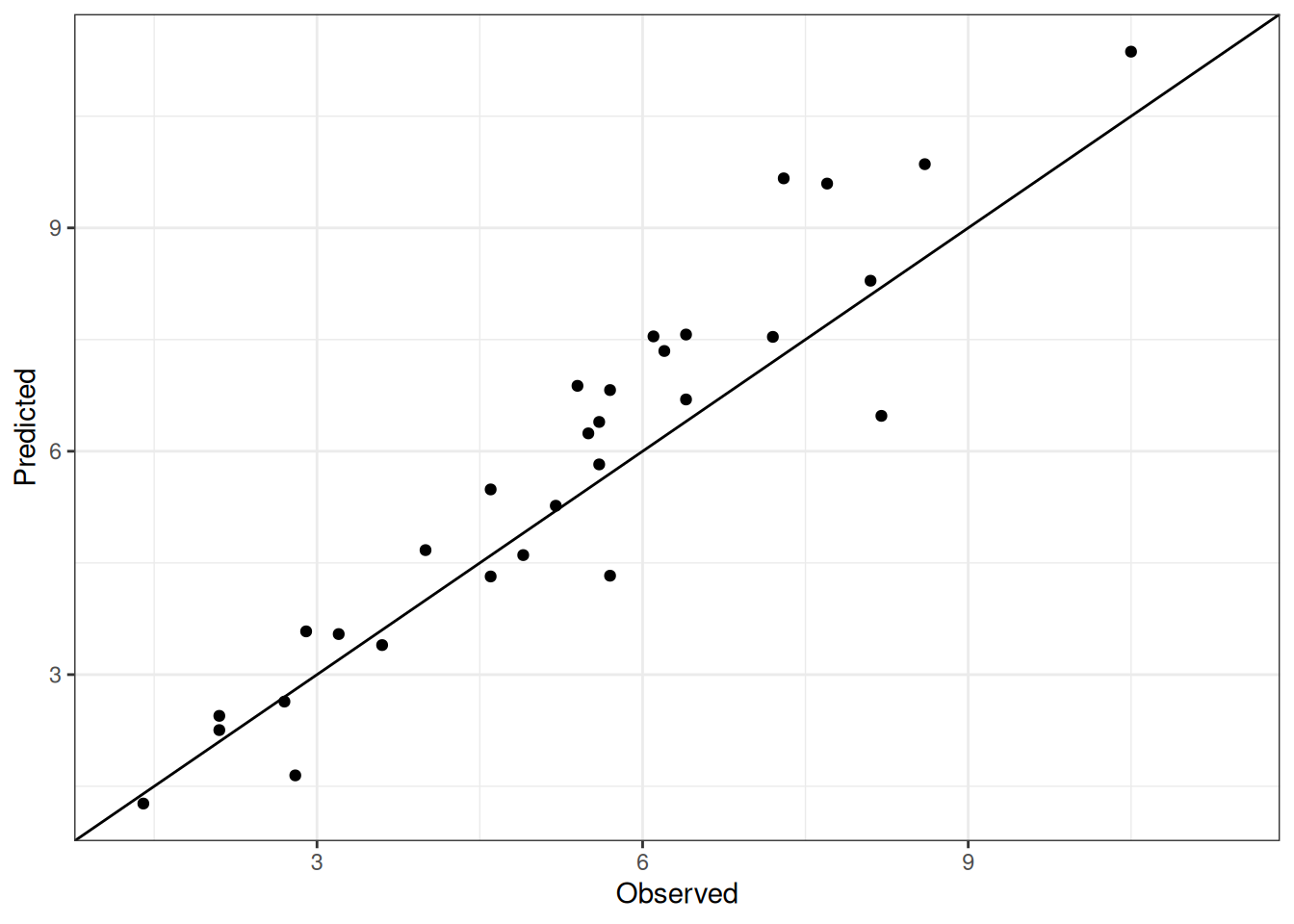

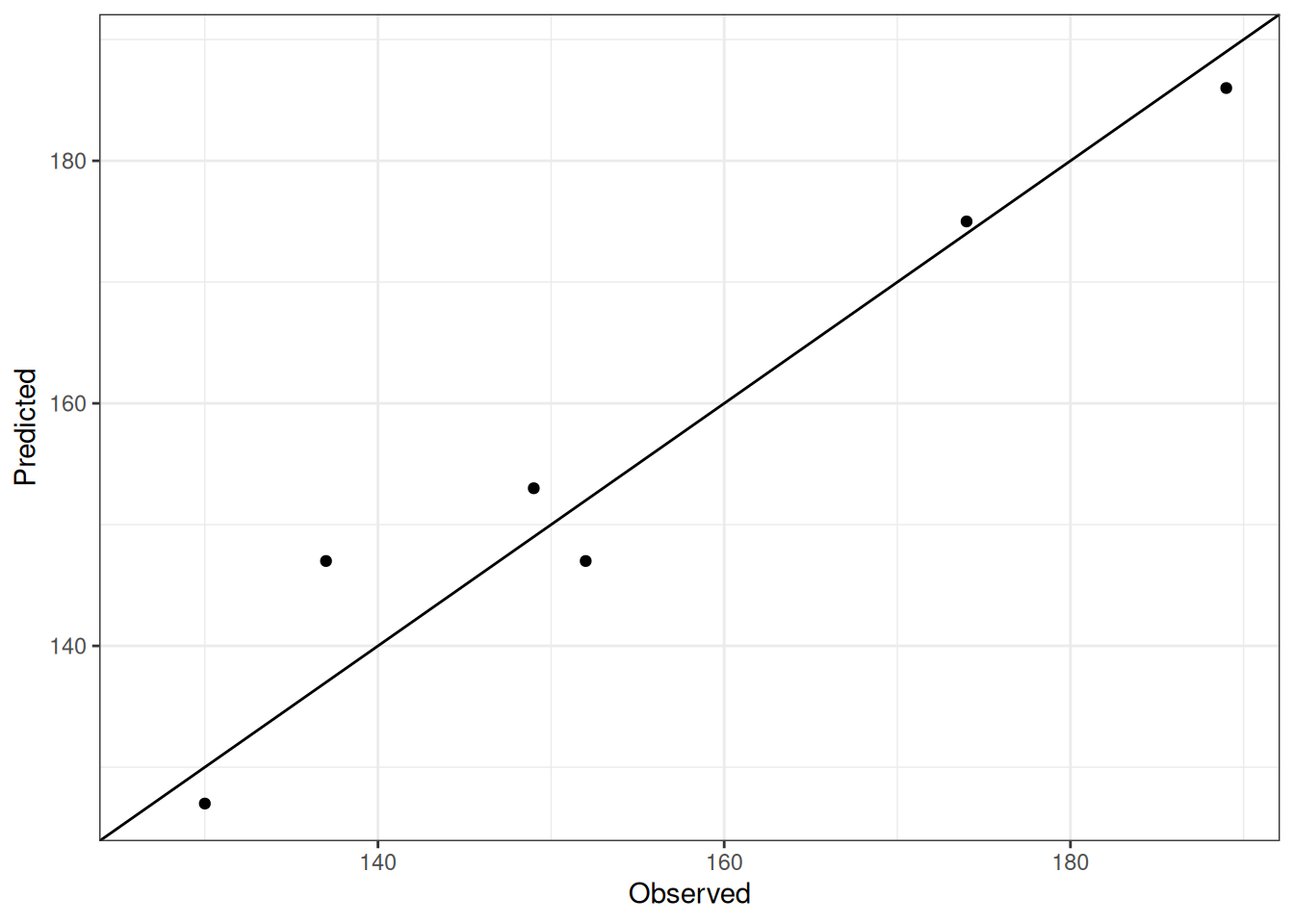

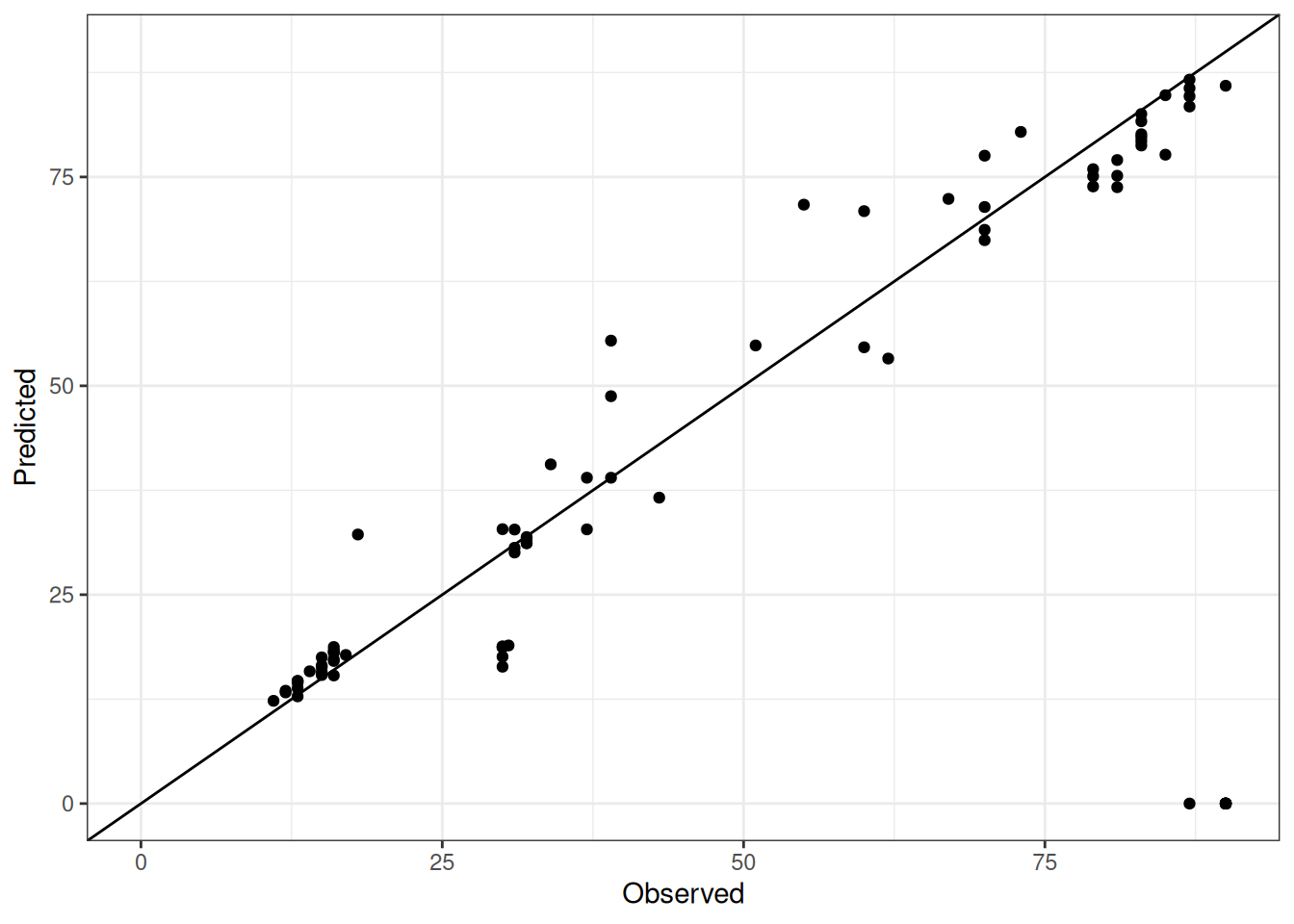

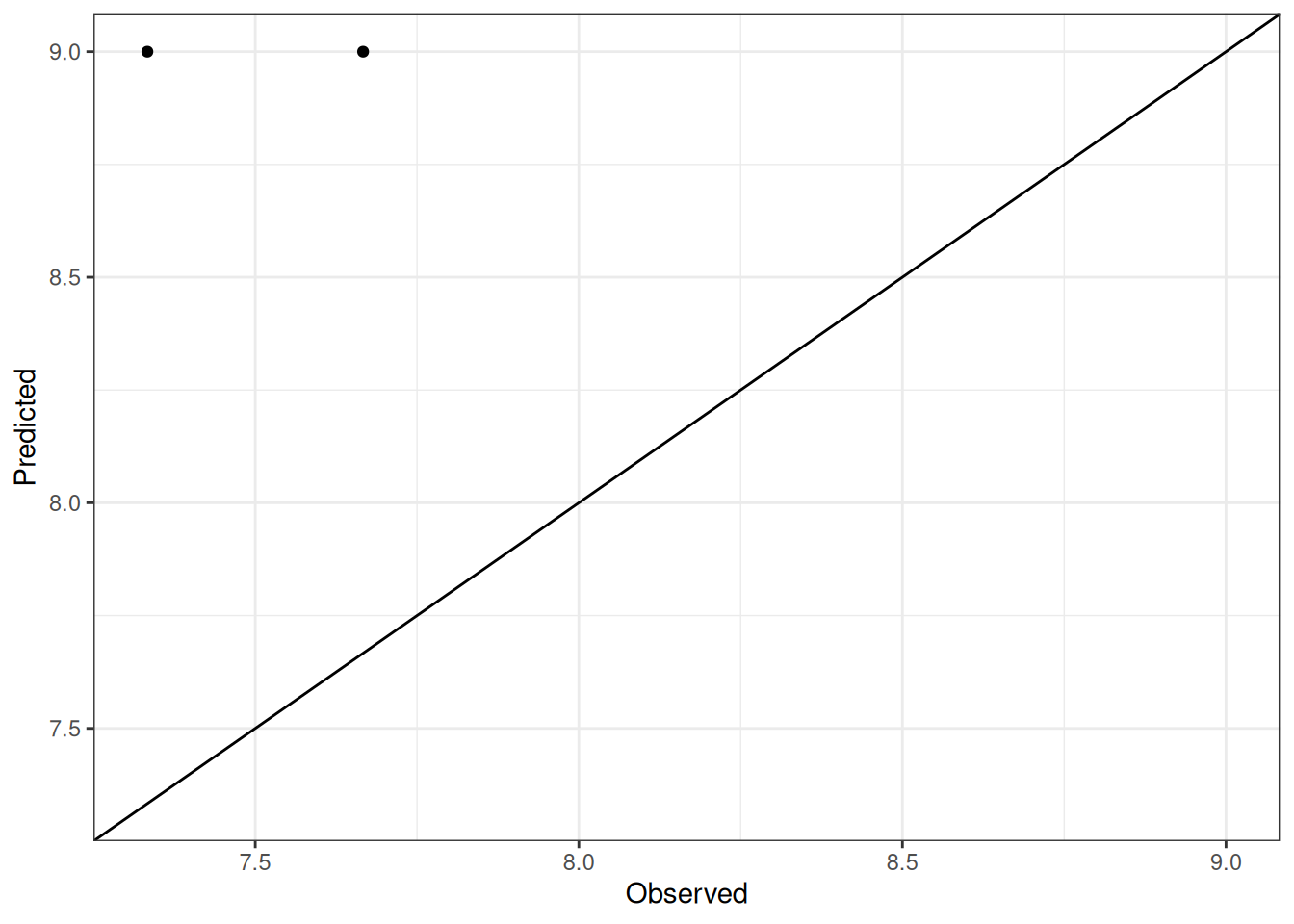

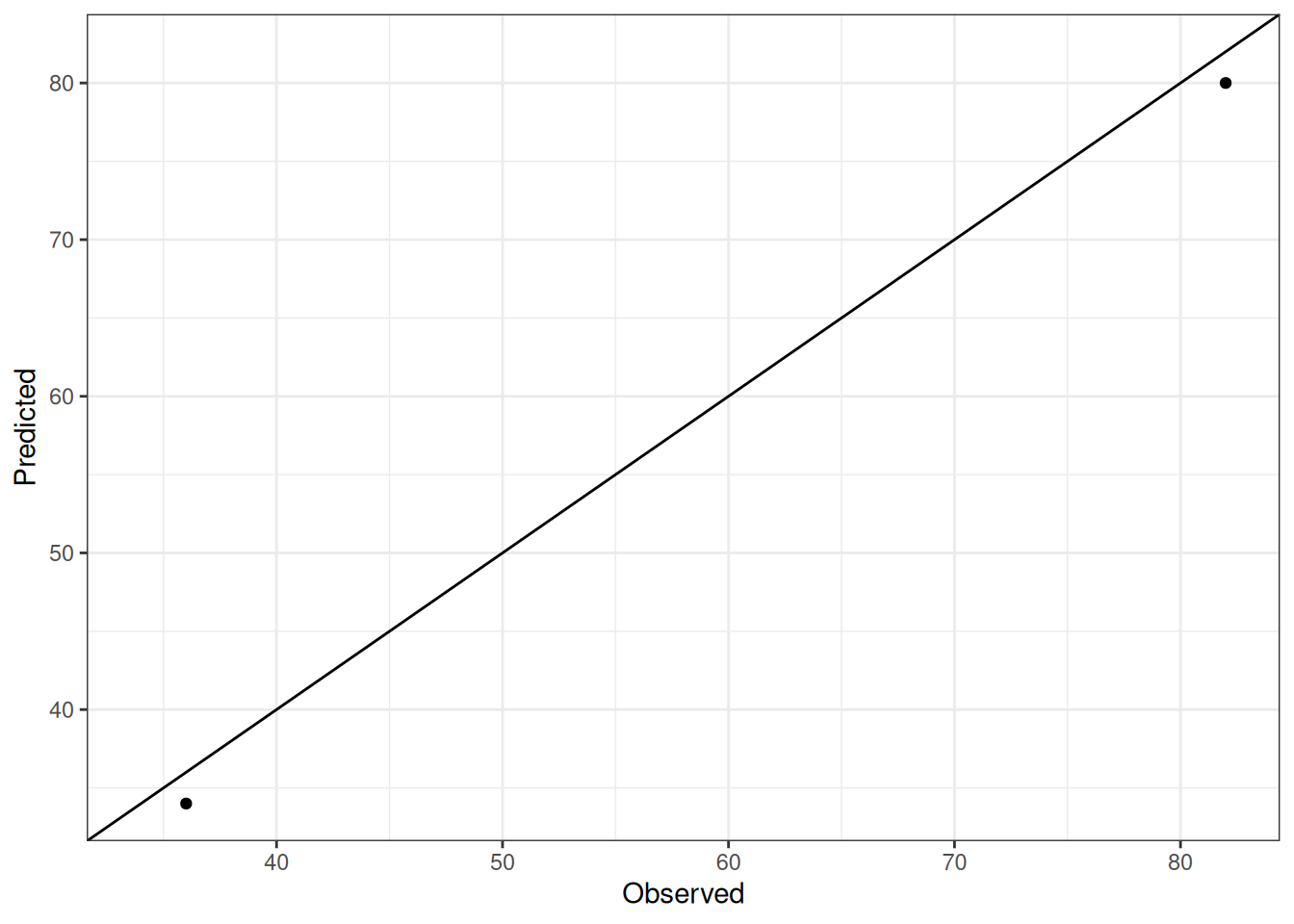

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
