CSIROB1

This report is generated for performance of Barley model in APSIM NG for cultivar CSIROB1.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for CSIROB1
parameter value
[Phenology].MinimumLeafNumber.FixedValue 7.33
[Phenology].PpSensitivity.FixedValue 1.66
[Phenology].VrnSensitivity.FixedValue 2.66
[Phenology].EarlyReproductivePpSensitivity.FixedValue 2
[Structure].BranchMortality.MortalityPhase.Mortality.MortalityPerDegDay.XYPairs.Y 0.001,0

Experiments

There are 9 experiments which tested cultivar CSIROB1 and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar CSIROB1 across all experiments.

Table 2: Performance summary for cultivar CSIROB1
trait n r r2 bias mse rmse nrmse d
Phenology.EmergenceDAS 56 1 1 0.0 0.00 0.00 0.00 1.00
Phenology.FinalLeafNumber 2 1 1 -0.2 0.09 0.30 0.03 0.99
Phenology.FlagLeafDAS 2 1 1 -8.0 89.00 9.43 0.21 0.95
Phenology.FloweringDAS 2 1 1 -0.5 42.50 6.52 0.12 0.98

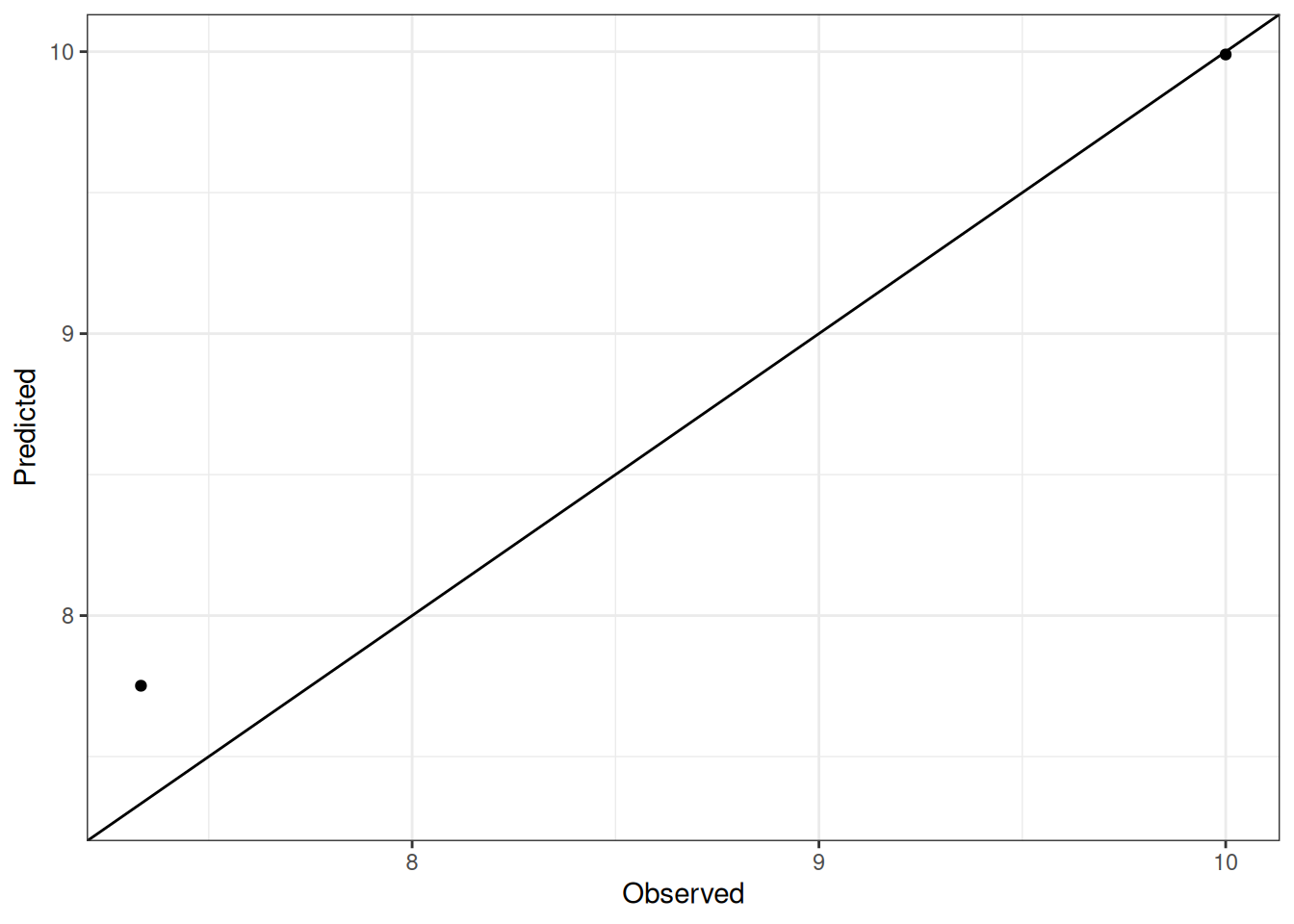

Observed vs Predicted plots for different traits.

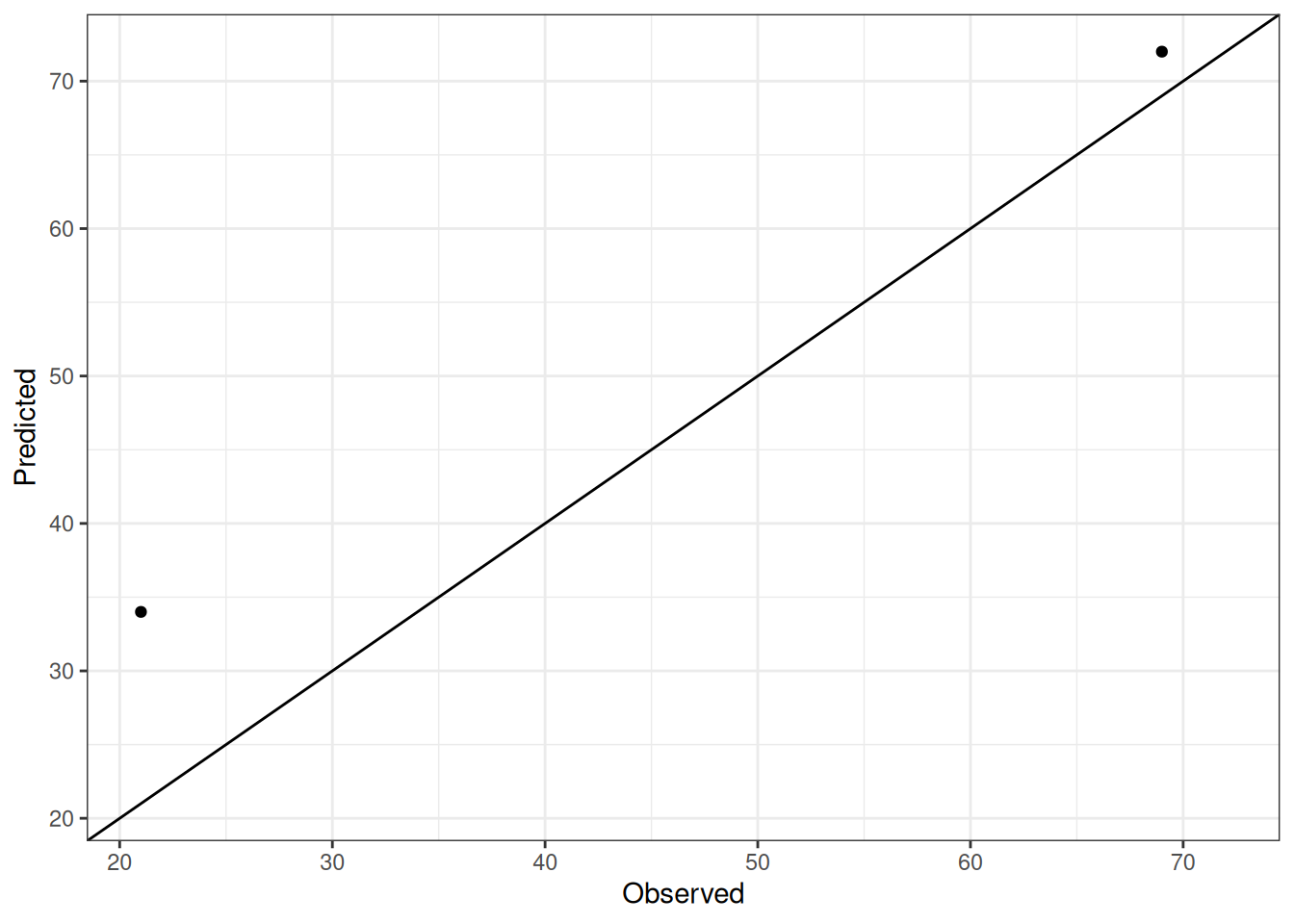

Observed vs Predicted plots for different traits.

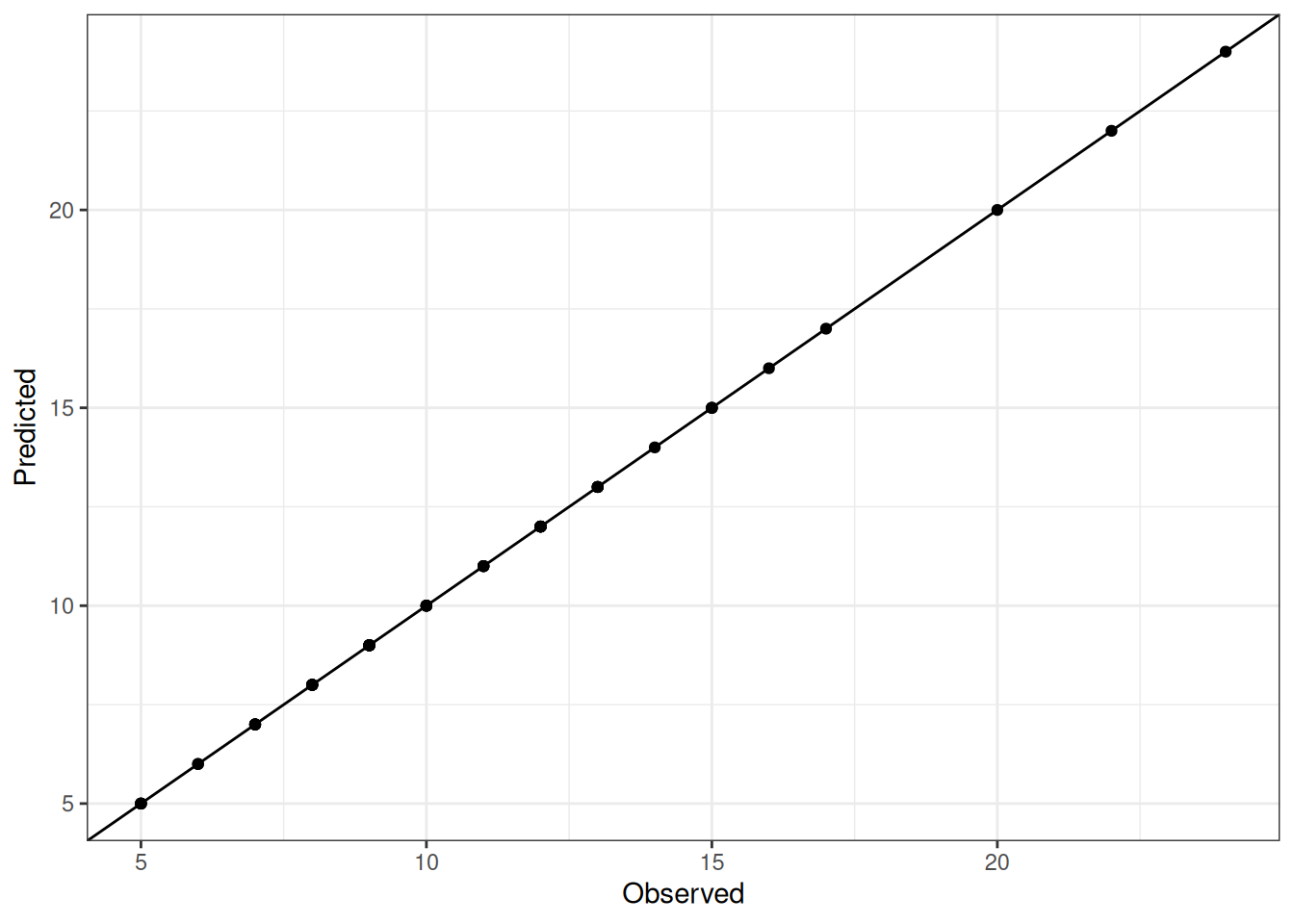

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
