Hindmarsh

This report is generated for performance of Barley model in APSIM NG for cultivar Hindmarsh.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Hindmarsh
parameter value
[Phenology].PpSensitivity.FixedValue 4
[Phenology].EarlyReproductivePpSensitivity.FixedValue 2
[Structure].BranchMortality.MortalityPhase.Mortality.MortalityPerDegDay.XYPairs.Y 0.001,0

Experiments

There are 3 experiments which tested cultivar Hindmarsh and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Hindmarsh across all experiments.

Table 2: Performance summary for cultivar Hindmarsh
trait n r r2 bias mse rmse nrmse d
Phenology.FlagLeafDAS 4 1.00 1.00 -3.00 58.00 7.62 0.07 0.96
Phenology.HaunStage 28 0.94 0.89 -0.84 1.57 1.25 0.26 0.93
Phenology.MaturityDAS 6 0.98 0.95 -1.83 24.50 4.95 0.03 0.99
Phenology.Zadok.Stage 84 0.60 0.36 12.05 821.22 28.66 0.55 0.77

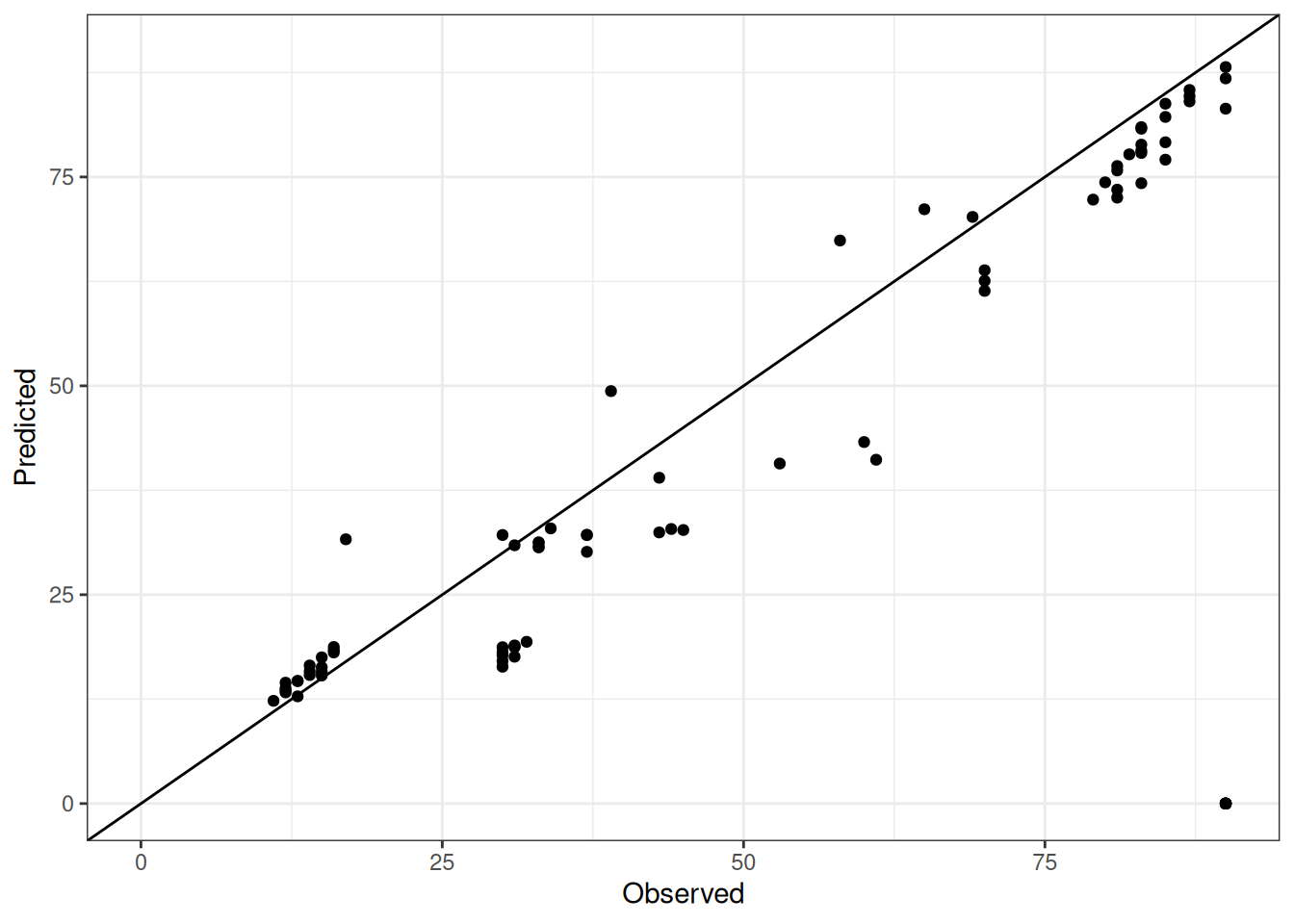

Observed vs Predicted plots for different traits.

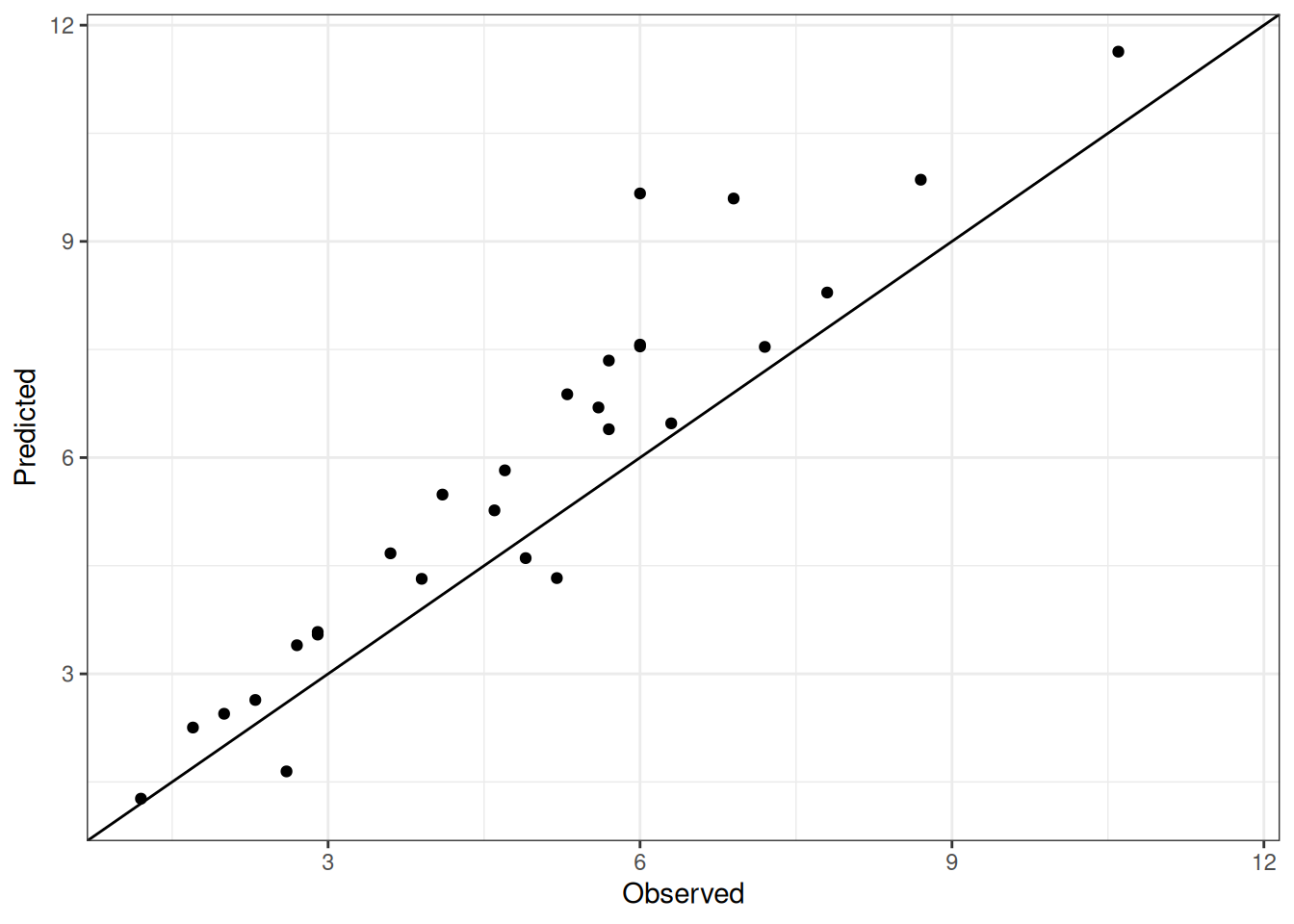

Observed vs Predicted plots for different traits.

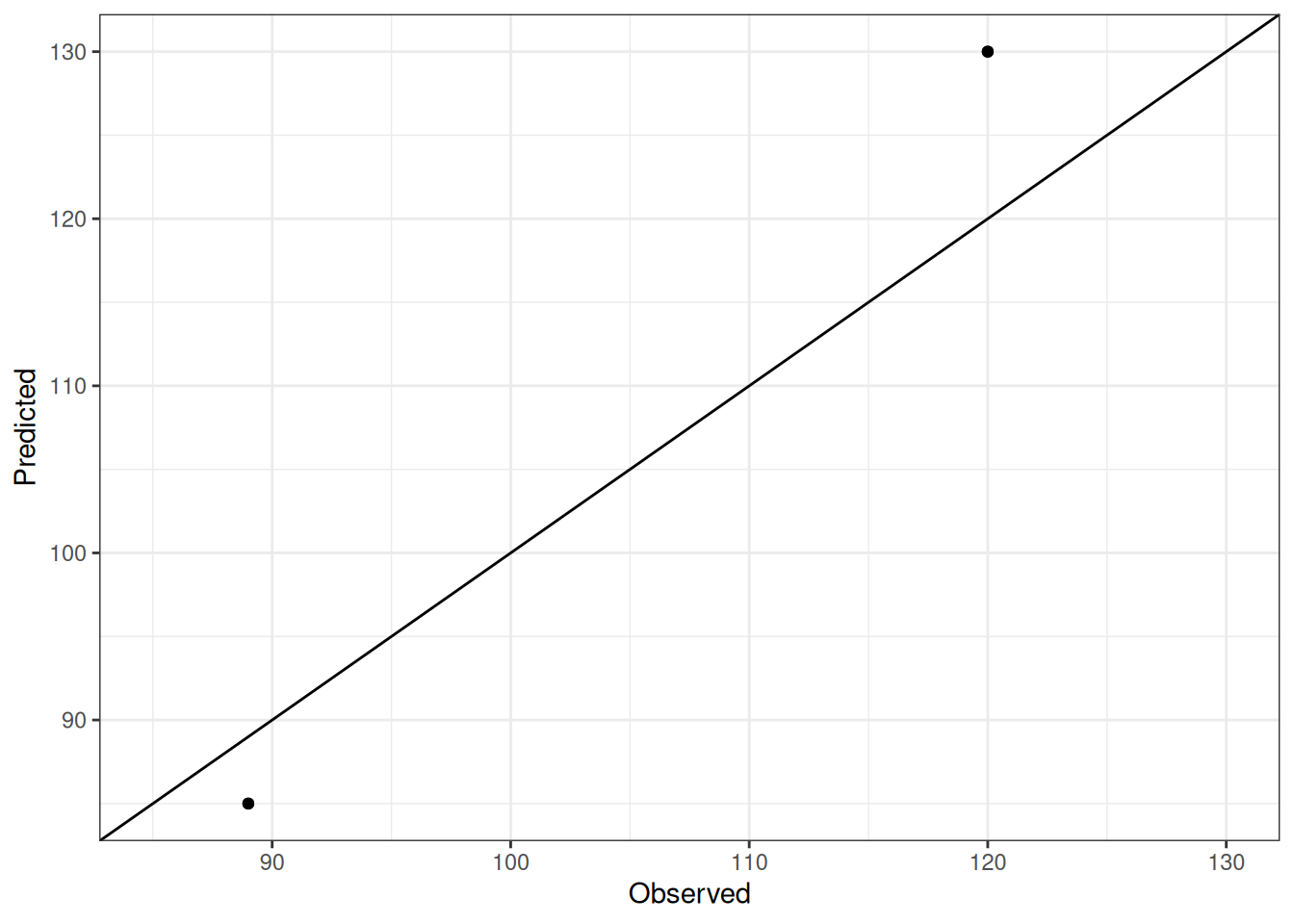

Observed vs Predicted plots for different traits.

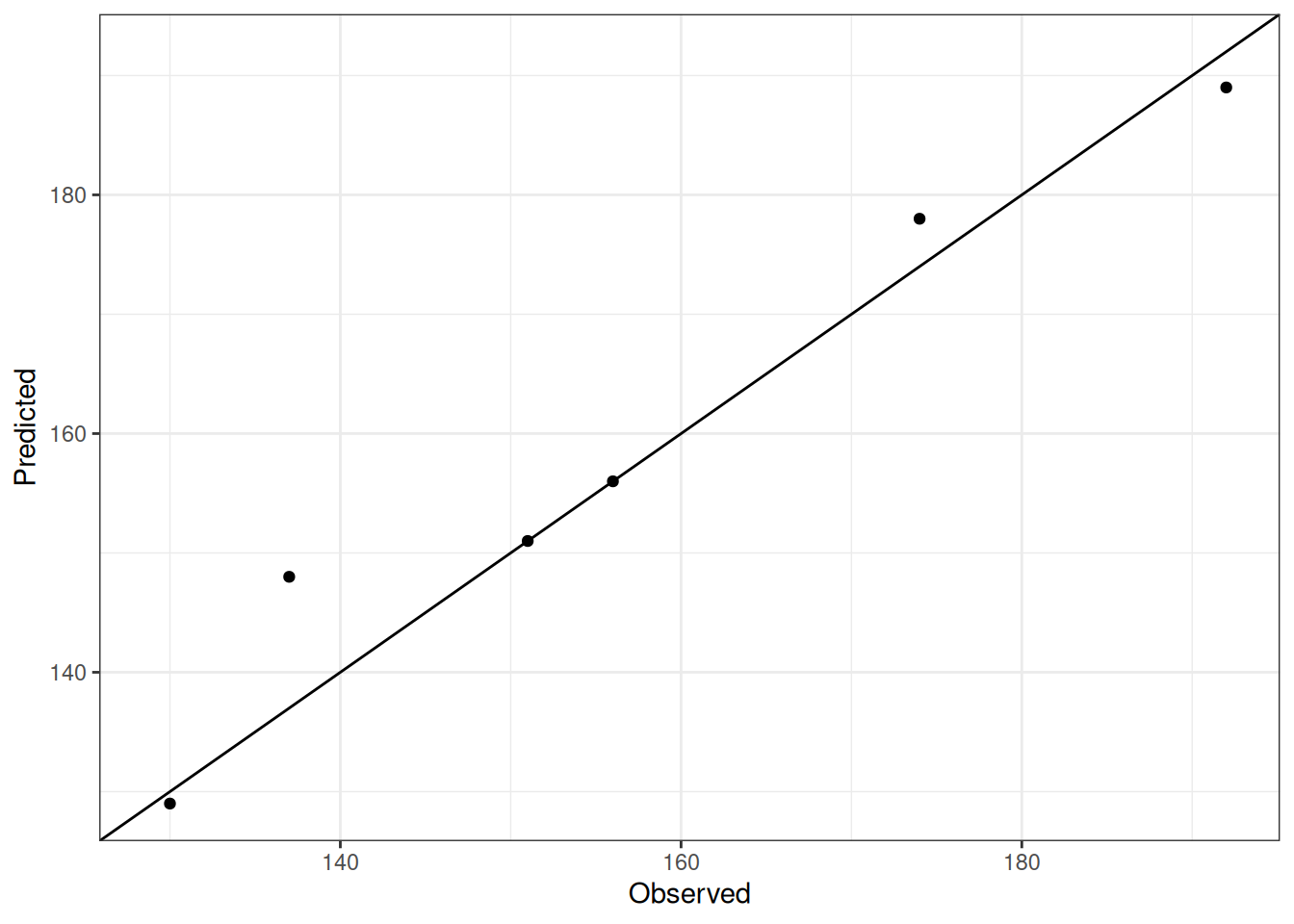

Observed vs Predicted plots for different traits.
