Navigator

This report is generated for performance of Barley model in APSIM NG for cultivar Navigator.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Navigator
parameter value
[Phenology].MinimumLeafNumber.FixedValue 8
[Phenology].PpSensitivity.FixedValue 2
[Phenology].VrnSensitivity.FixedValue 0
[Phenology].EarlyReproductivePpSensitivity.FixedValue 2
[Structure].BranchMortality.MortalityPhase.Mortality.MortalityPerDegDay.XYPairs.Y 0.001,0

Experiments

There are 9 experiments which tested cultivar Navigator and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Navigator across all experiments.

Table 2: Performance summary for cultivar Navigator
trait n r r2 bias mse rmse nrmse d
Phenology.EmergenceDAS 63 1 1 0 0 0.00 0.00 1.00
Phenology.FinalLeafNumber 2 NA NA 0 0 0.00 0.00 NaN
Phenology.FlagLeafDAS 2 1 1 3 10 3.16 0.06 1.00
Phenology.FloweringDAS 2 1 1 13 170 13.04 0.20 0.93

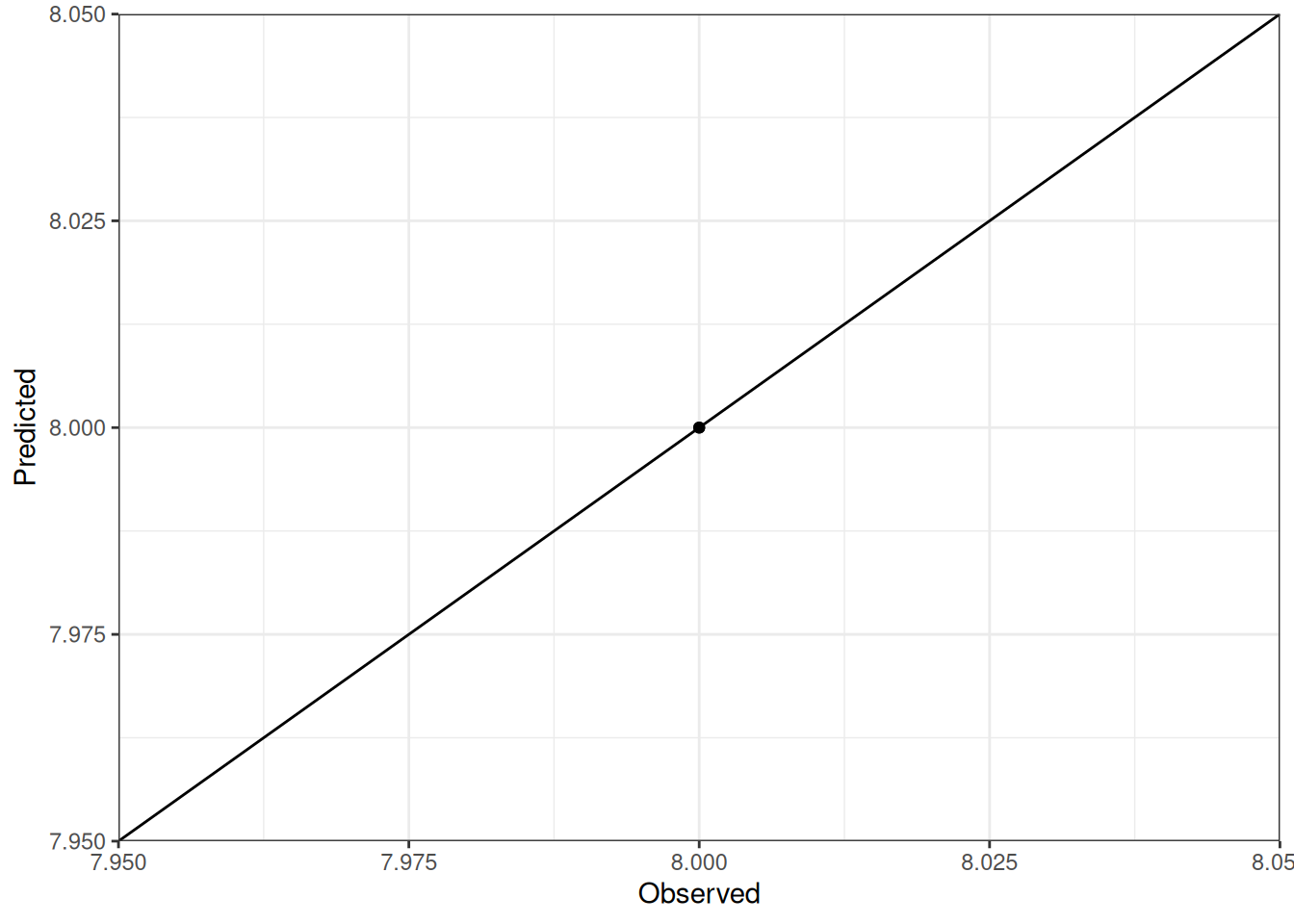

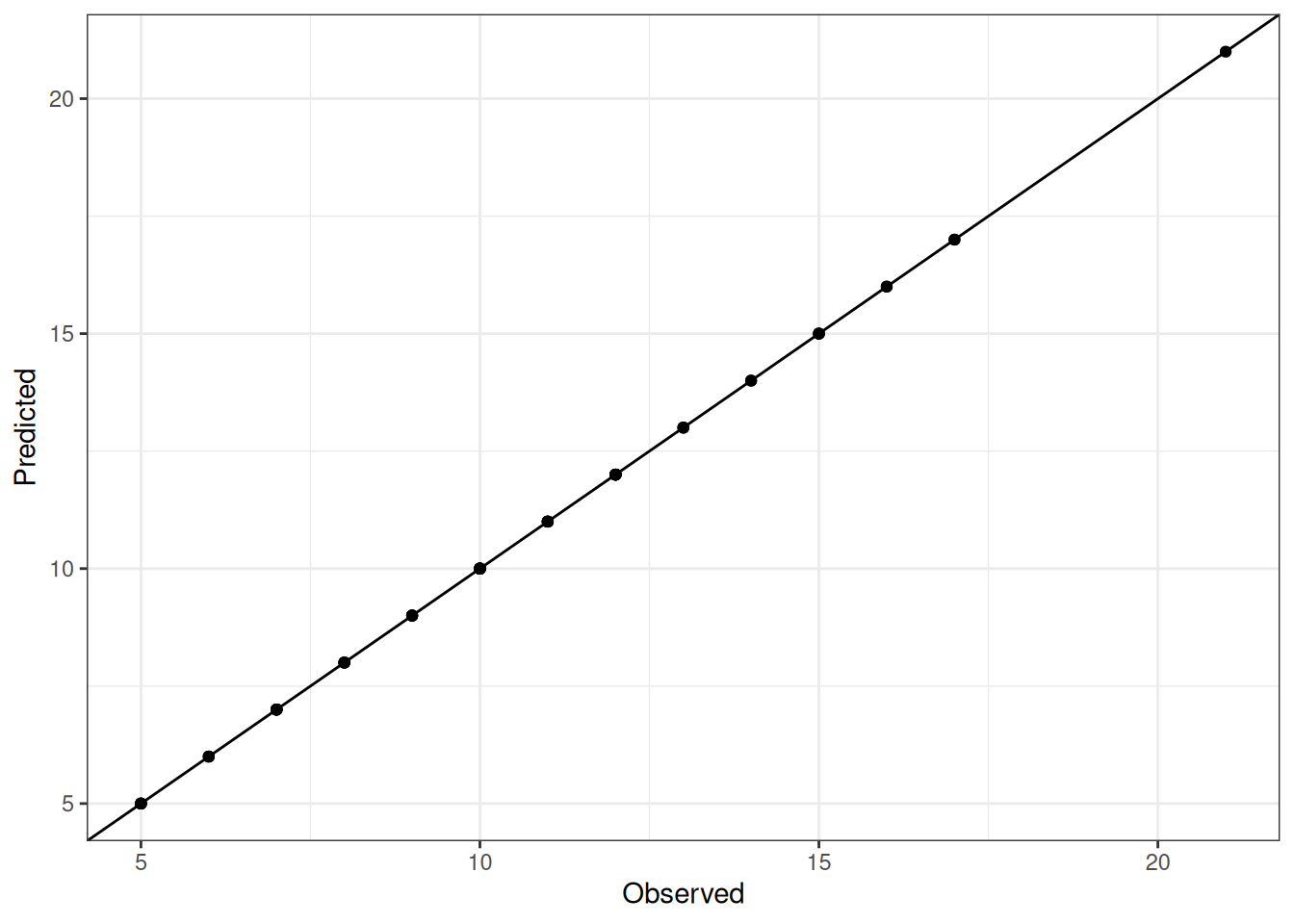

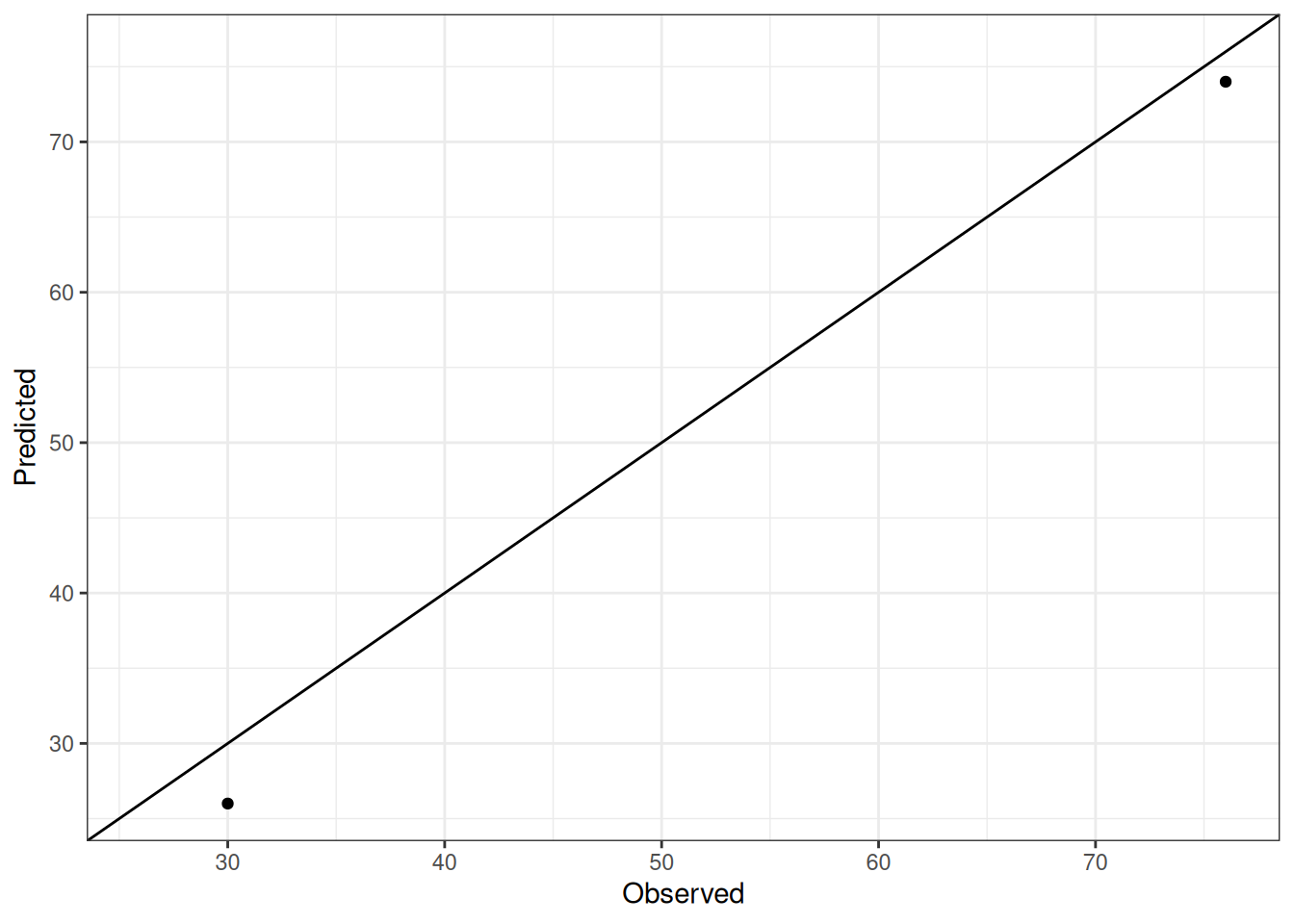

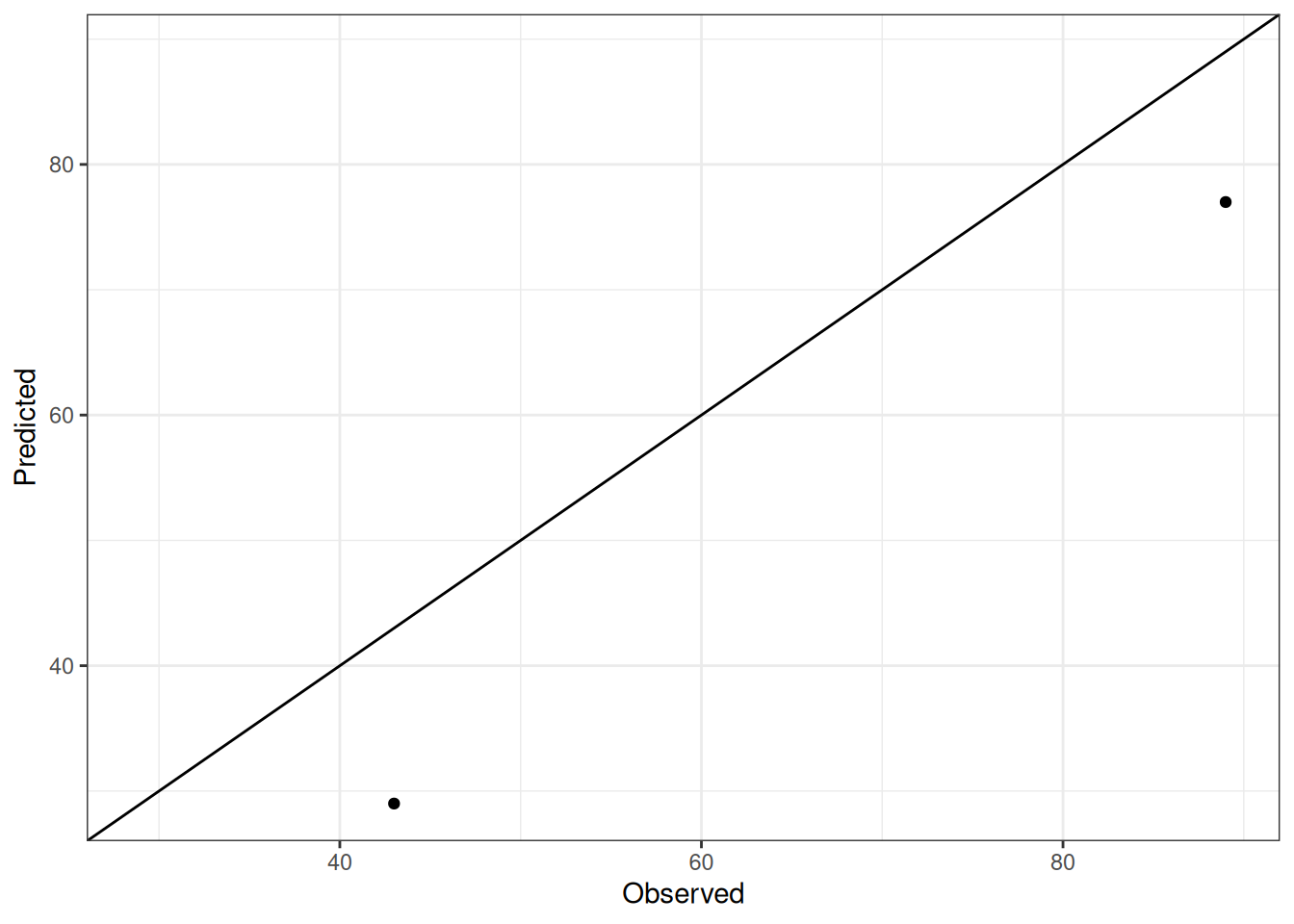

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
