Retriever

This report is generated for performance of Barley model in APSIM NG for cultivar Retriever.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Retriever
parameter value
[Phenology].PpSensitivity.FixedValue 5

Experiments

There are 1 experiments which tested cultivar Retriever and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Retriever across all experiments.

Table 2: Performance summary for cultivar Retriever
trait n r r2 bias mse rmse nrmse d
AboveGround.Wt 10 0.99 0.99 -61.25 8379.92 91.54 0.11 0.99
Ear.Wt 5 1.00 1.00 -62.40 12465.53 111.65 0.28 0.97
Grain.Number 2 NA NA -6973.81 48633962.79 6973.81 0.38 0.00
Grain.Size 2 NA NA 0.00 0.00 0.00 0.01 0.00
Grain.Wt 5 1.00 1.00 -163.86 33985.67 184.35 0.45 0.91
Leaf.CoverGreen 11 0.96 0.92 -0.07 0.02 0.13 0.26 0.95
Leaf.CoverTotal 11 0.93 0.87 -0.04 0.03 0.16 0.29 0.93
Leaf.Dead.Wt 3 1.00 1.00 47.97 3338.16 57.78 0.97 0.50
Leaf.LAI 8 0.93 0.87 -0.23 0.21 0.46 0.20 0.95
Leaf.Live.Wt 8 0.98 0.96 16.83 399.14 19.98 0.16 0.95
Leaf.SpecificAreaCanopy 8 -0.46 0.22 -0.01 0.00 0.01 0.36 0.33
Leaf.Wt 2 1.00 1.00 59.23 3657.51 60.48 0.38 0.40
Spike.Wt 5 1.00 1.00 49.45 2480.45 49.80 0.41 0.60
Stem.Wt 9 0.92 0.85 -61.03 13838.40 117.64 0.32 0.94

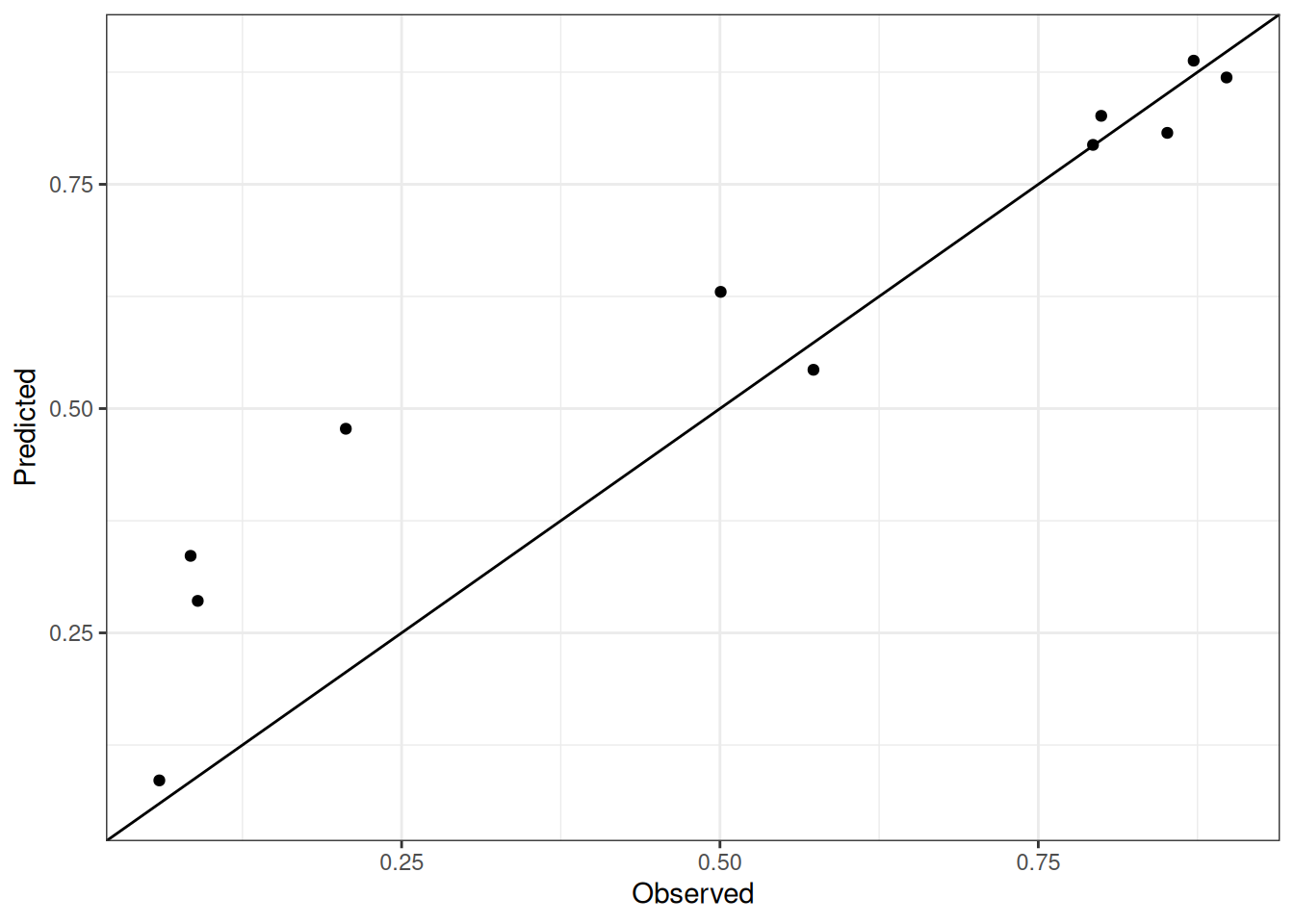

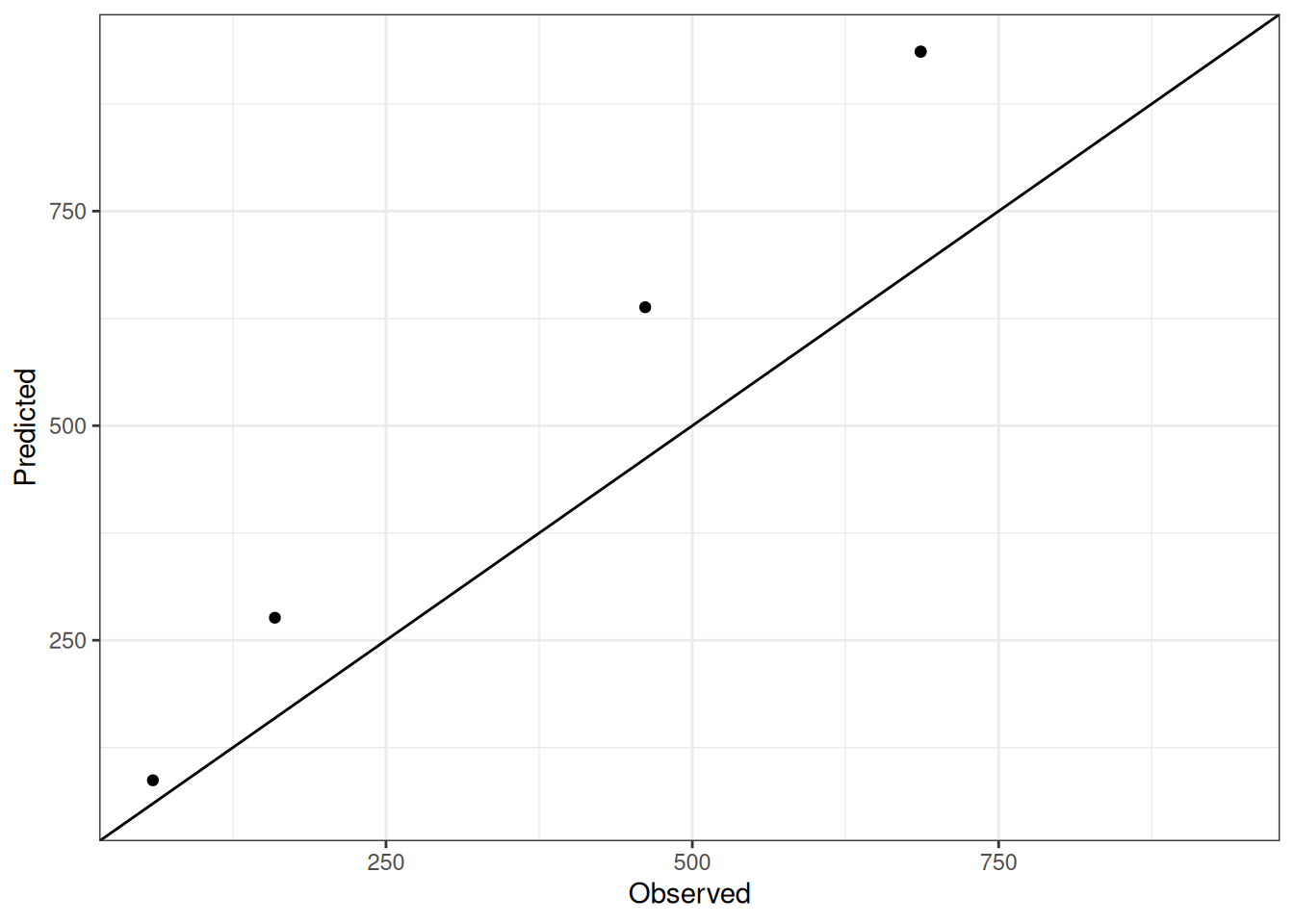

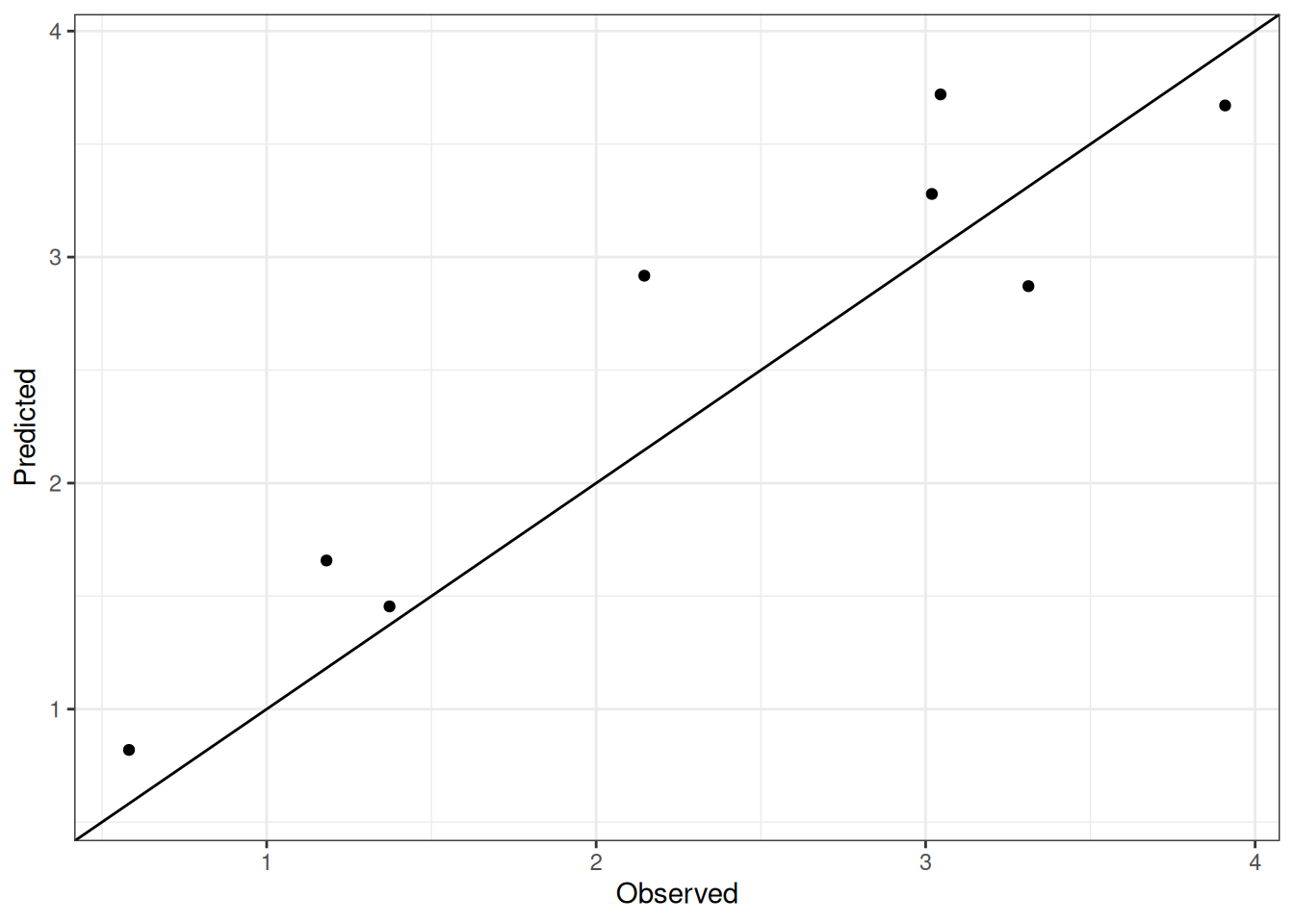

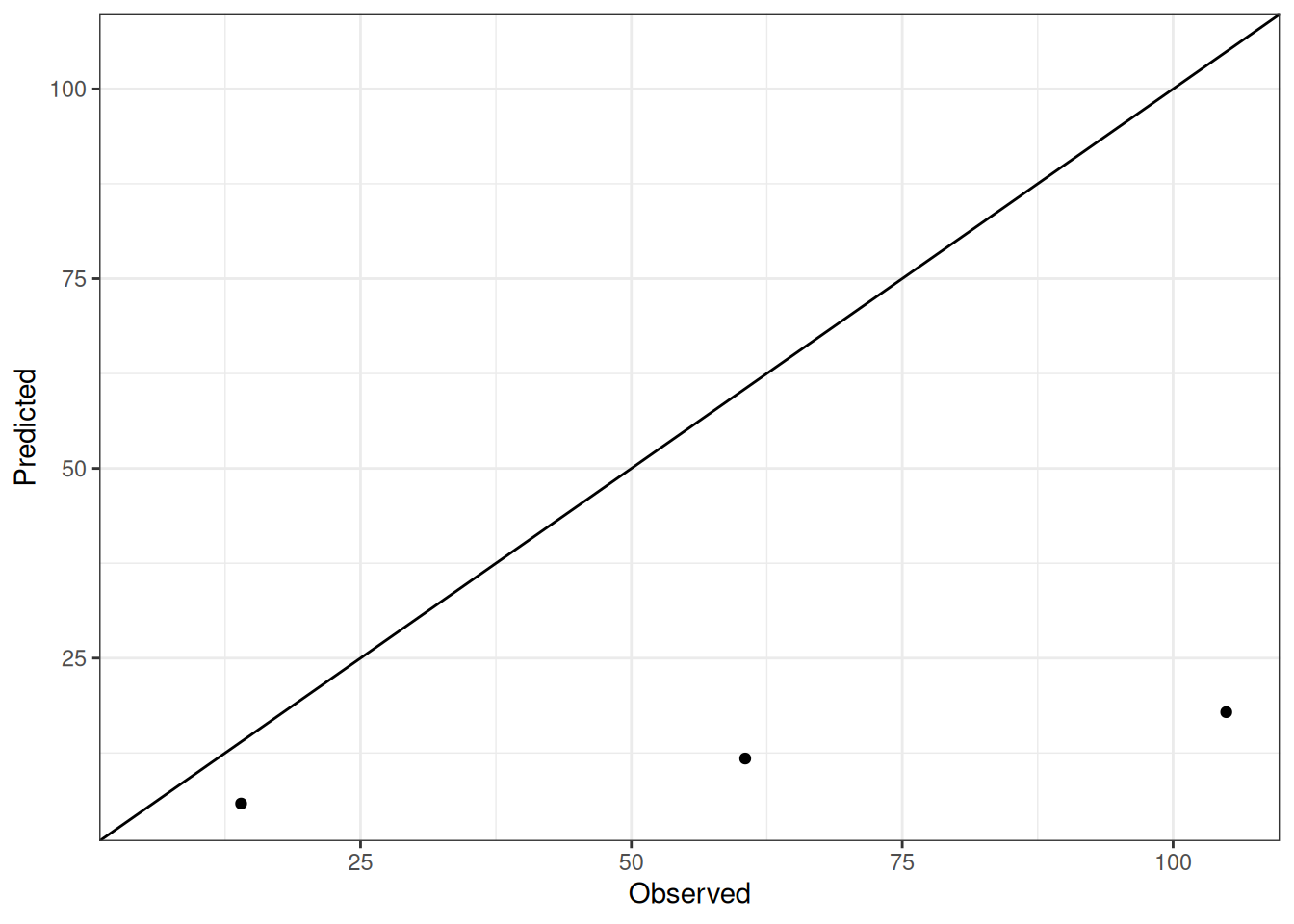

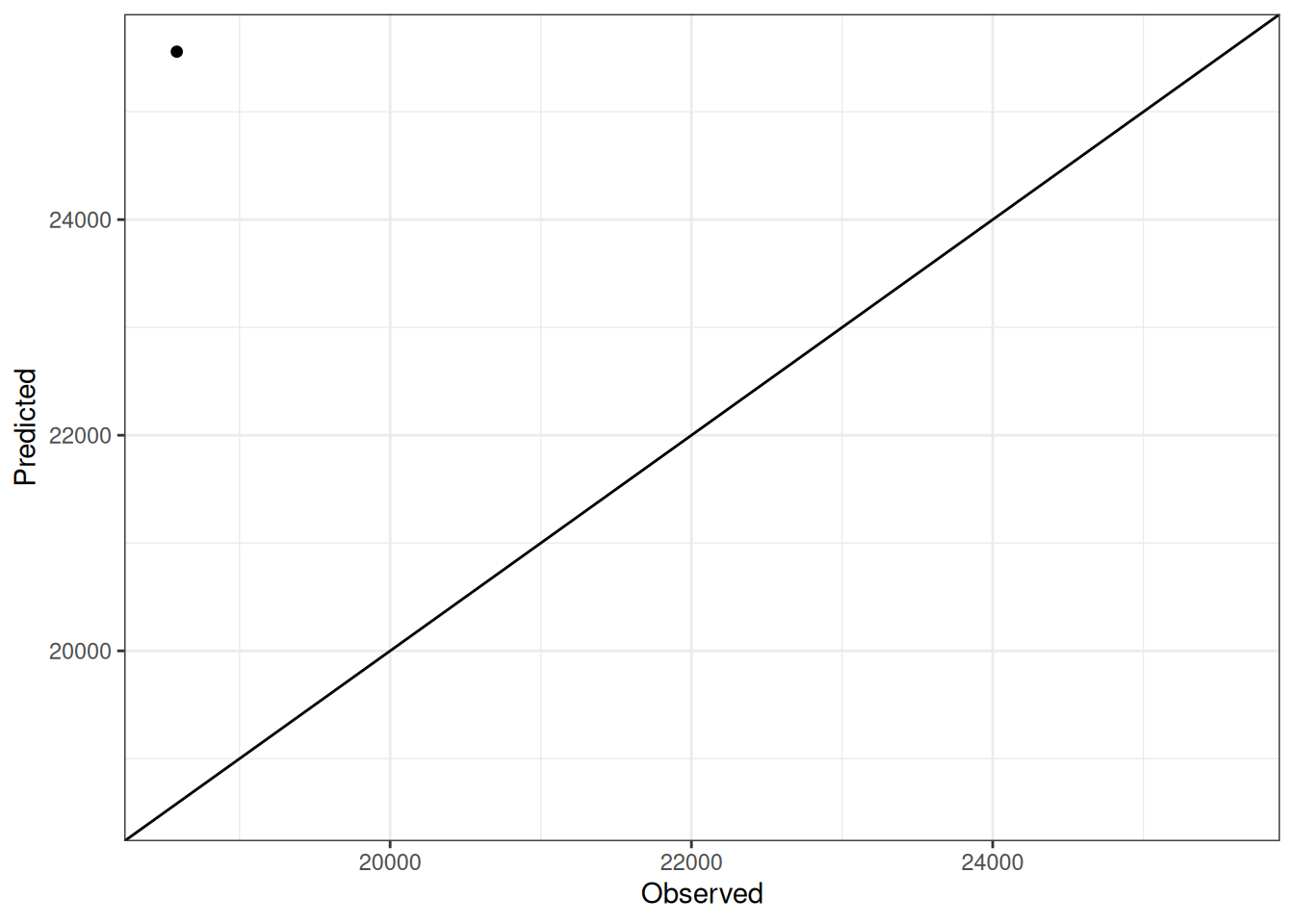

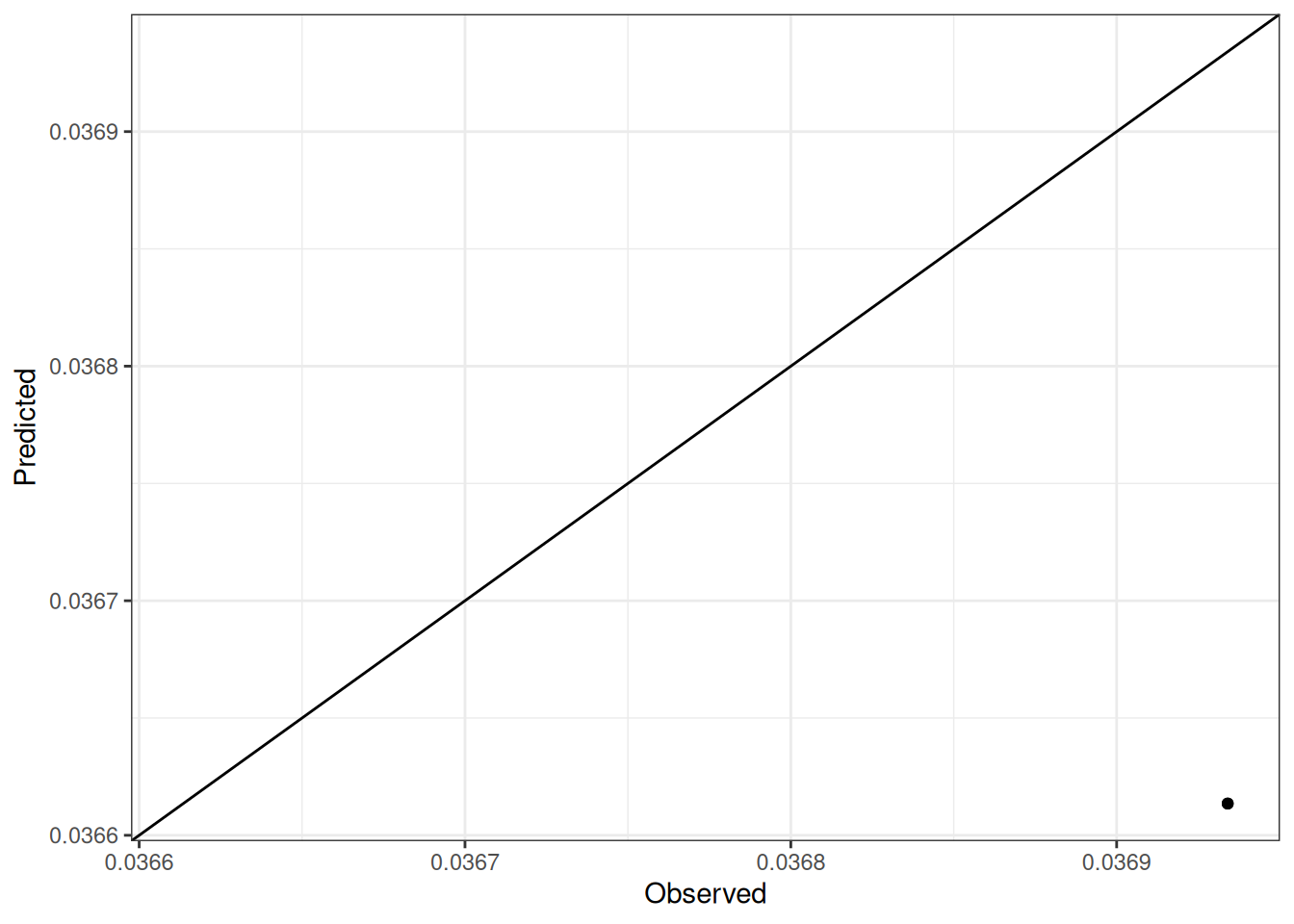

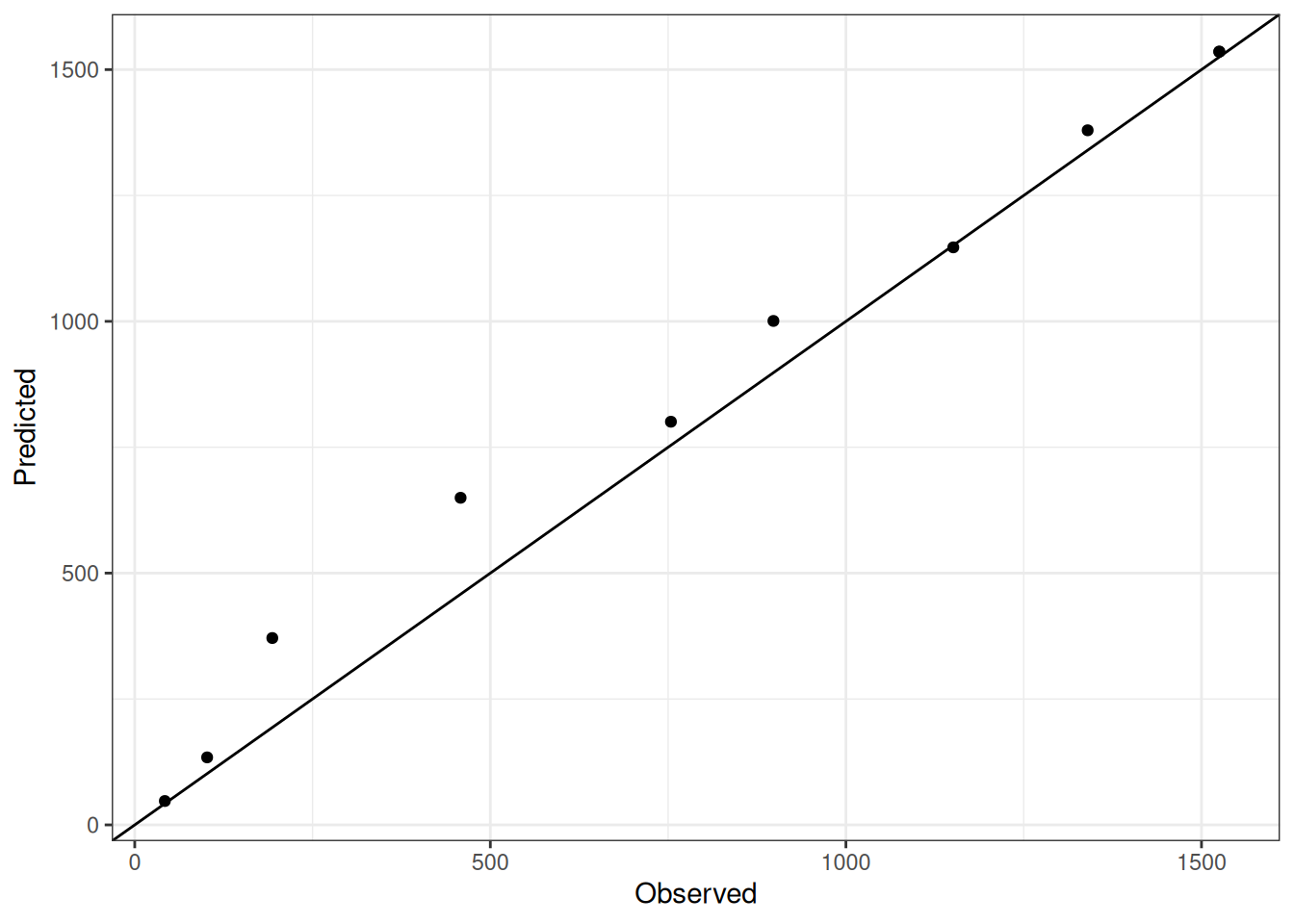

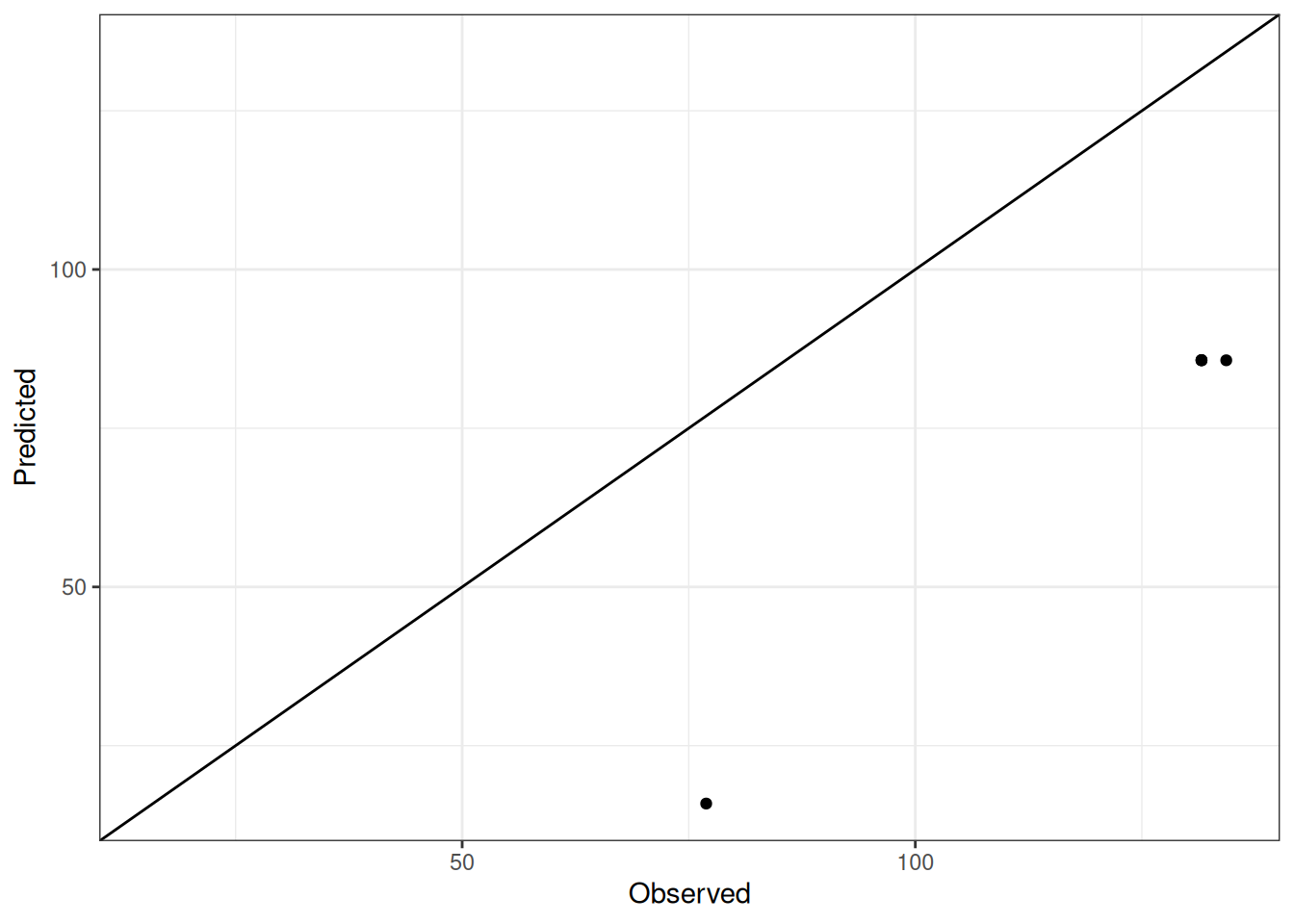

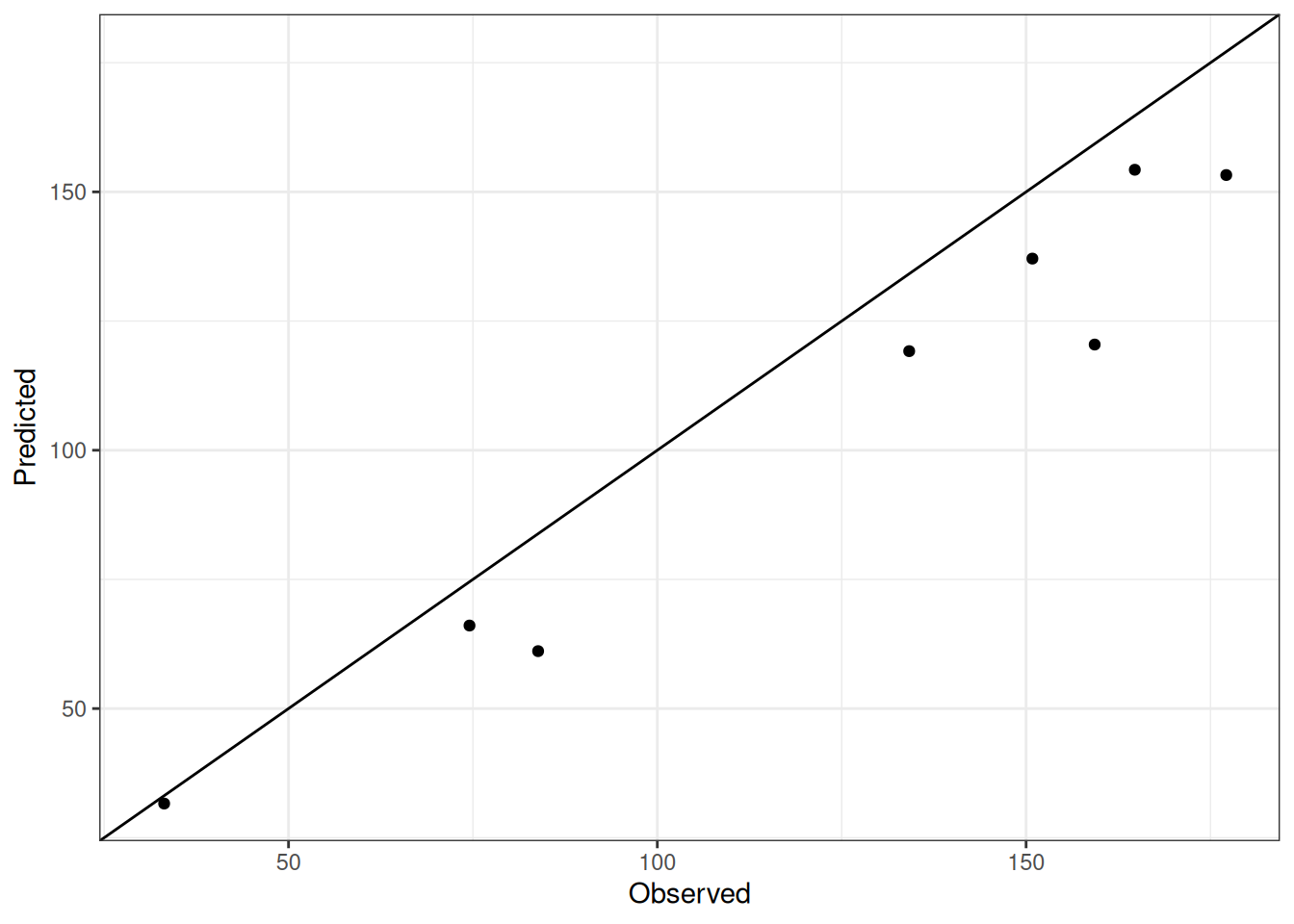

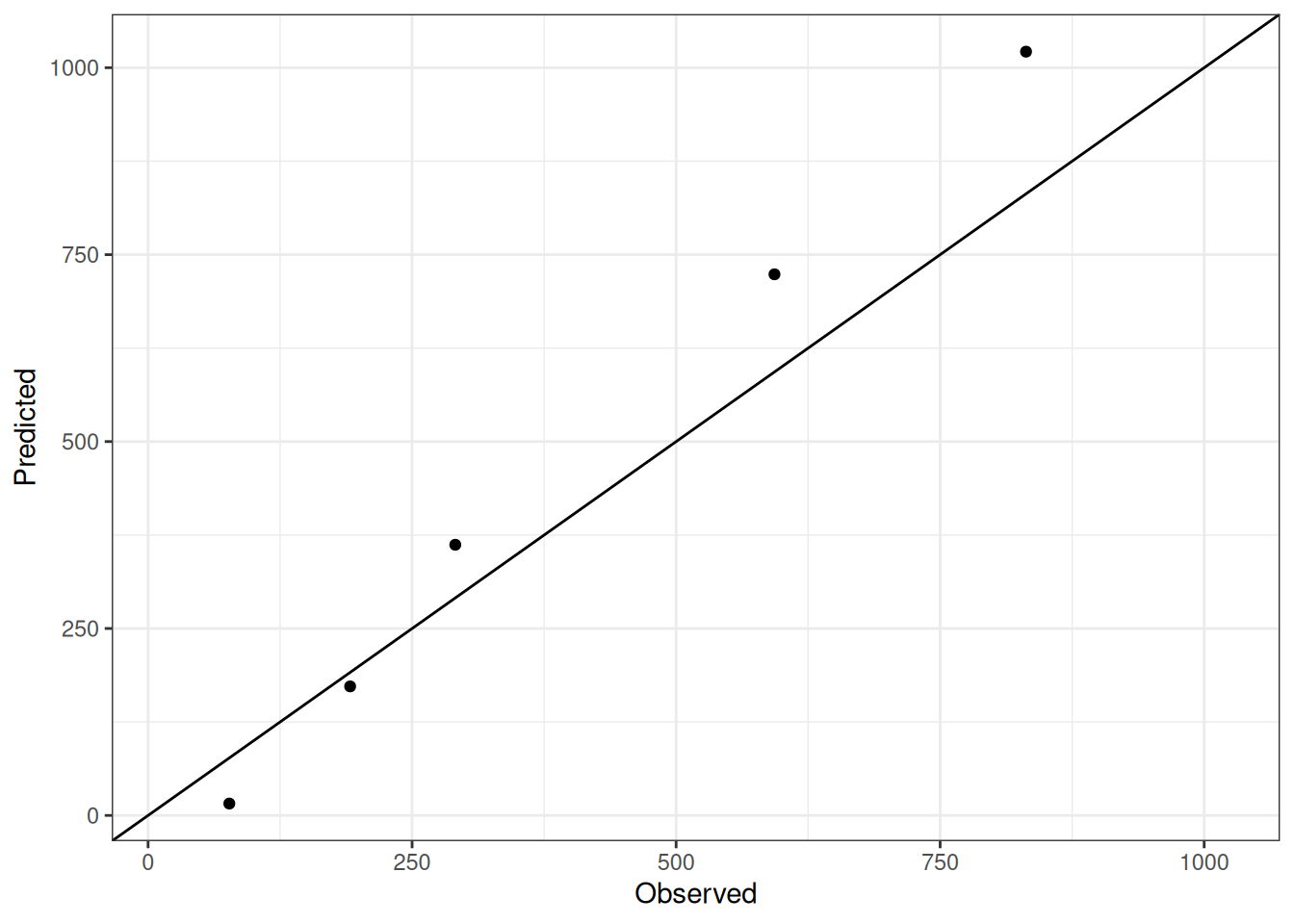

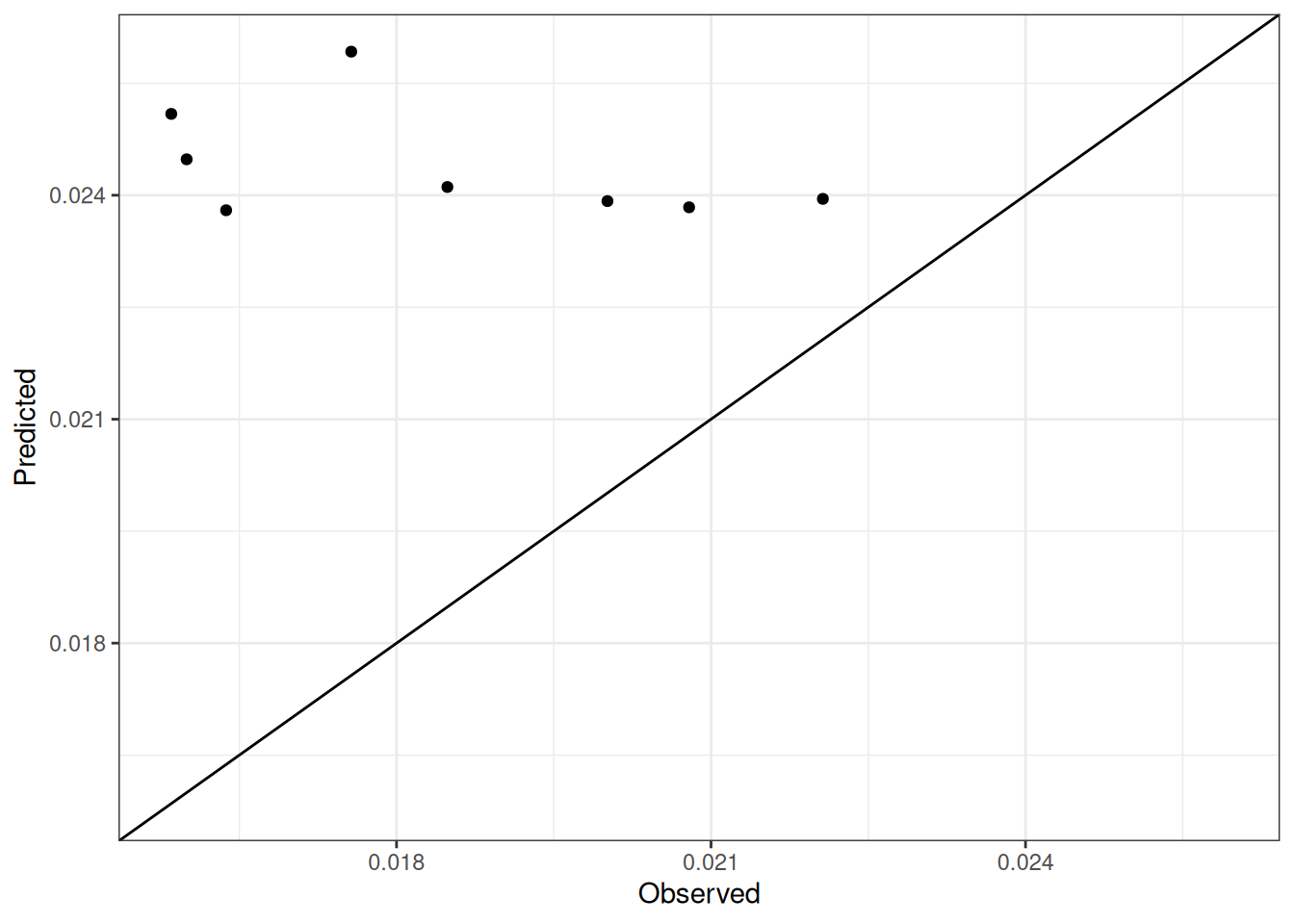

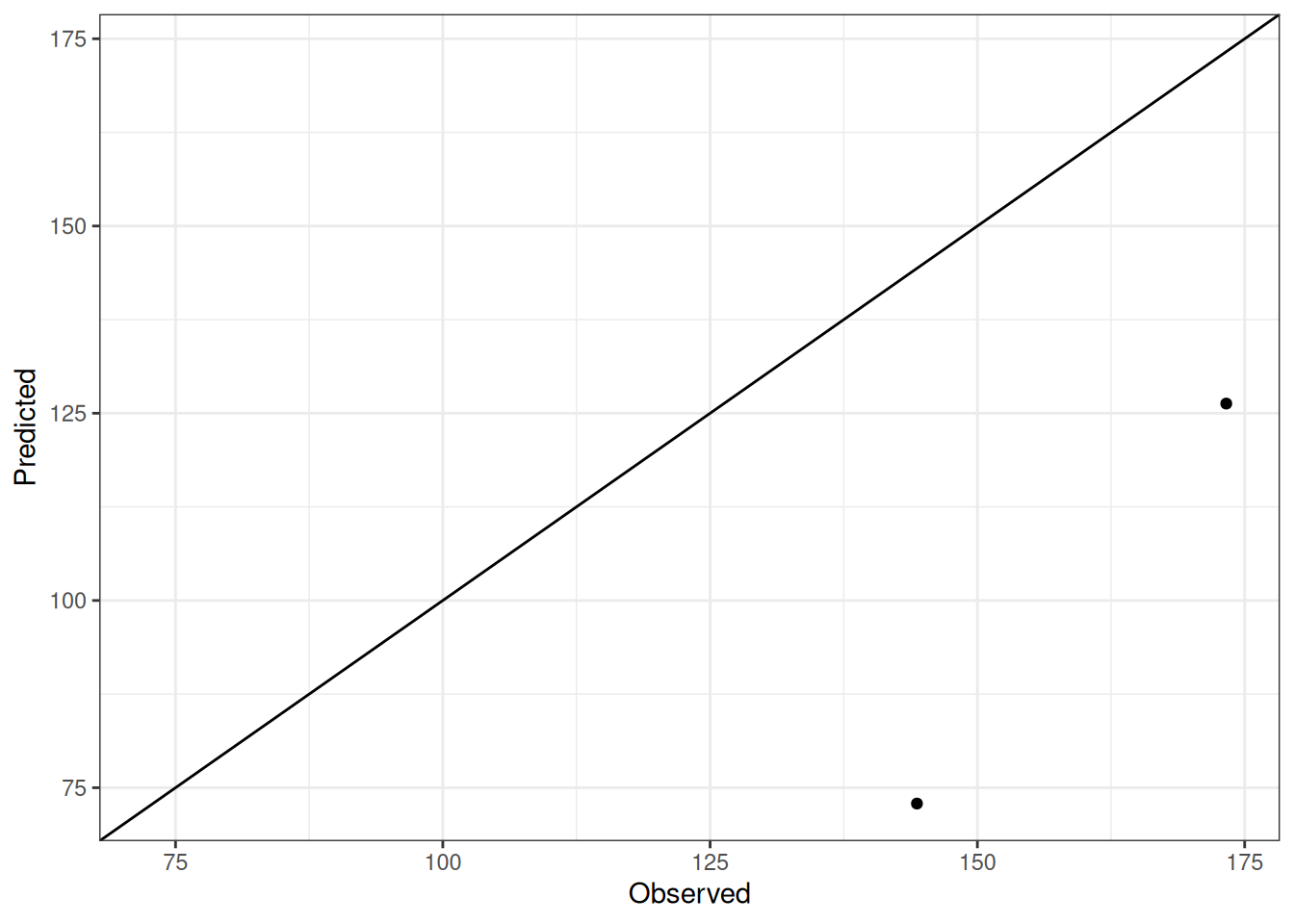

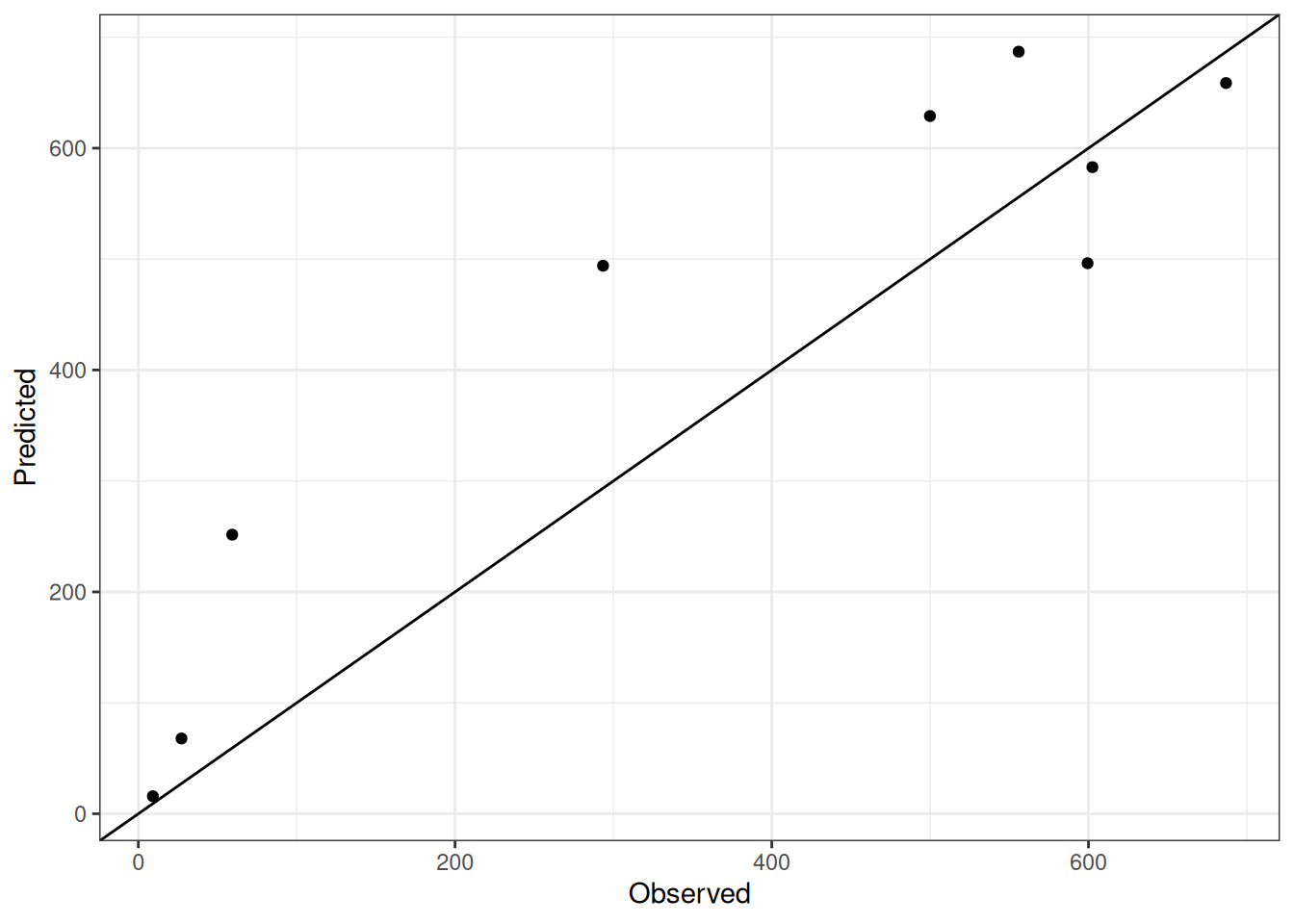

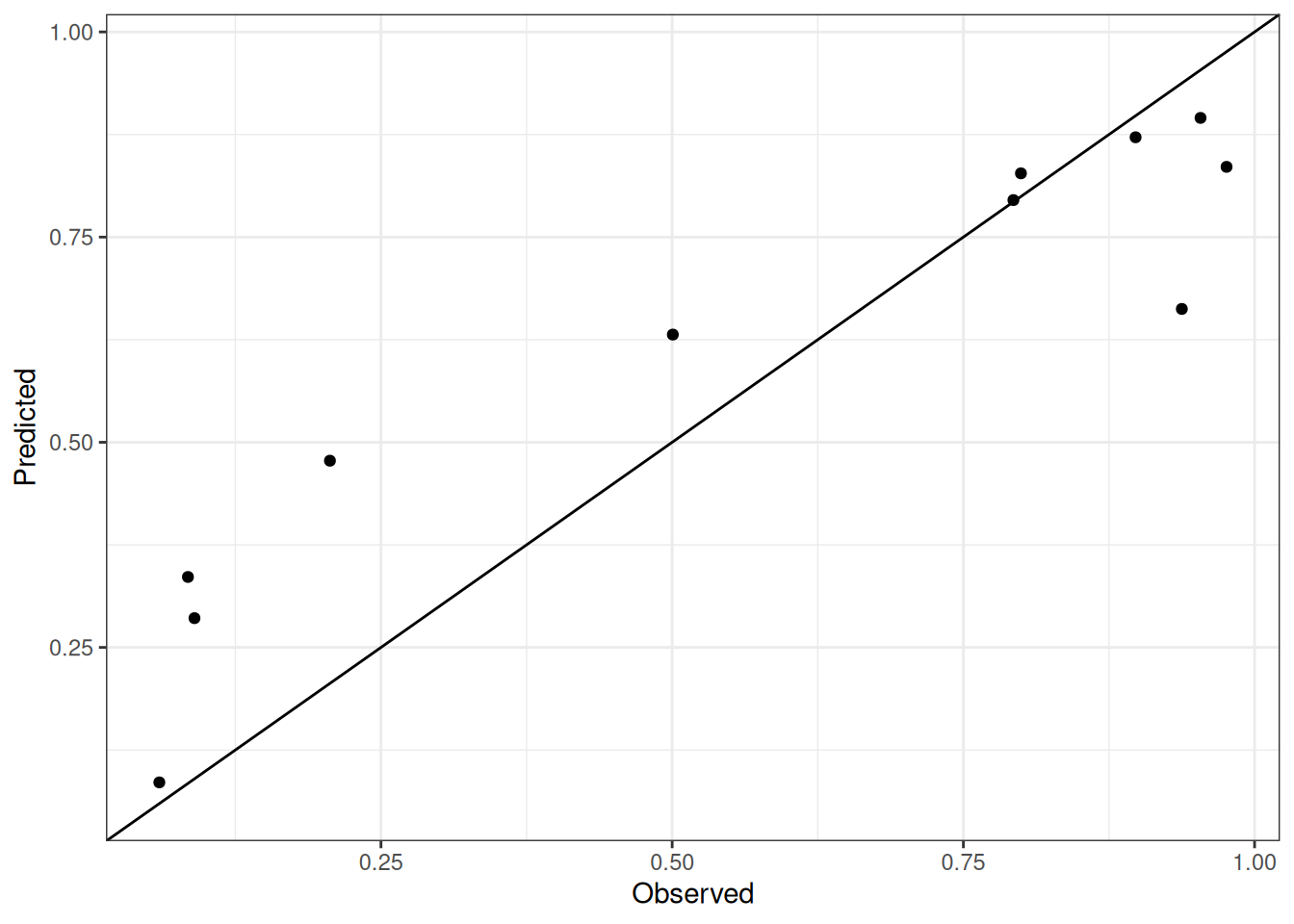

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
