44Y89_CL

This report is generated for performance of Canola model in APSIM NG for cultivar 44Y89_CL.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for 44Y89_CL
parameter value
[Phenology].Vegetative.Target.XYPairs.X 0,20
[Phenology].Vegetative.Target.XYPairs.Y 380,280
[Leaf].Phyllochron.Base.FixedValue 48

Experiments

There are 3 experiments which tested cultivar 44Y89_CL and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar 44Y89_CL across all experiments.

Table 2: Performance summary for cultivar 44Y89_CL
trait n r r2 bias mse rmse nrmse d
Leaf.TrueLeafNumber 69 0.95 0.90 -0.15 0.58 0.76 0.26 0.97
Phenology.EmergenceDAS 15 0.88 0.78 0.60 2.07 1.44 0.15 0.93
Phenology.FloralInitiationDAS 14 0.87 0.76 0.79 25.21 5.02 0.13 0.92
Phenology.GreenBudDAS 15 0.91 0.82 -1.27 102.73 10.14 0.18 0.90
Phenology.StartFloweringDAS 13 0.98 0.95 -1.62 63.77 7.99 0.09 0.98

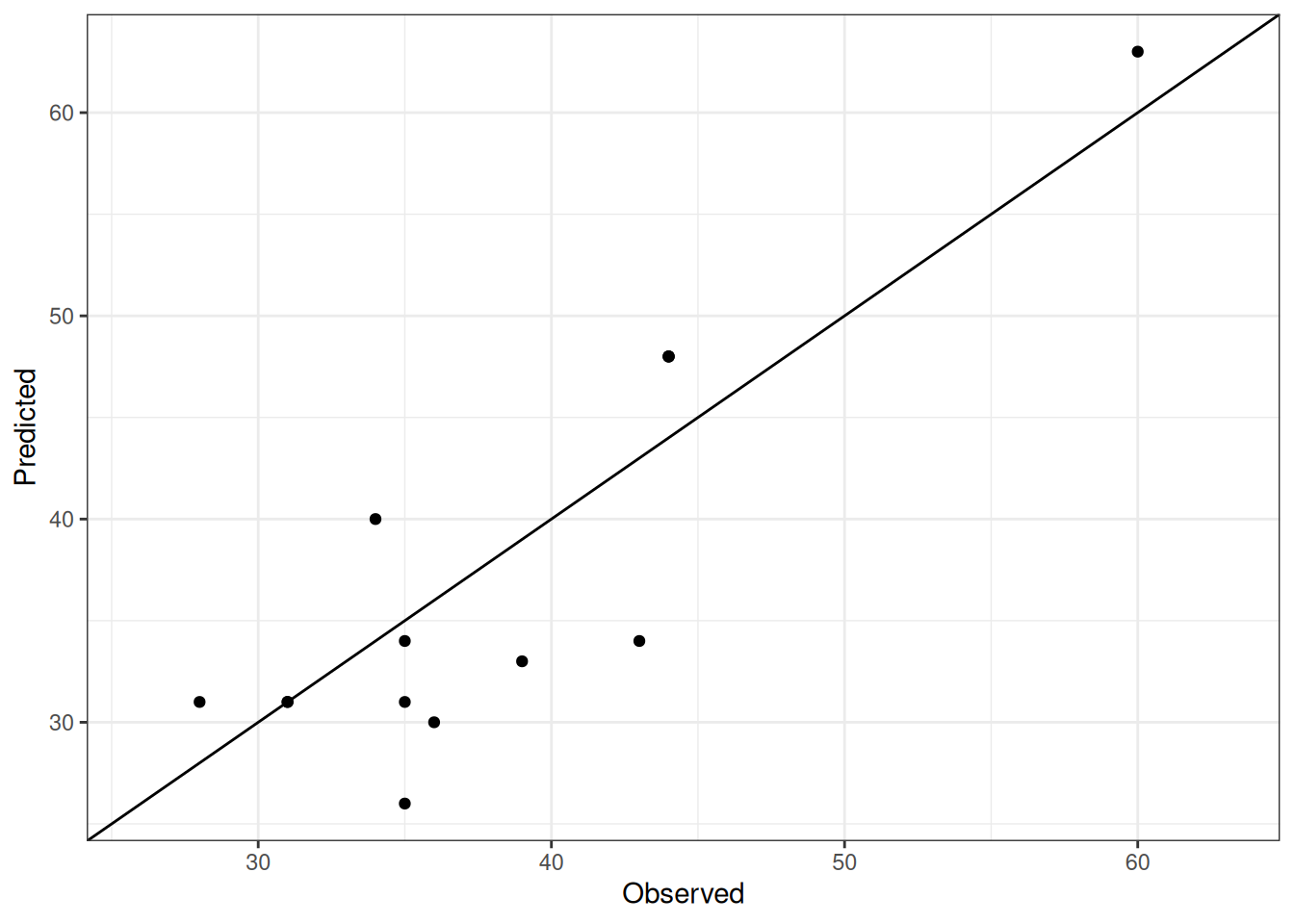

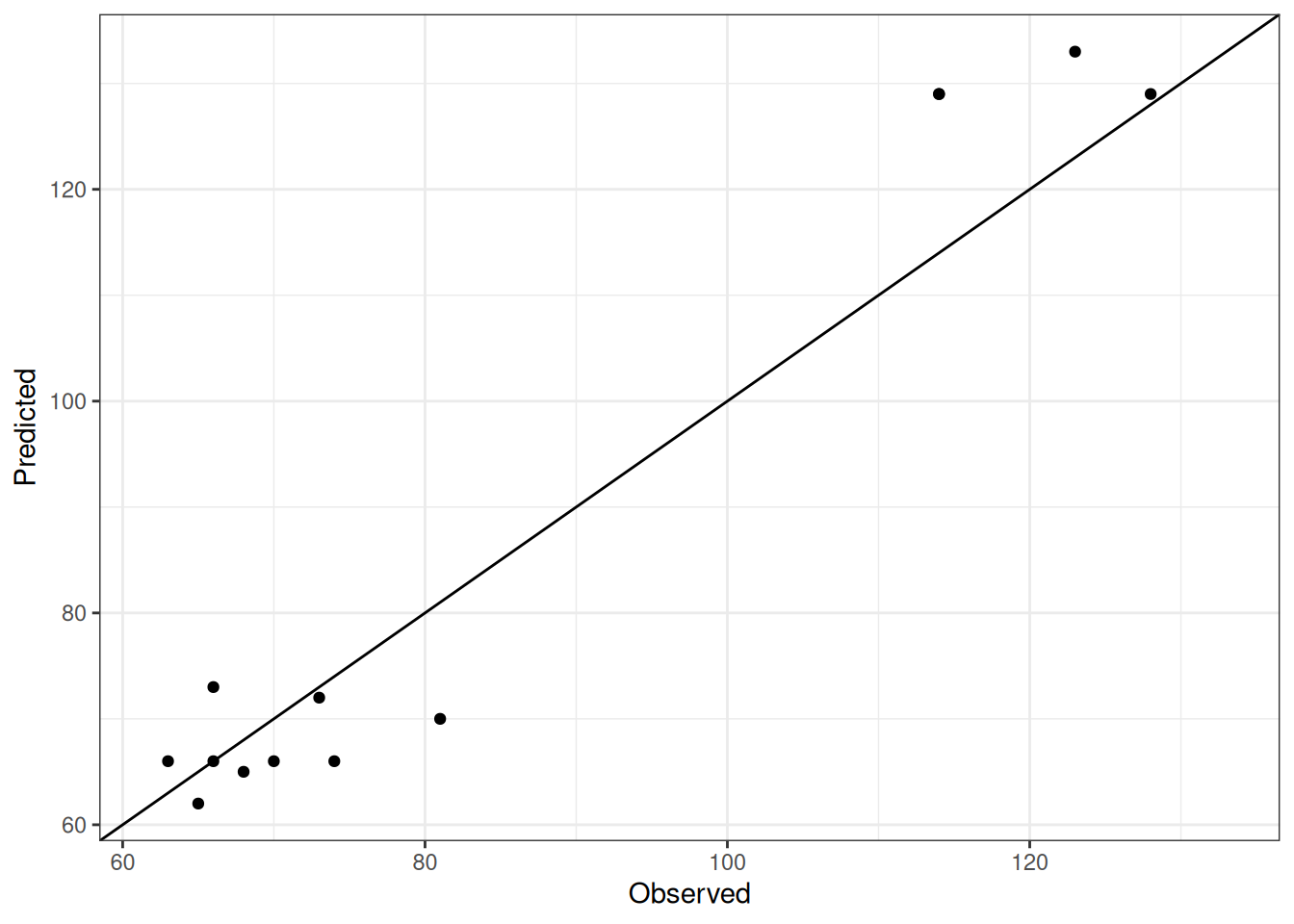

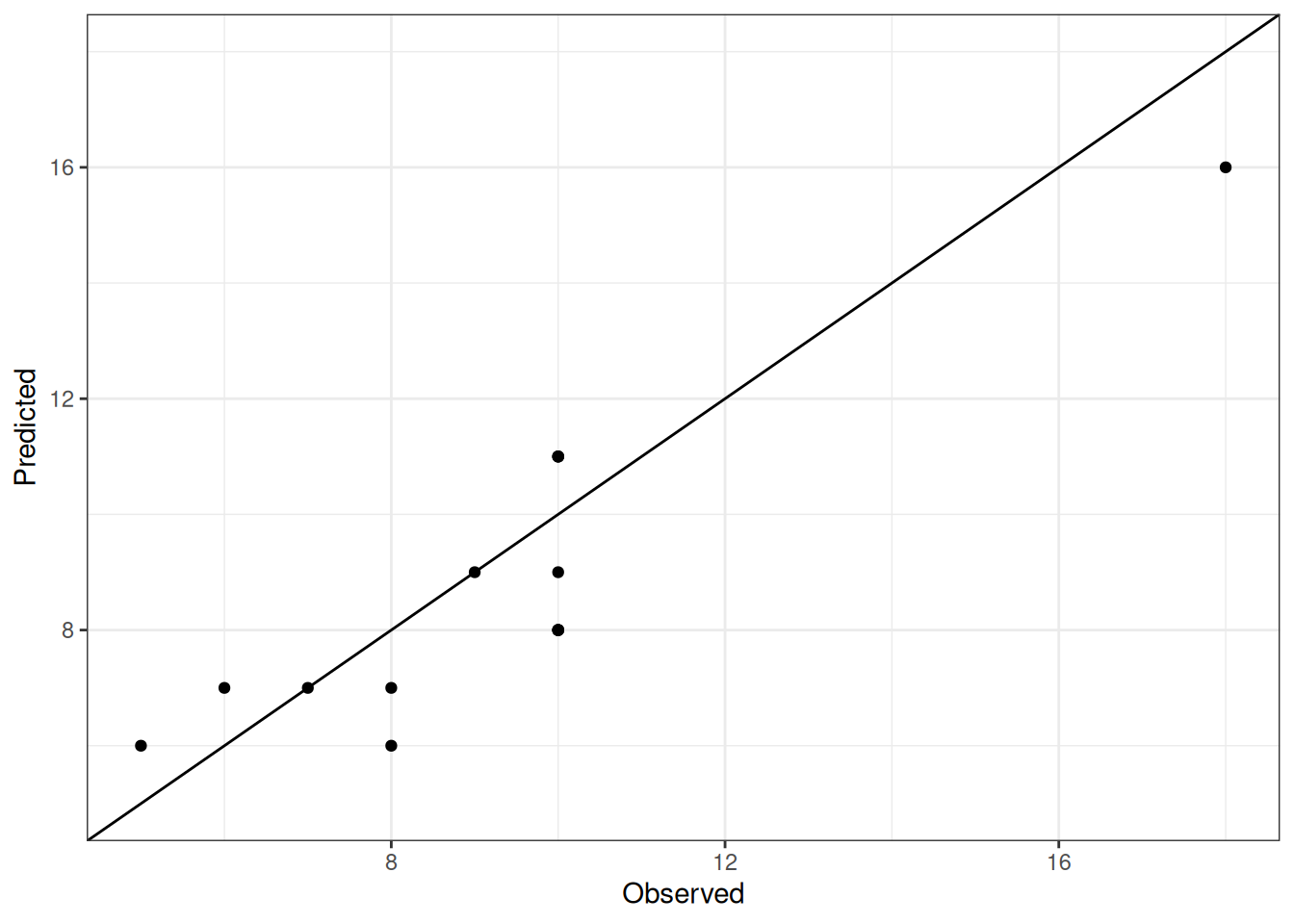

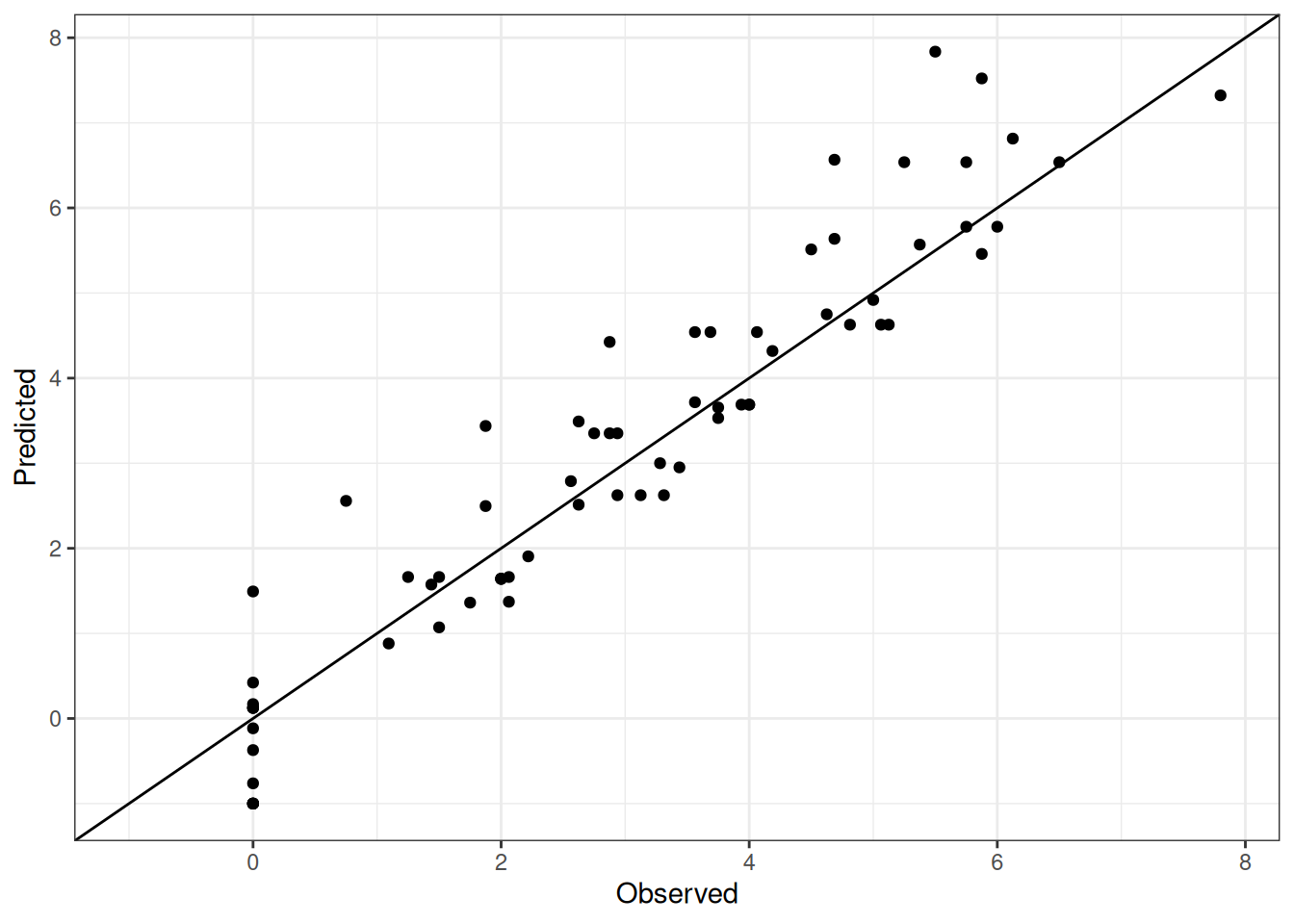

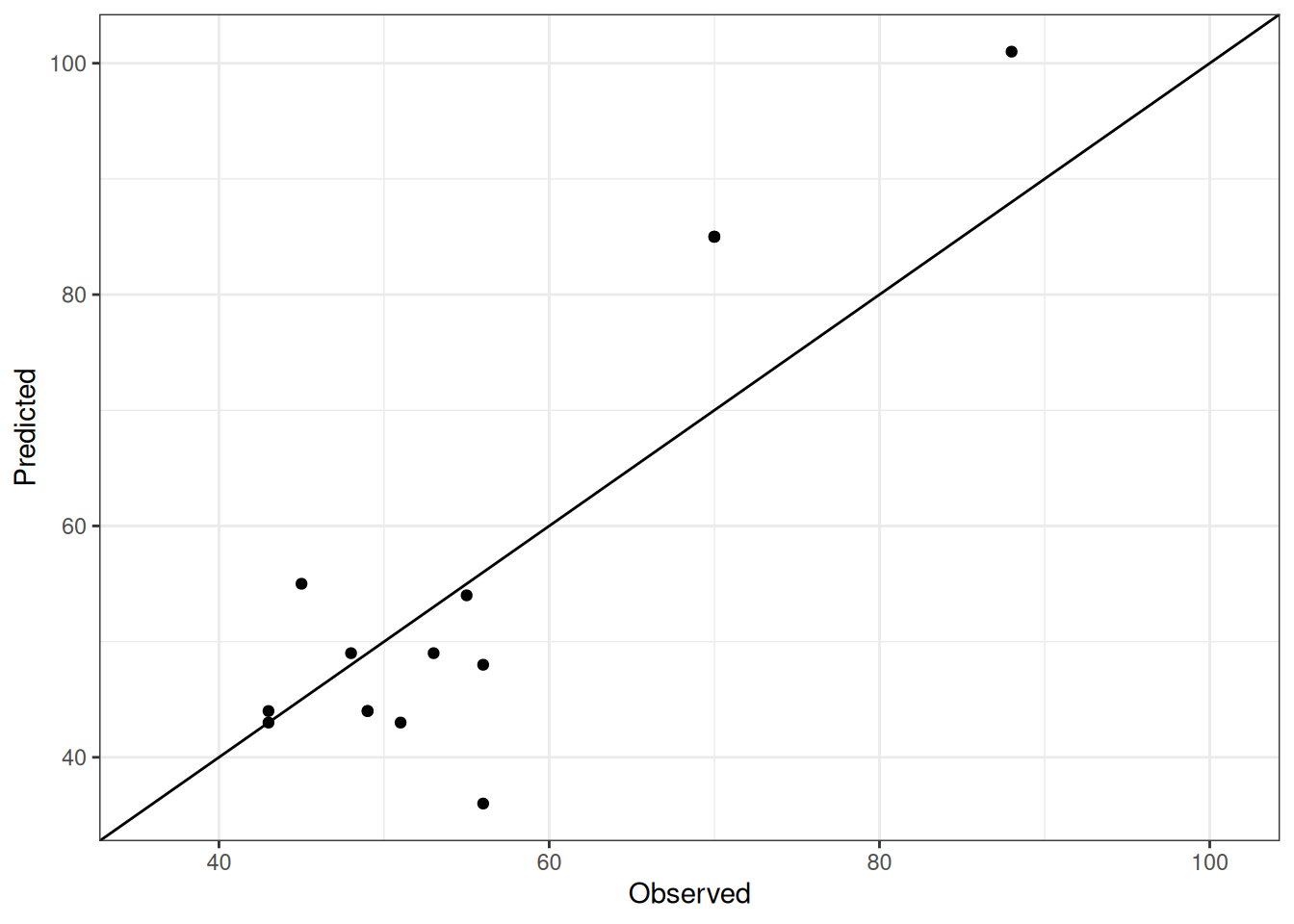

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
