44Y90_CL

This report is generated for performance of Canola model in APSIM NG for cultivar 44Y90_CL.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for 44Y90_CL
parameter value
[Phenology].Vegetative.Target.XYPairs.X 0,20
[Phenology].Vegetative.Target.XYPairs.Y 300,250
[Leaf].Phyllochron.Base.FixedValue 48

Experiments

There are 2 experiments which tested cultivar 44Y90_CL and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar 44Y90_CL across all experiments.

Table 2: Performance summary for cultivar 44Y90_CL
trait n r r2 bias mse rmse nrmse d
Leaf.TrueLeafNumber 38 0.98 0.96 0.76 0.78 0.88 0.35 0.95
Phenology.EmergenceDAS 13 0.83 0.69 -1.00 6.08 2.47 0.24 0.87
Phenology.FloralInitiationDAS 7 0.76 0.58 2.29 12.57 3.55 0.11 0.81
Phenology.GreenBudDAS 13 0.87 0.75 -12.08 489.77 22.13 0.37 0.77
Phenology.StartFloweringDAS 13 0.99 0.98 -1.62 62.69 7.92 0.08 0.99

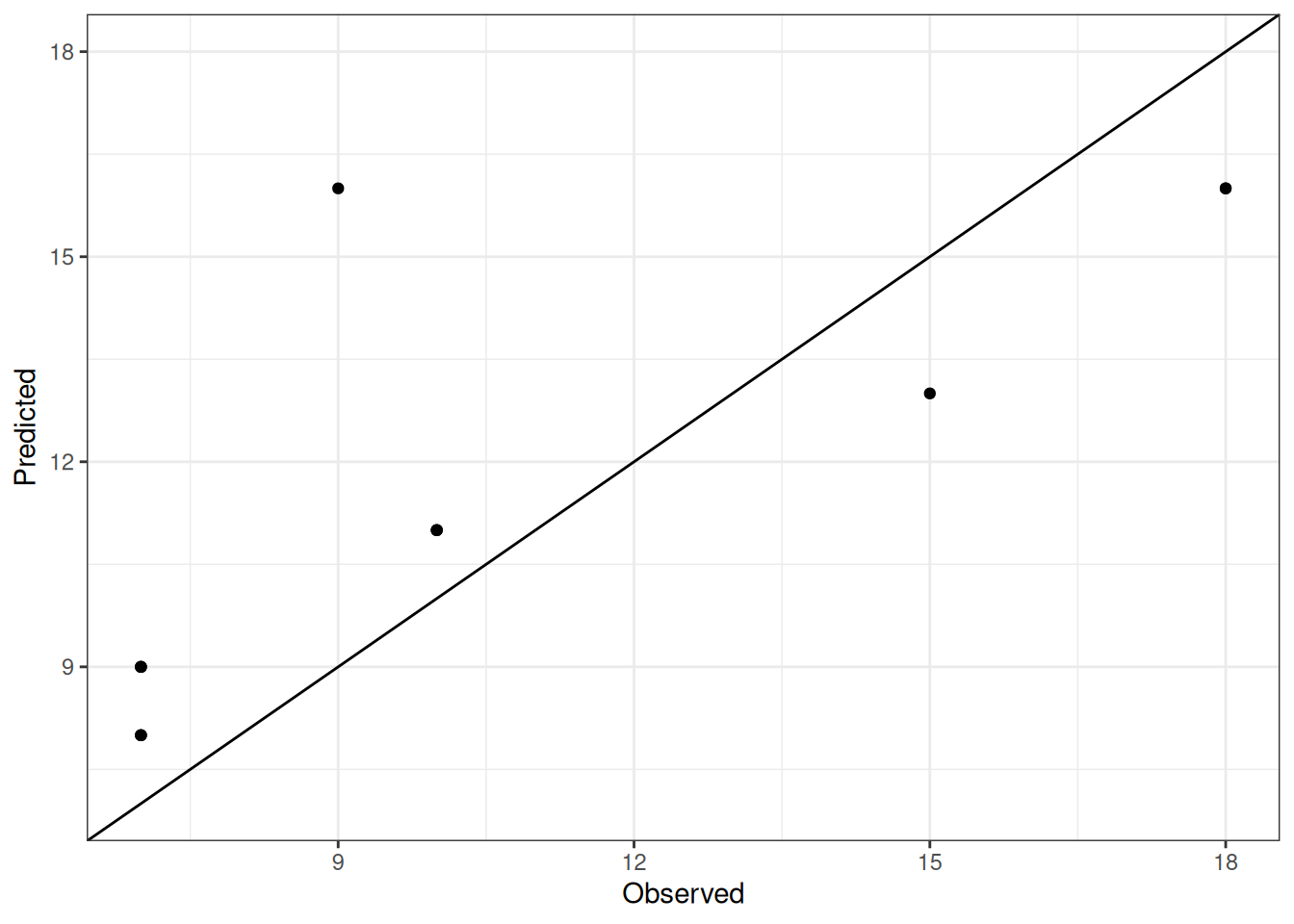

Observed vs Predicted plots for different traits.

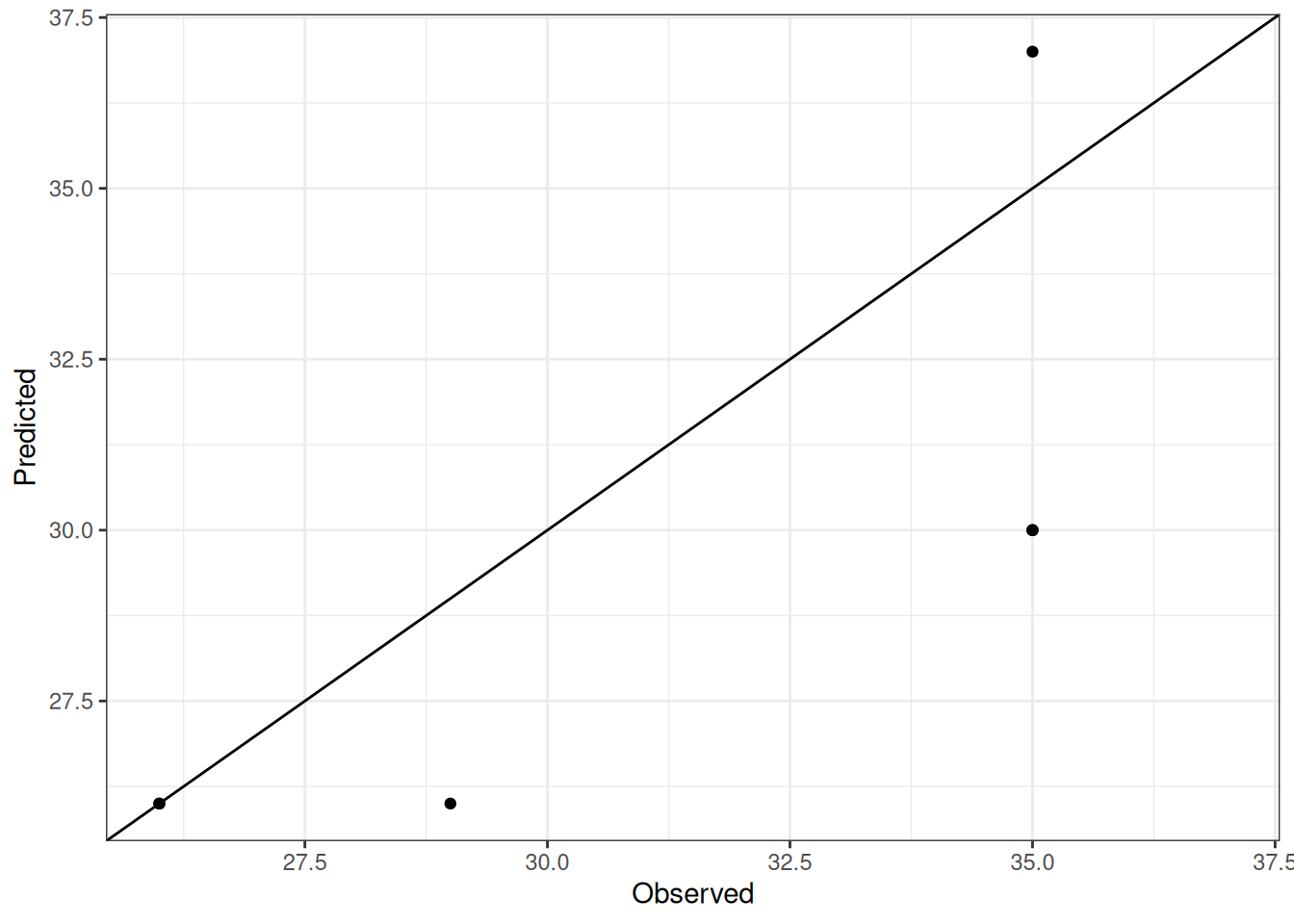

Observed vs Predicted plots for different traits.

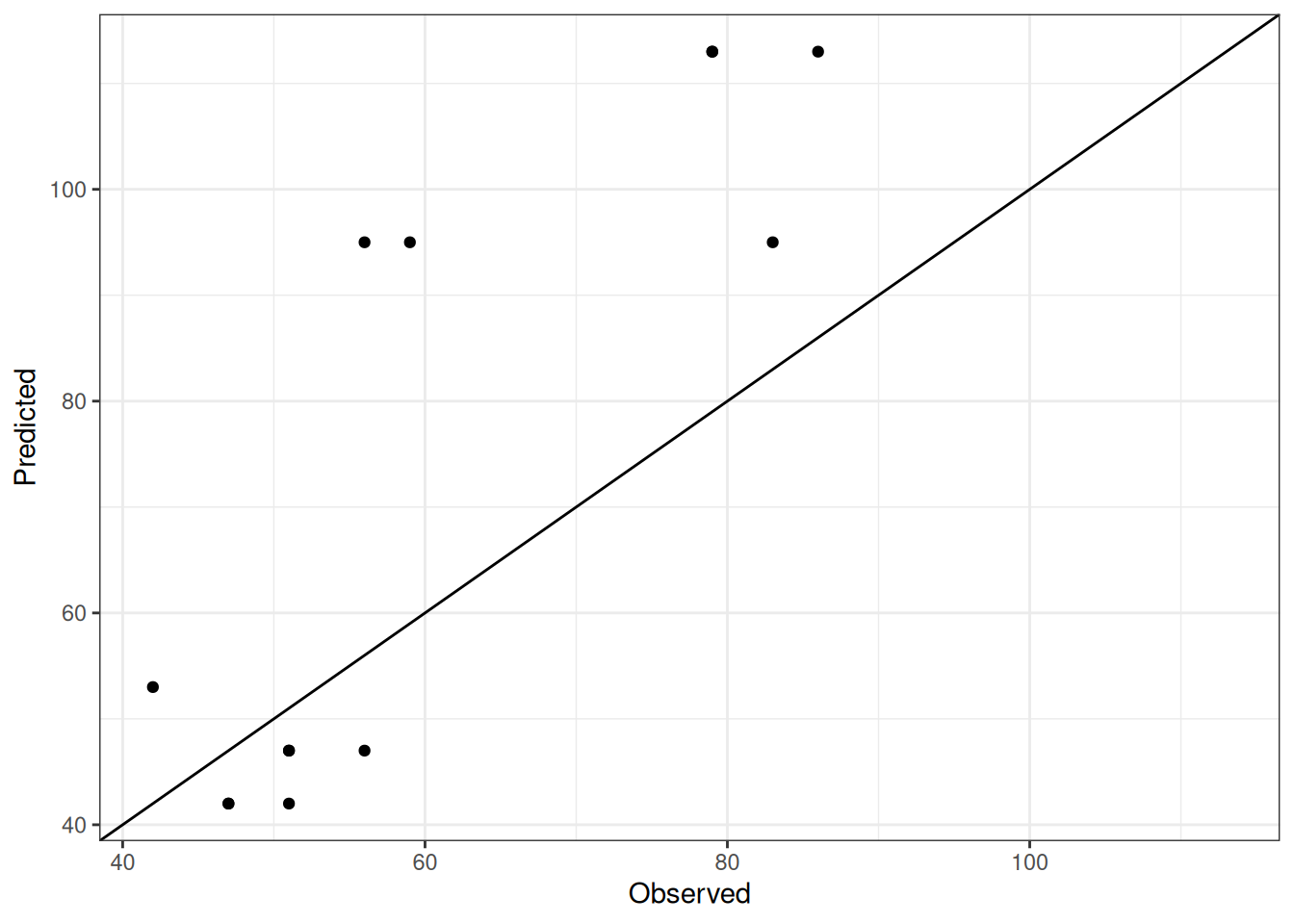

Observed vs Predicted plots for different traits.

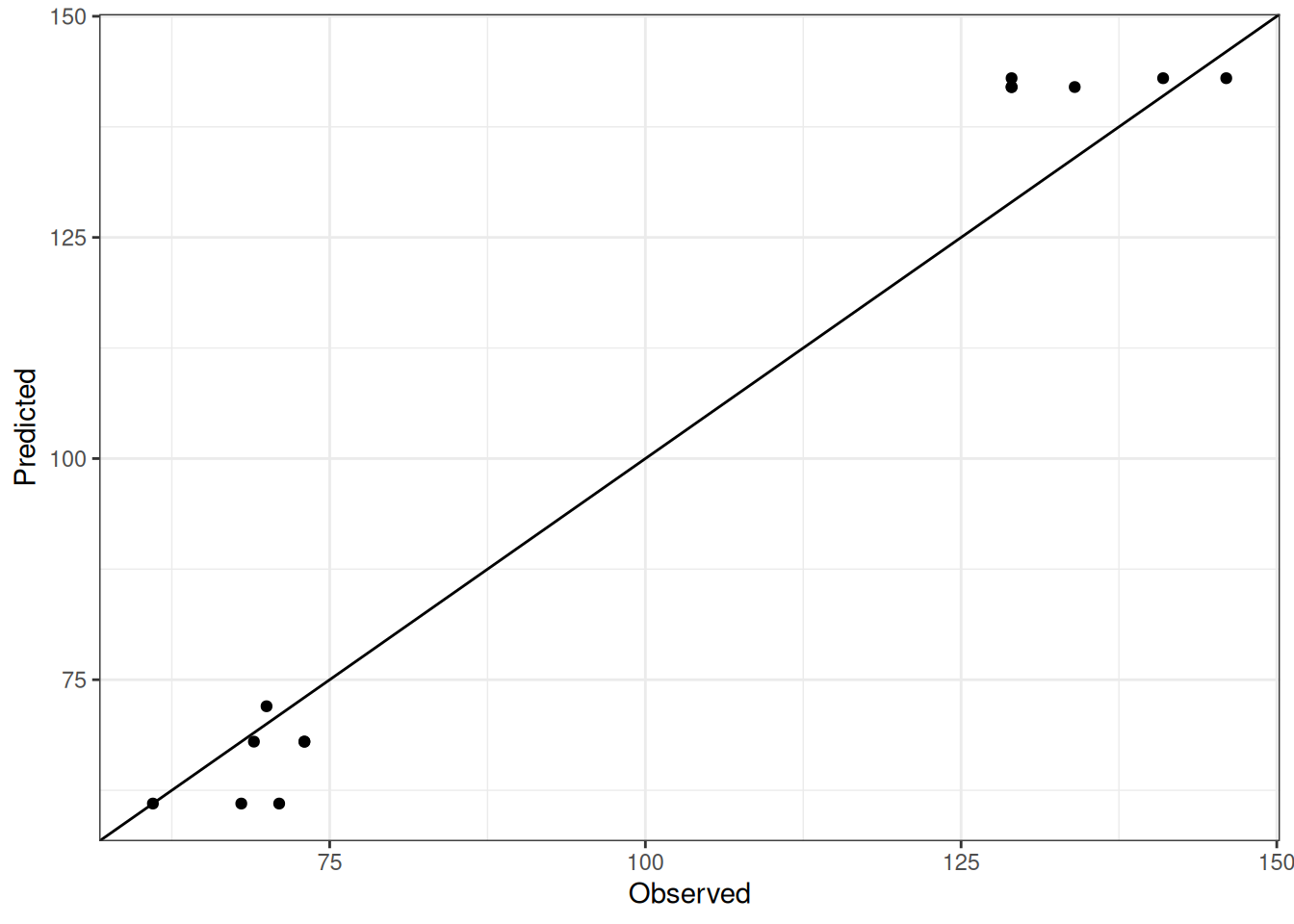

Observed vs Predicted plots for different traits.

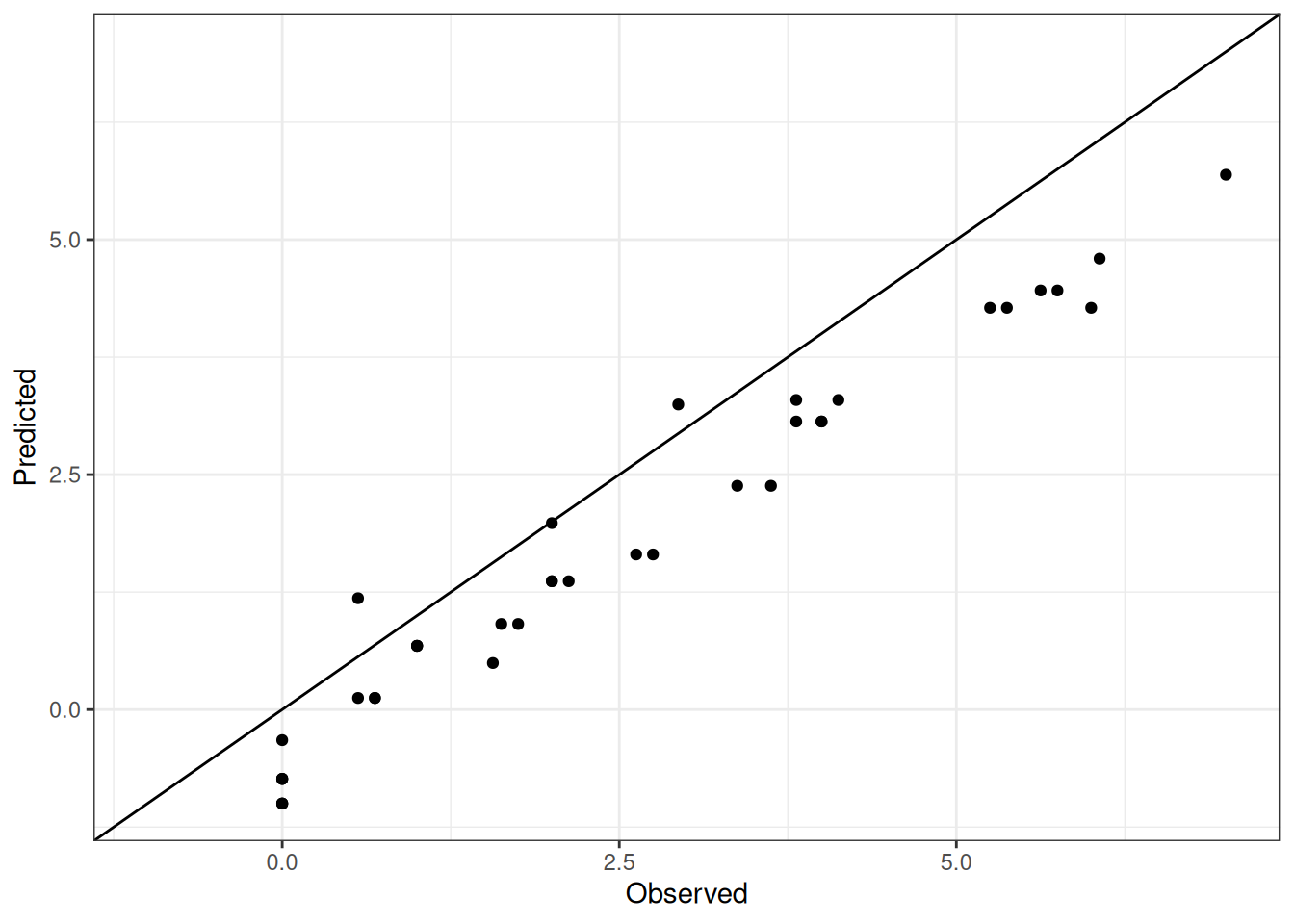

Observed vs Predicted plots for different traits.
