Monty

This report is generated for performance of Canola model in APSIM NG for cultivar Monty.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Monty
parameter value
[Phenology].Vegetative.Target.XYPairs.X 0,20
[Phenology].Vegetative.Target.XYPairs.Y 305,205
[Leaf].Phyllochron.Base.FixedValue 50

Experiments

There are 5 experiments which tested cultivar Monty and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Monty across all experiments.

Table 2: Performance summary for cultivar Monty
trait n r r2 bias mse rmse nrmse d
Leaf.NodeNumber 83 NA NA NA NA NA NA NA
Leaf.TrueLeafNumber 83 0.86 0.74 -1.06 4.19 2.05 0.67 0.84
Phenology.EmergenceDAS 12 0.83 0.70 2.42 8.92 2.99 0.25 0.72
Phenology.GreenBudDAS 12 0.89 0.78 11.04 190.77 13.81 0.20 0.86
Phenology.StartFloweringDAS 12 0.93 0.86 6.83 128.12 11.32 0.13 0.94

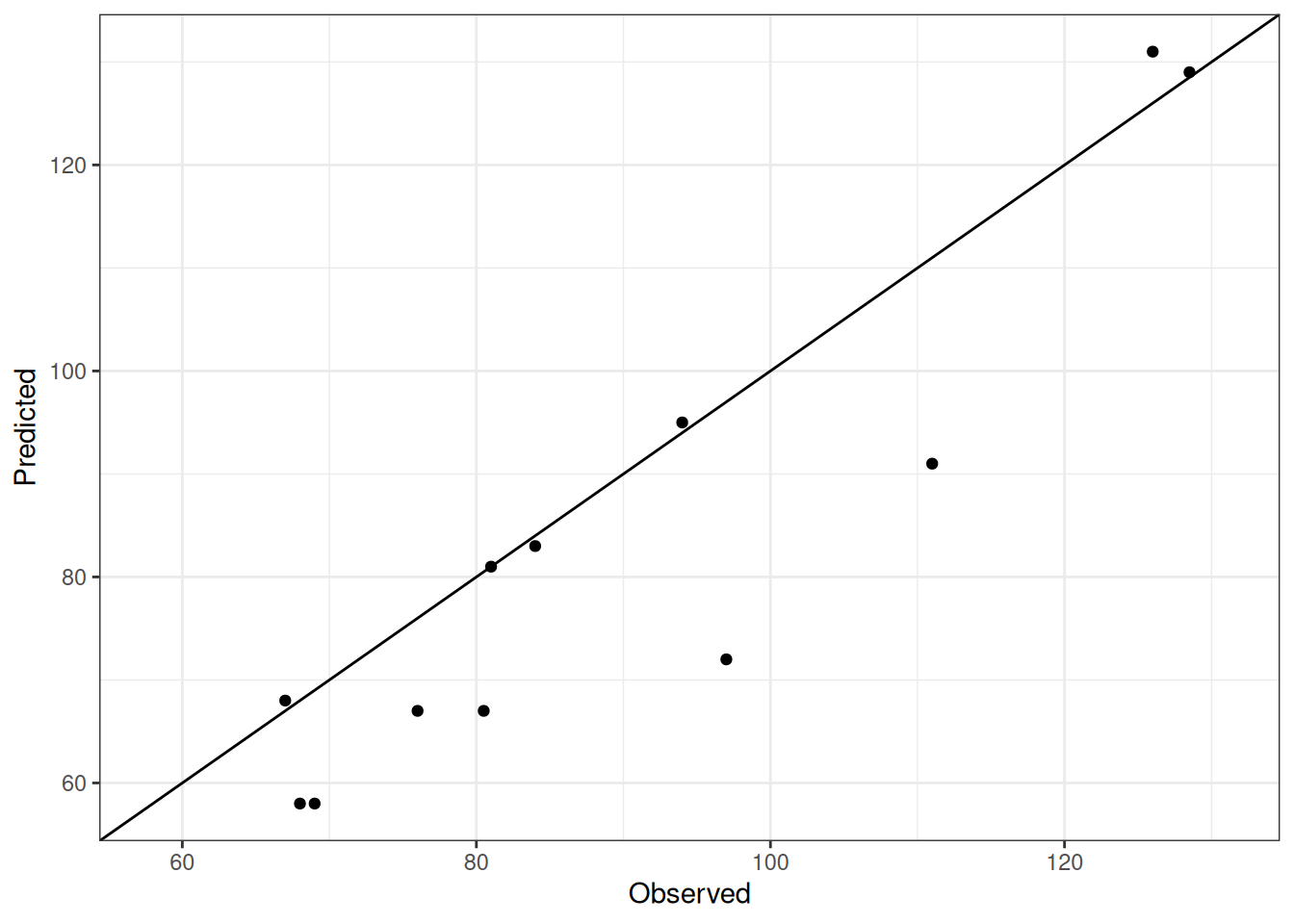

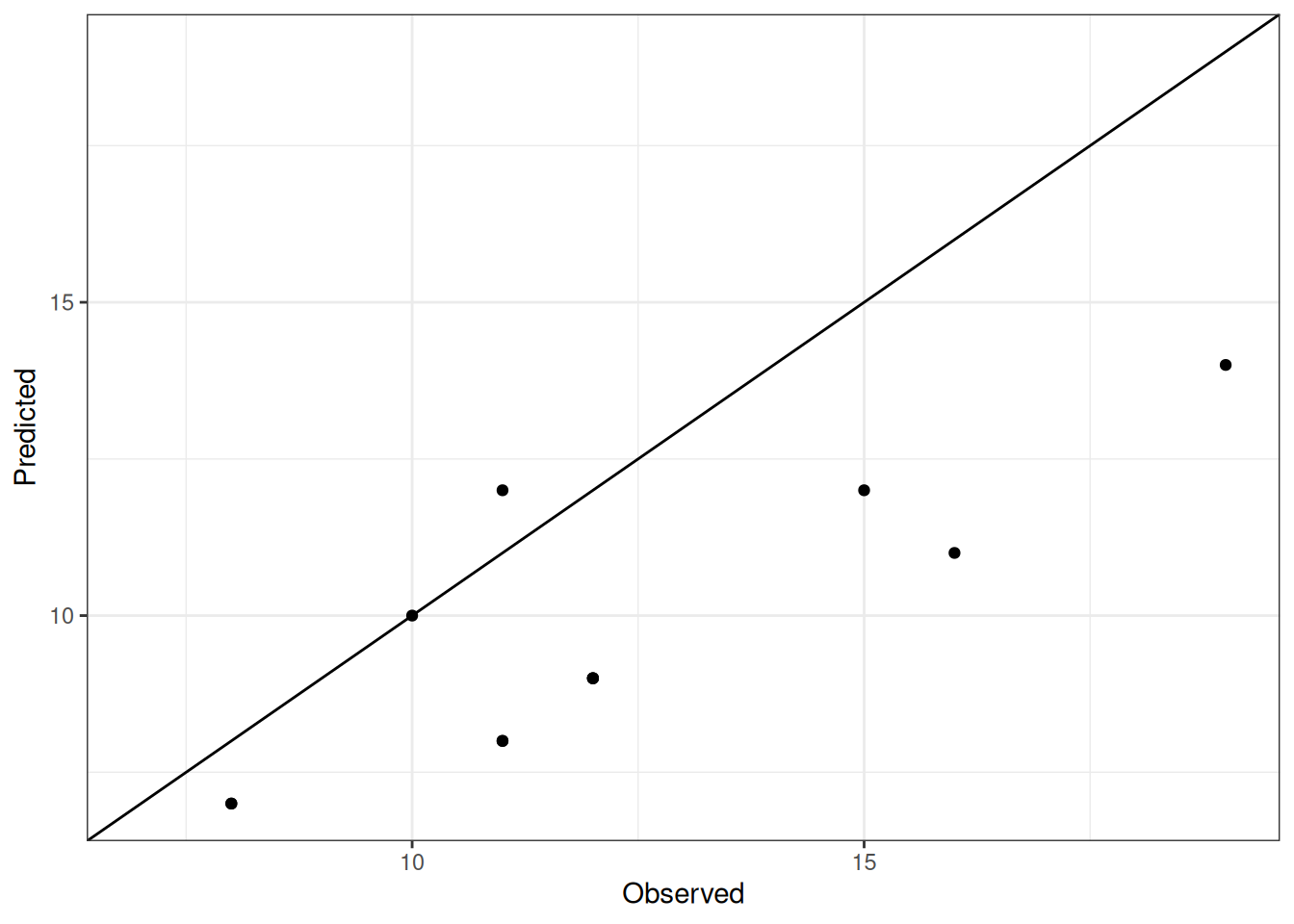

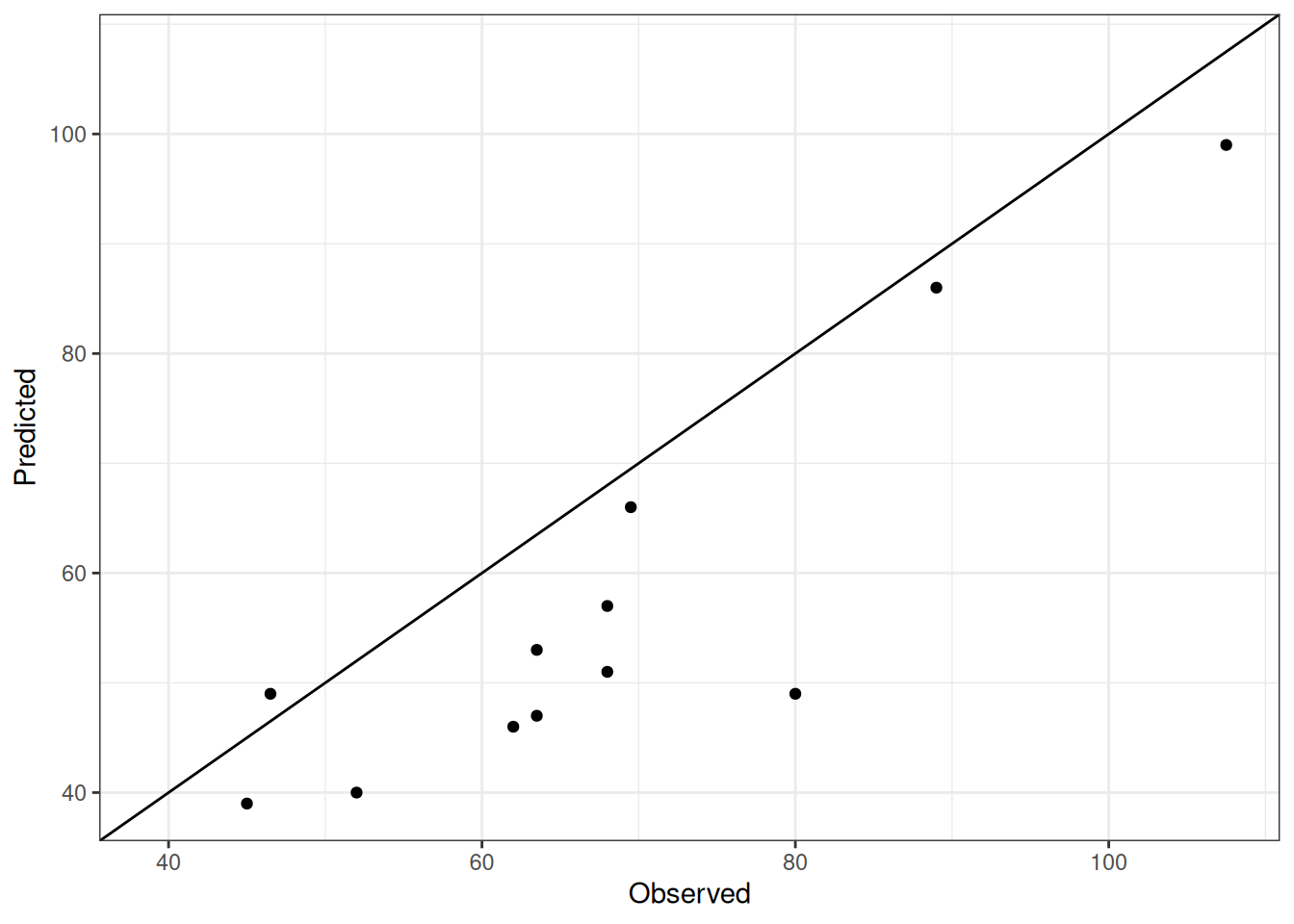

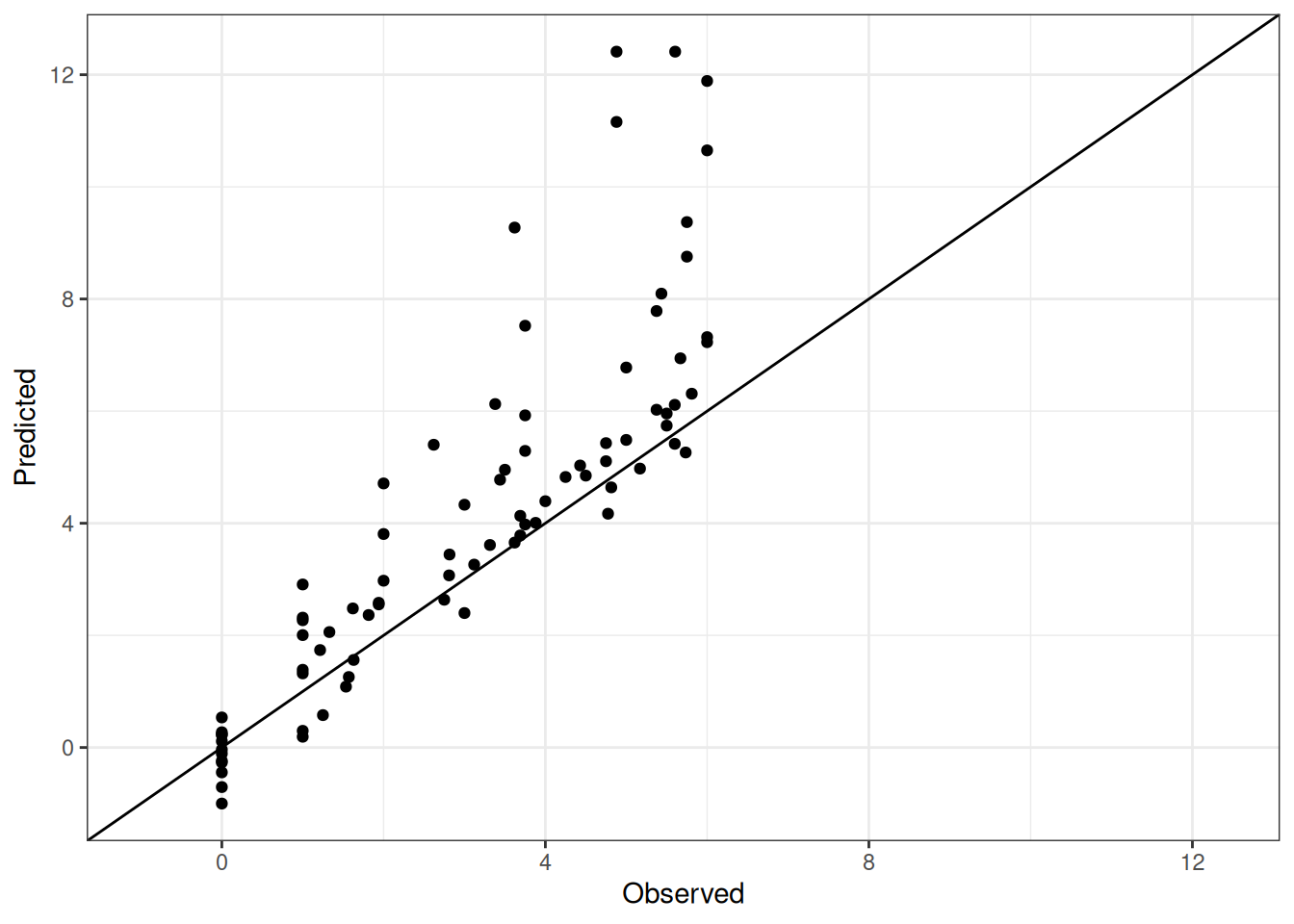

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
