Oscar

This report is generated for performance of Canola model in APSIM NG for cultivar Oscar.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Oscar
parameter value
[Phenology].Vegetative.Target.XYPairs.X 0,20
[Phenology].Vegetative.Target.XYPairs.Y 470,270
[Leaf].Phyllochron.Base.FixedValue 53

Experiments

There are 8 experiments which tested cultivar Oscar and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Oscar across all experiments.

Table 2: Performance summary for cultivar Oscar
trait n r r2 bias mse rmse nrmse d
Leaf.NodeNumber 65 NA NA NA NA NA NA NA
Leaf.TrueLeafNumber 130 0.90 0.81 -0.01 1.20 1.09 0.37 0.94
Phenology.EmergenceDAS 27 0.84 0.71 1.41 5.11 2.26 0.21 0.84
Phenology.FloralInitiationDAS 14 0.92 0.85 1.57 14.43 3.80 0.09 0.95
Phenology.GreenBudDAS 27 0.68 0.47 10.93 360.56 18.99 0.25 0.77
Phenology.StartFloweringDAS 22 0.91 0.83 6.36 166.36 12.90 0.13 0.93

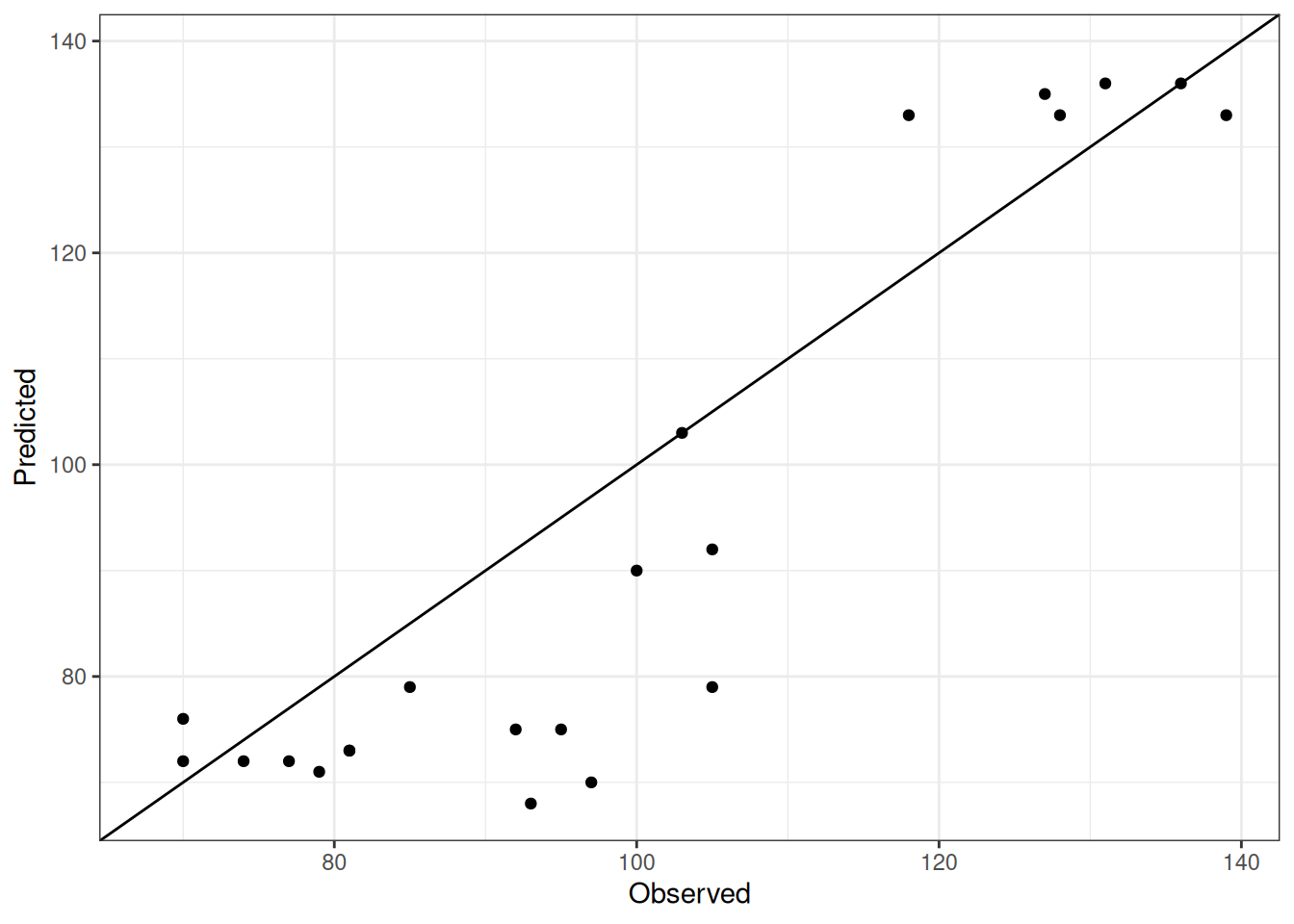

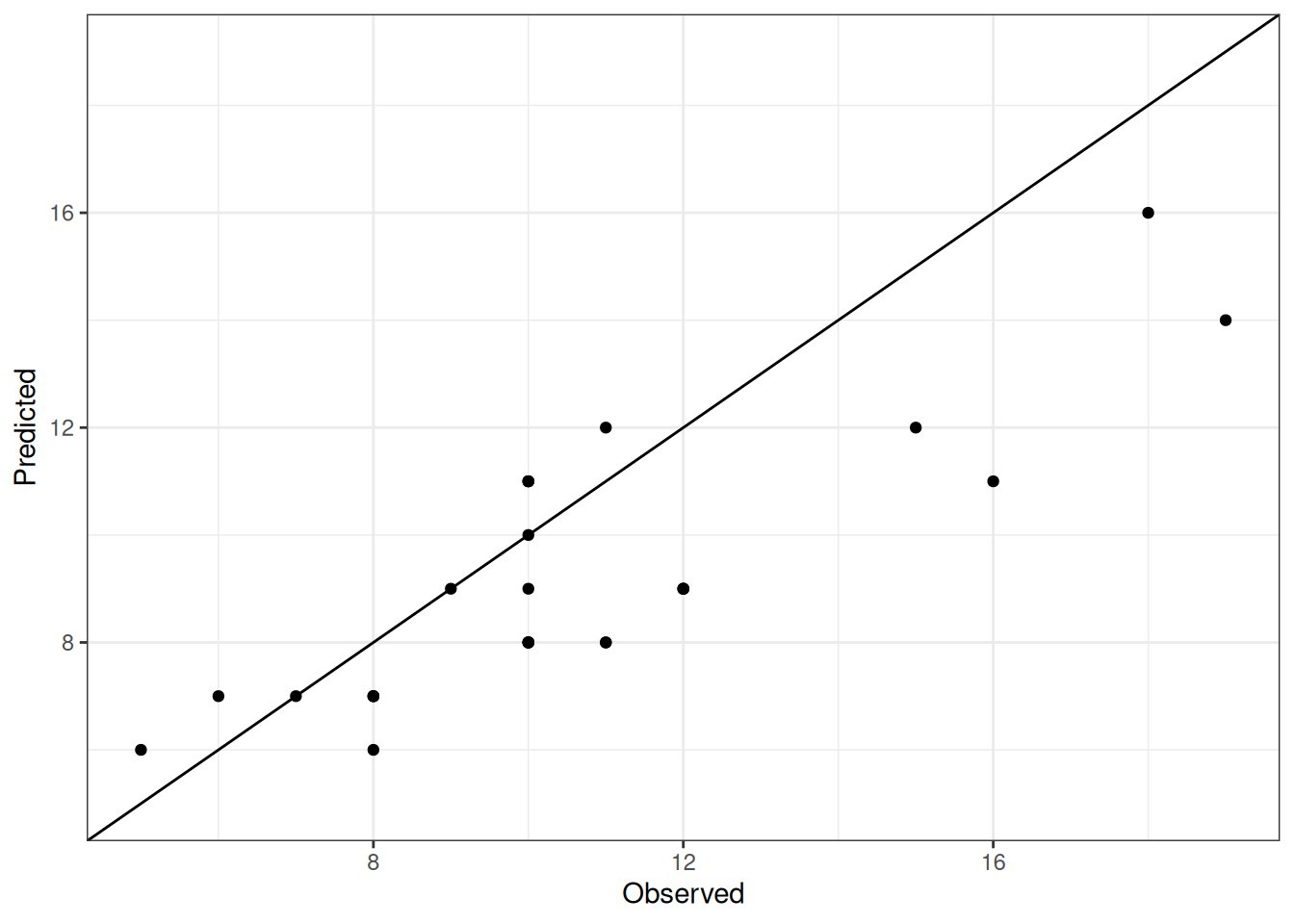

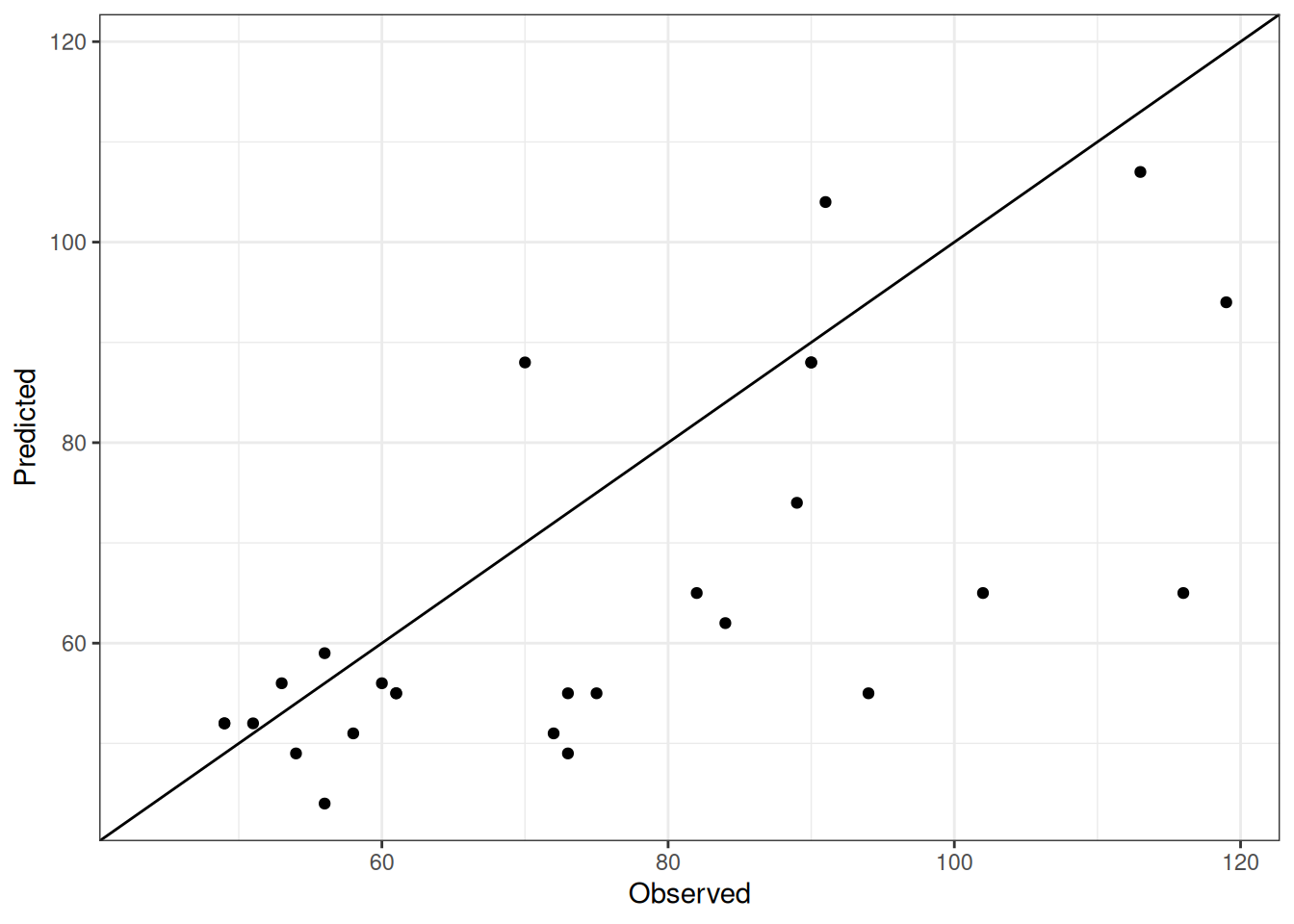

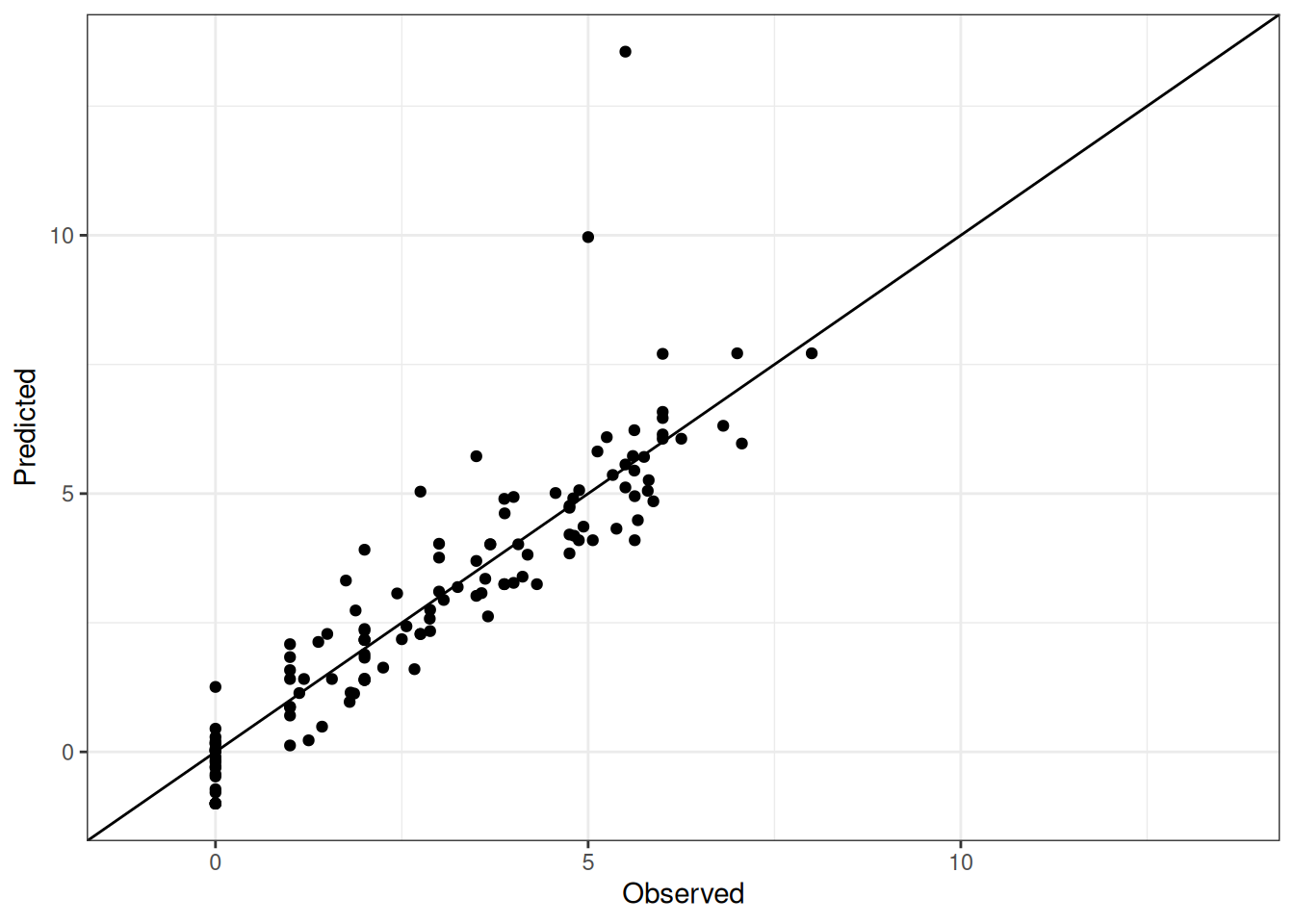

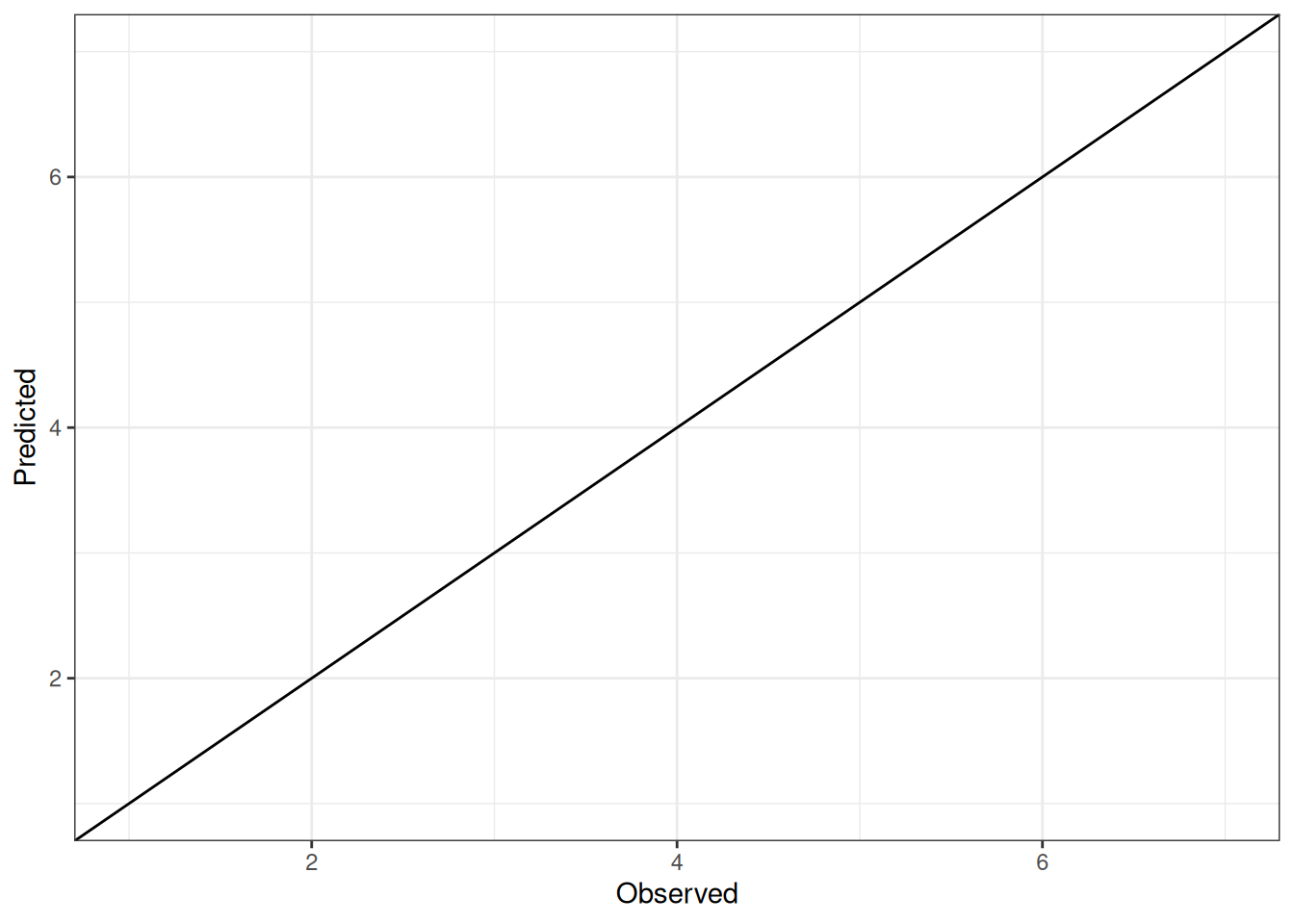

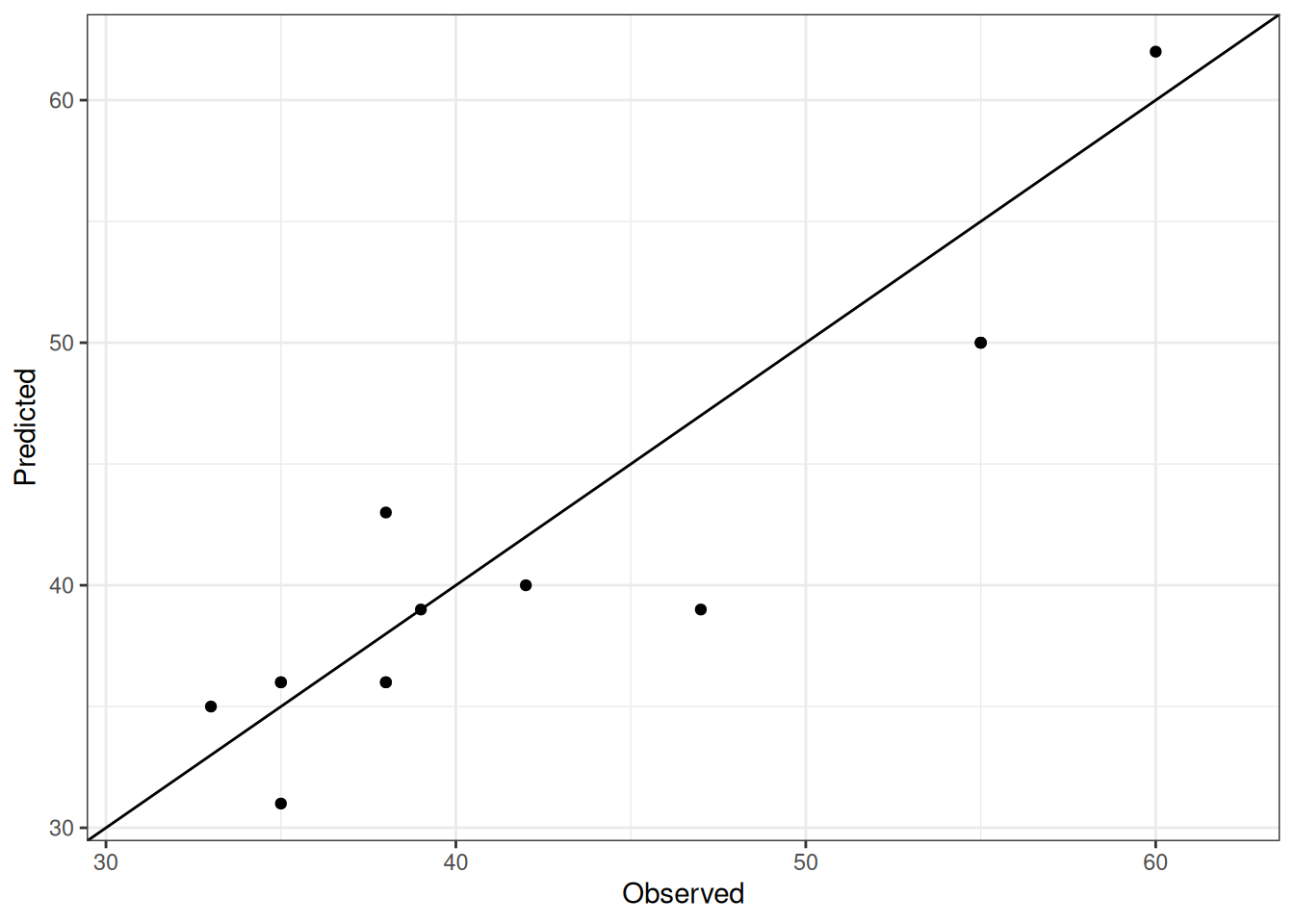

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
