Sensation

This report is generated for performance of Canola model in APSIM NG for cultivar Sensation.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Sensation
parameter value
[Phenology].Vegetative.Target.XYPairs.X 0,30
[Phenology].Vegetative.Target.XYPairs.Y 2200,250
[Leaf].Phyllochron.Base.FixedValue 54

Experiments

There are 3 experiments which tested cultivar Sensation and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Sensation across all experiments.

Table 2: Performance summary for cultivar Sensation
trait n r r2 bias mse rmse nrmse d
Leaf.TrueLeafNumber 54 0.95 0.90 -0.08 0.65 0.81 0.30 0.97
Phenology.EmergenceDAS 18 0.95 0.91 0.61 9.83 3.14 0.27 0.87
Phenology.FloralInitiationDAS 13 -0.31 0.09 -11.23 772.92 27.80 0.37 0.36
Phenology.GreenBudDAS 12 0.69 0.48 -7.83 117.17 10.82 0.10 0.70
Phenology.StartFloweringDAS 5 0.64 0.41 12.20 178.20 13.35 0.08 0.50

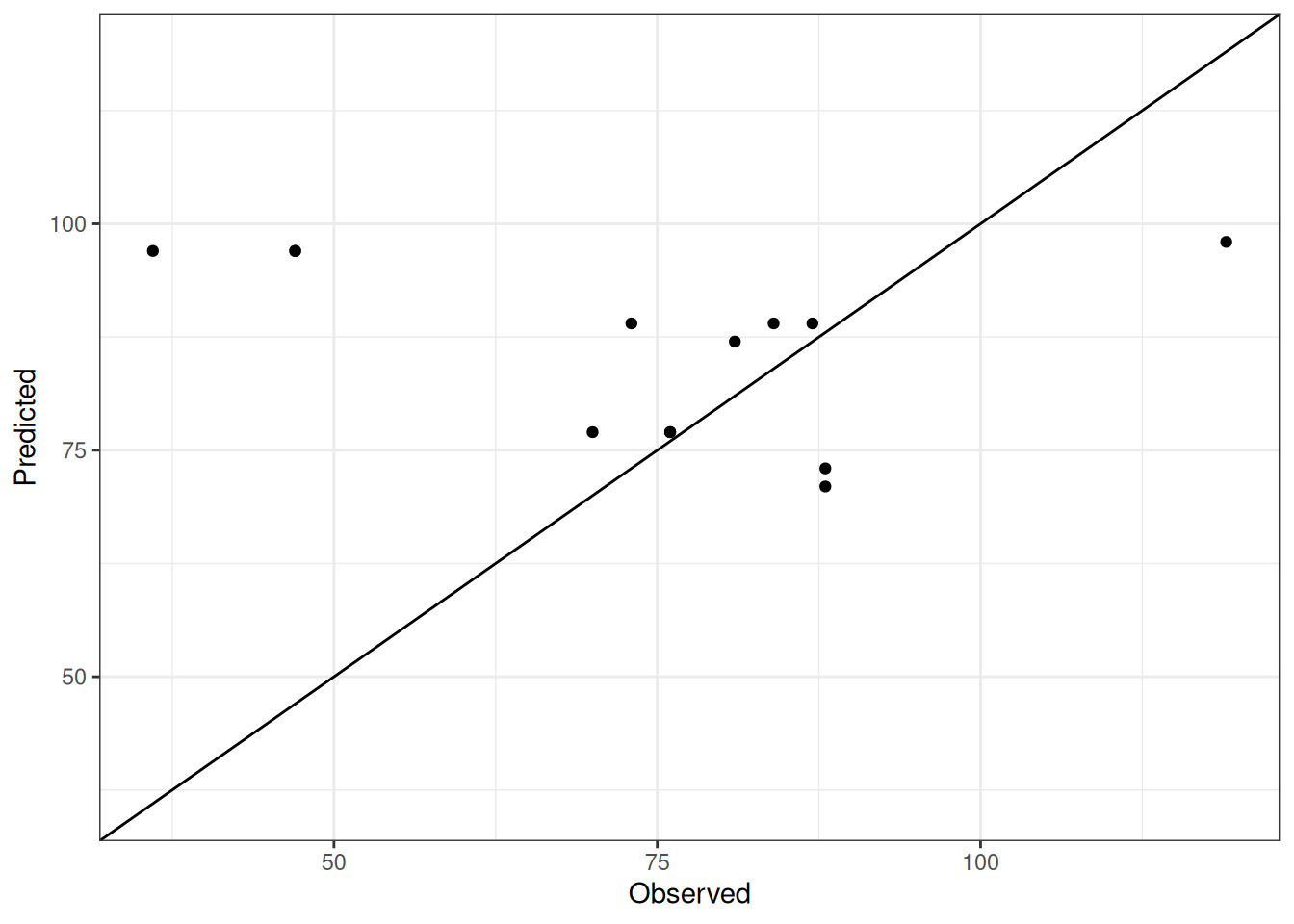

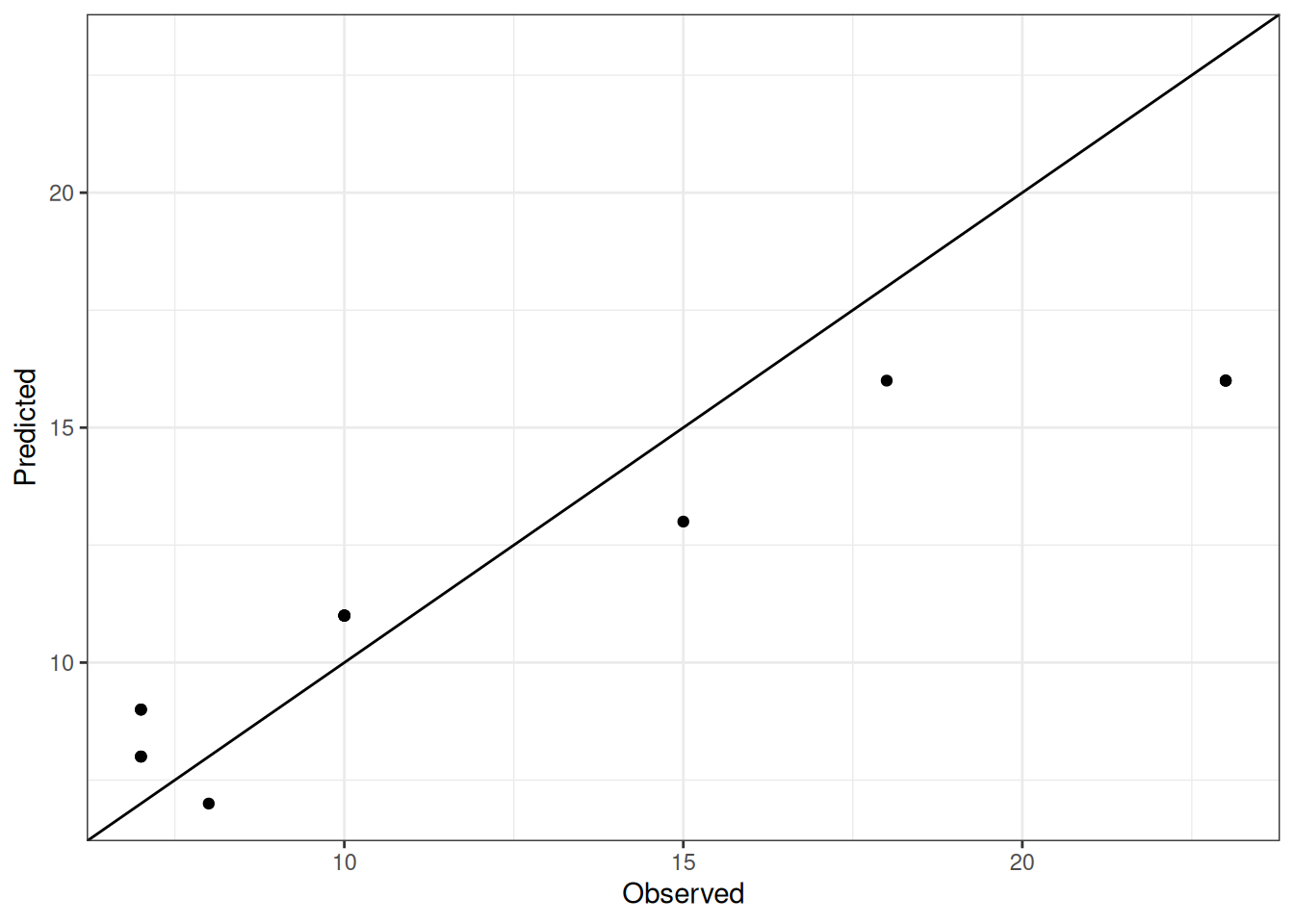

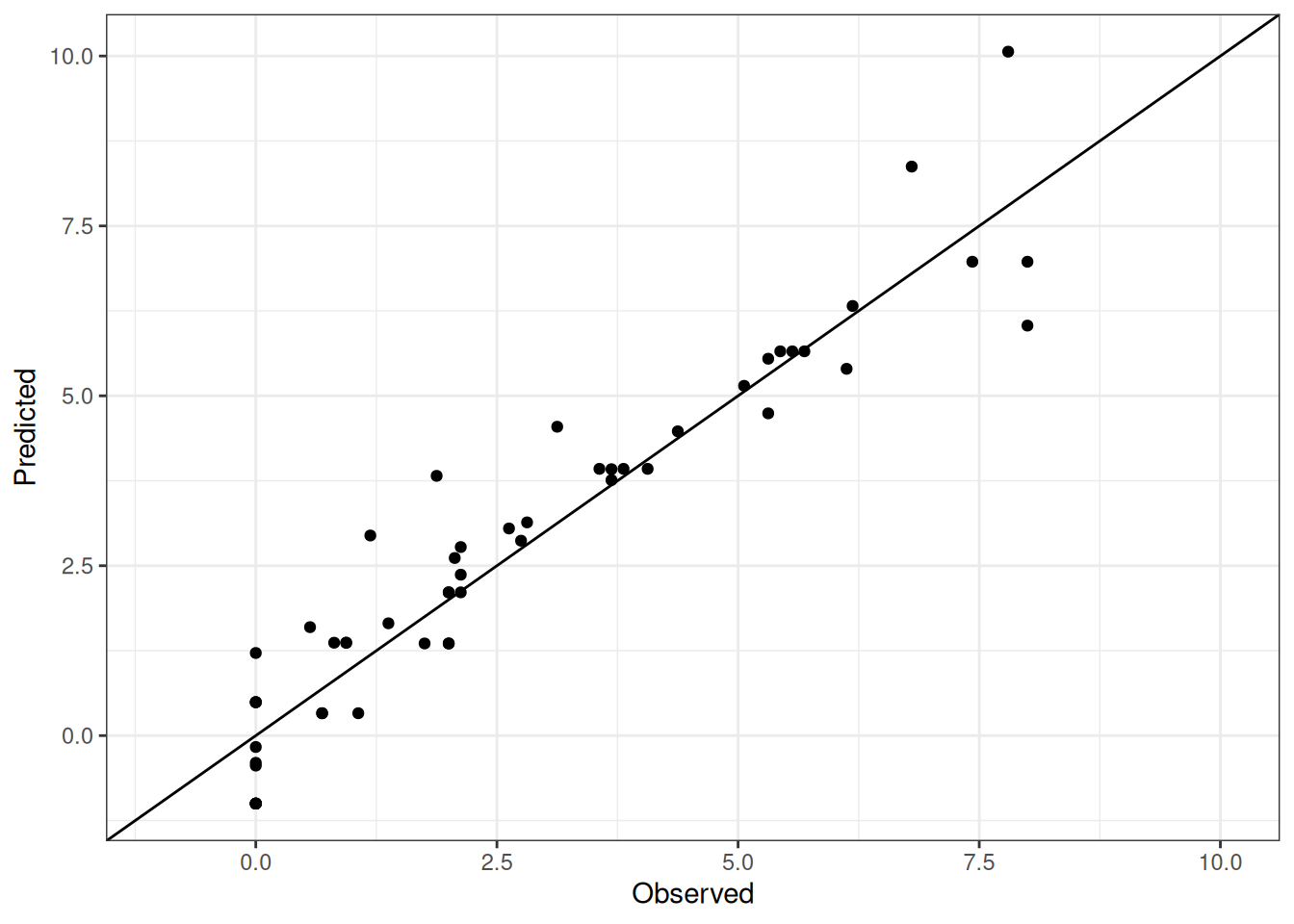

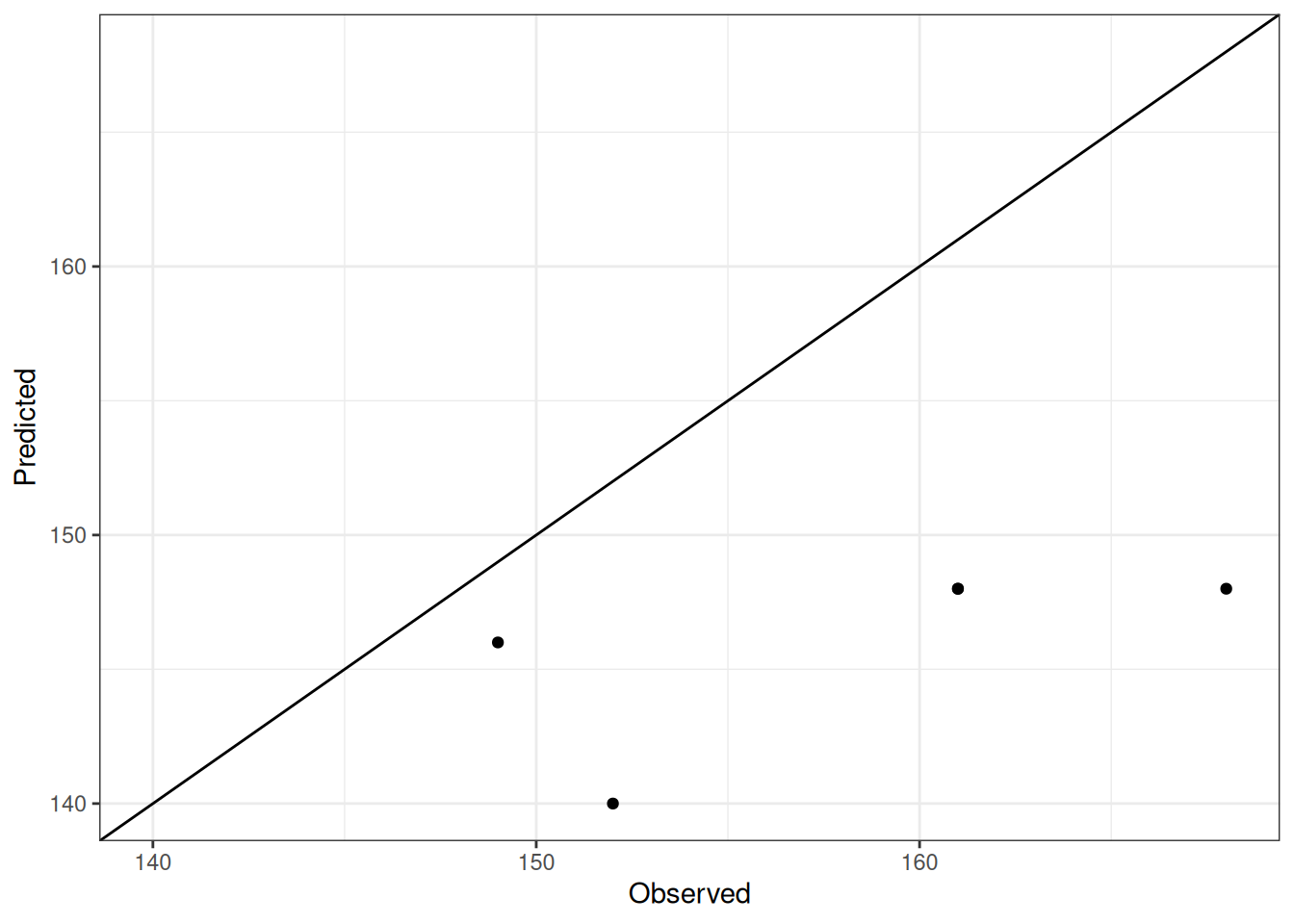

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
