Victory_7001_CL

This report is generated for performance of Canola model in APSIM NG for cultivar Victory_7001_CL.

Cultivar Information

The cultivar specific parameters used in the simulation are listed in the table below:

Table 1: Cultivar specific parameters for Victory_7001_CL
parameter value
[Phenology].Vegetative.Target.XYPairs.X 0,25
[Phenology].Vegetative.Target.XYPairs.Y 430,200
[Leaf].Phyllochron.Base.FixedValue 56

Experiments

There are 2 experiments which tested cultivar Victory_7001_CL and its aliases in the validation test dataset of APSIM NG..

Figure 1: Locations of experiments without controlled environments.

Performance

The table below summarizes the performance of APSIM NG for cultivar Victory_7001_CL across all experiments.

Table 2: Performance summary for cultivar Victory_7001_CL
trait n r r2 bias mse rmse nrmse d
Leaf.TrueLeafNumber 29 0.98 0.97 0.83 0.80 0.89 0.44 0.93
Phenology.EmergenceDAS 13 0.64 0.42 -2.85 17.62 4.20 0.43 0.67
Phenology.FloralInitiationDAS 12 0.74 0.55 -1.00 74.50 8.63 0.20 0.85
Phenology.GreenBudDAS 13 0.88 0.77 -8.23 365.15 19.11 0.26 0.84
Phenology.StartFloweringDAS 12 0.98 0.97 -2.25 66.92 8.18 0.08 0.99

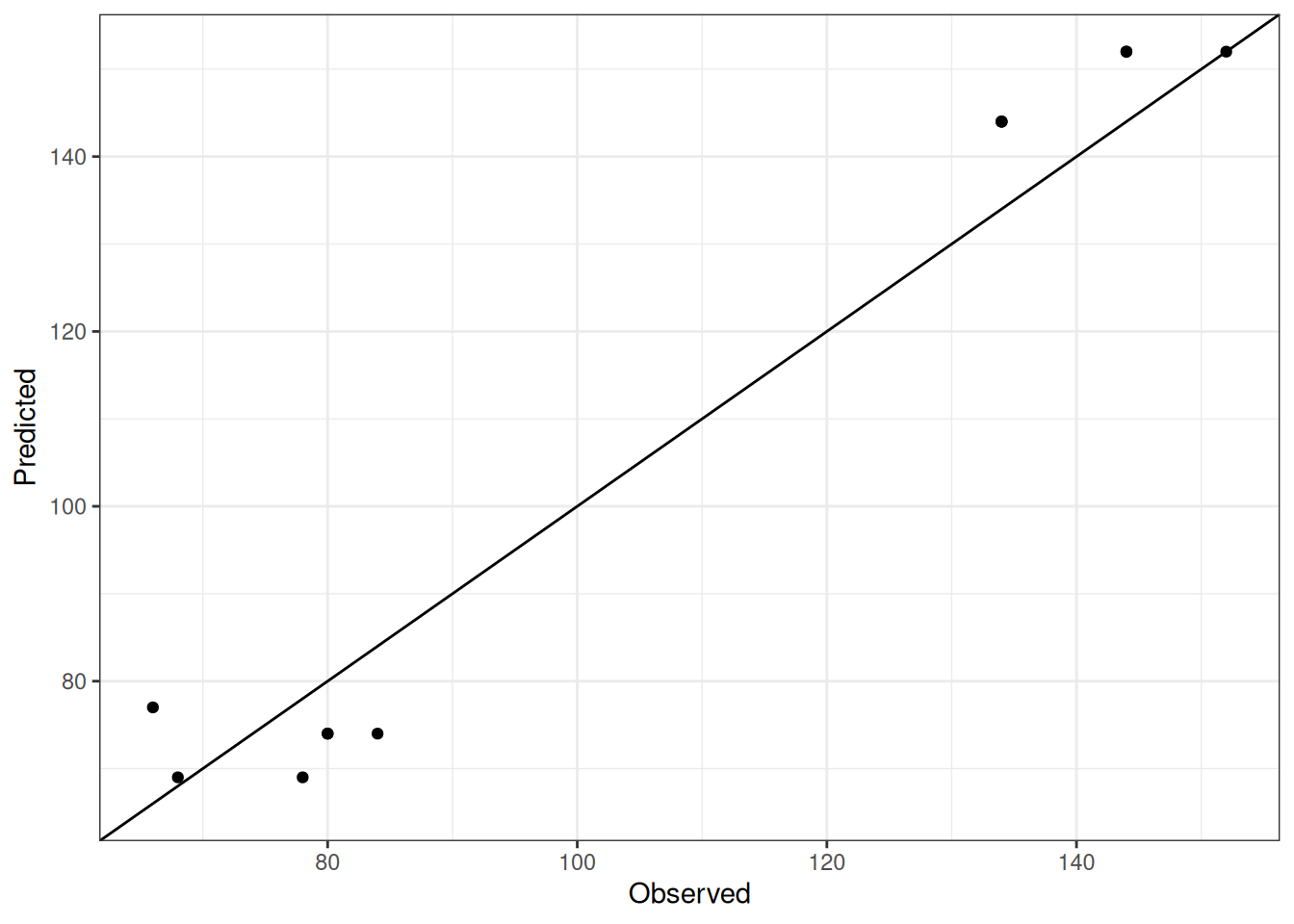

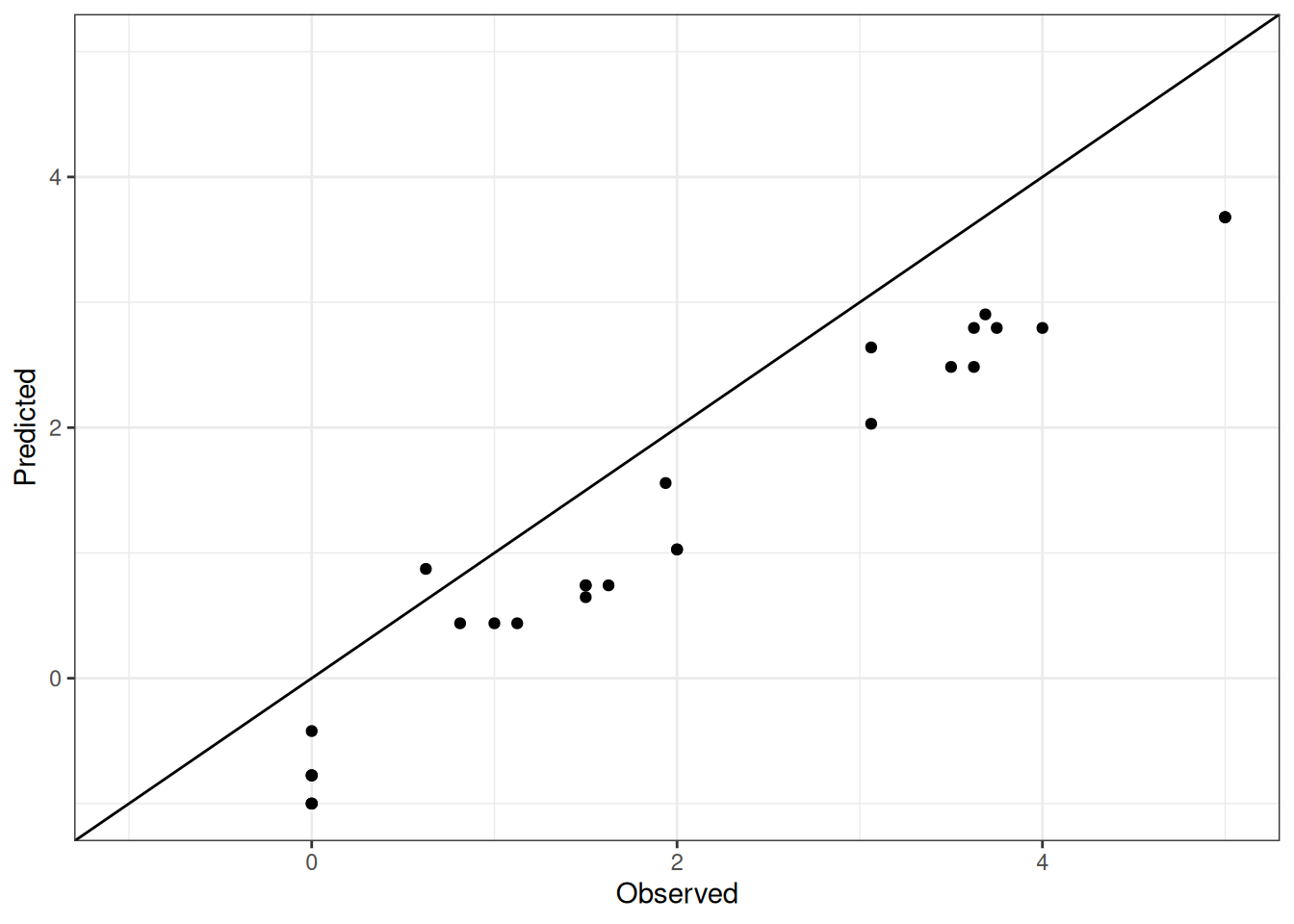

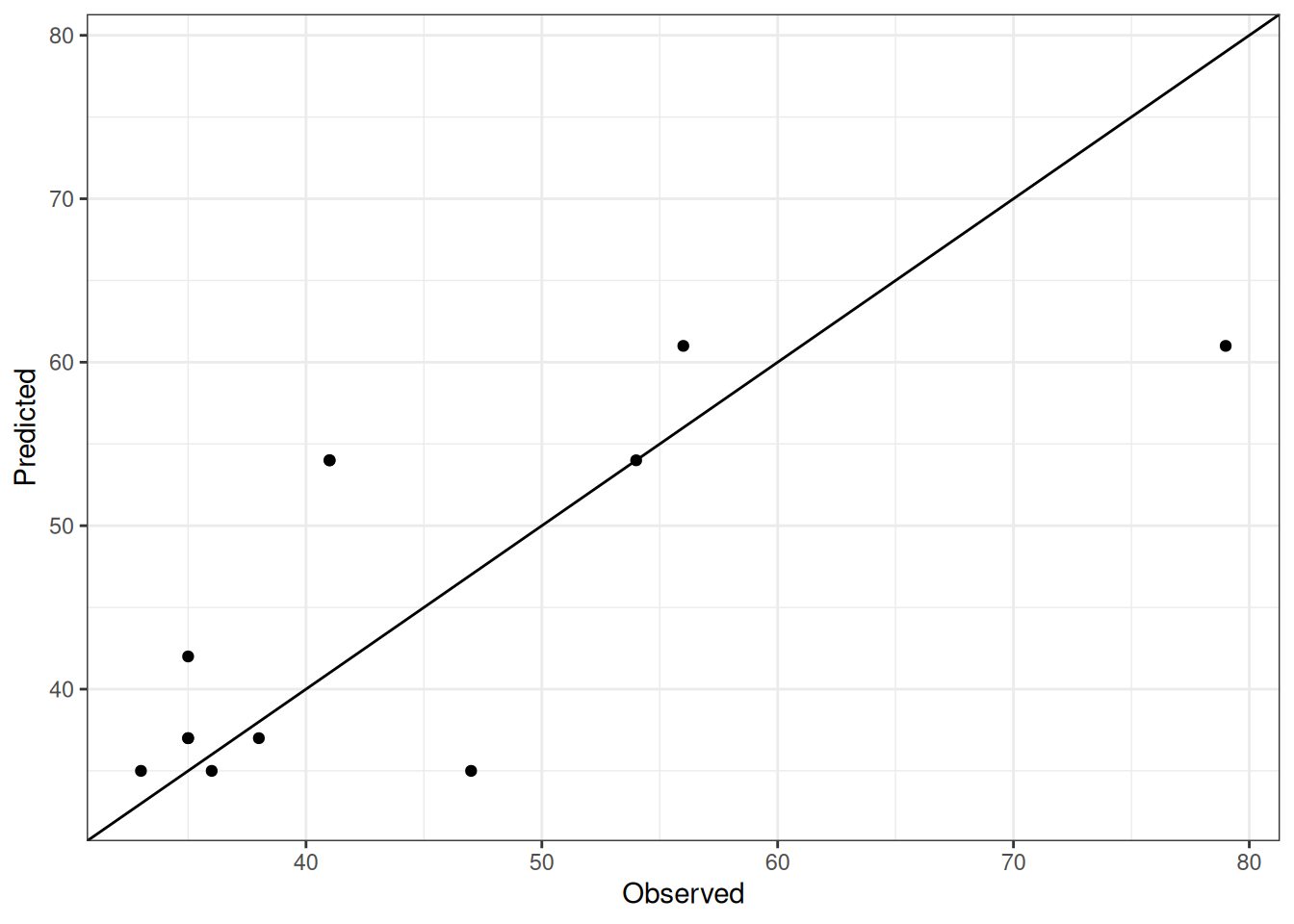

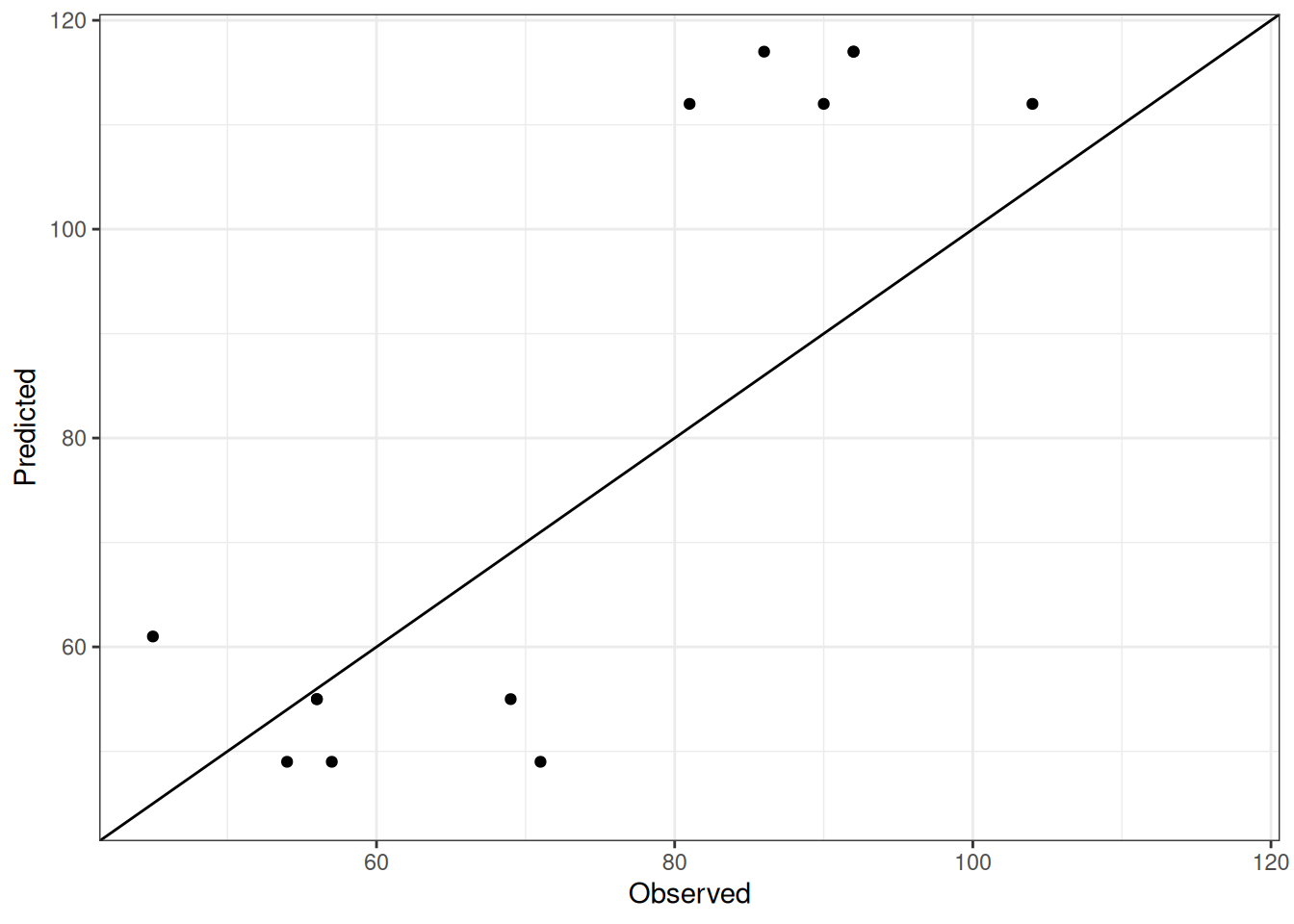

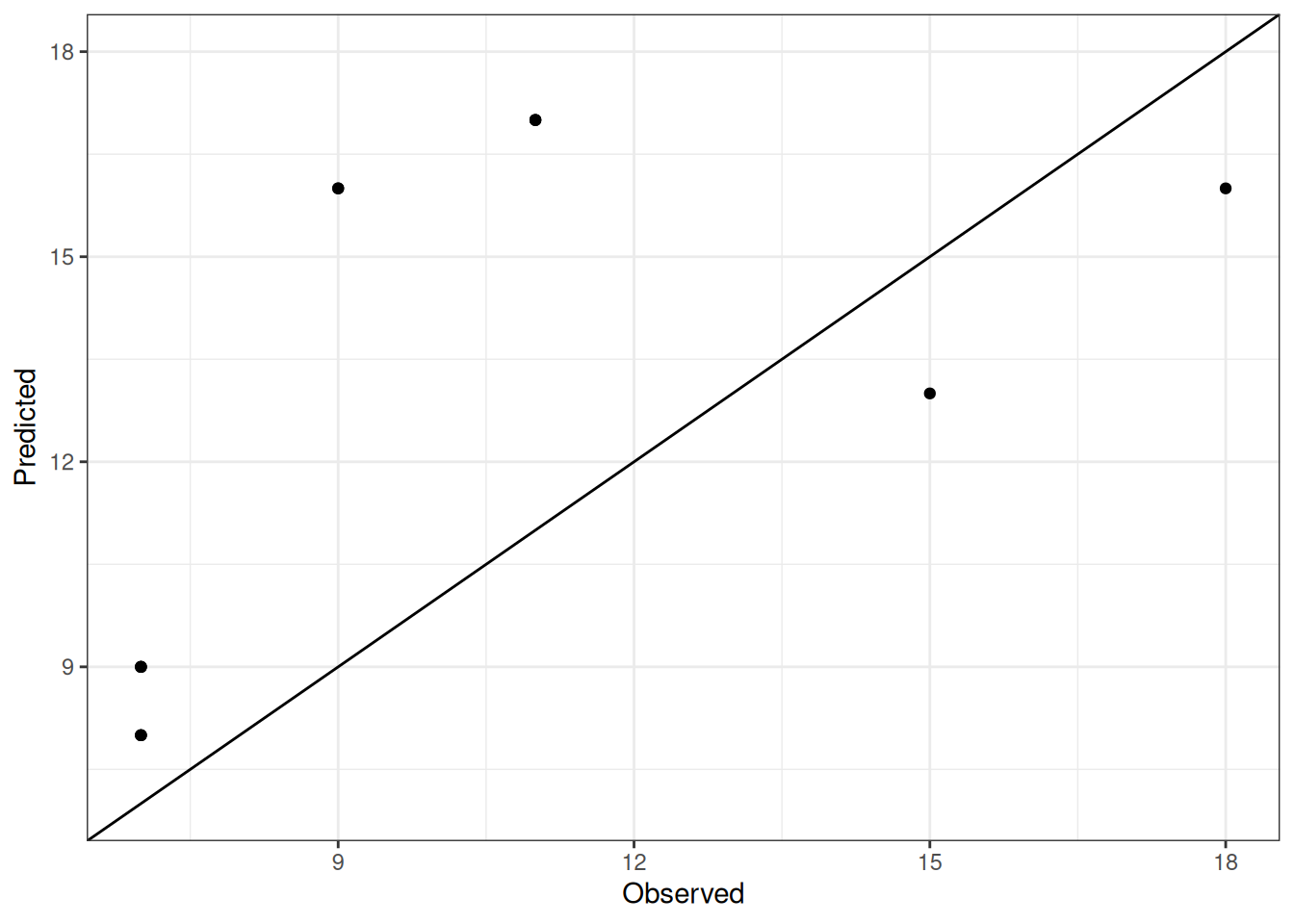

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.

Observed vs Predicted plots for different traits.
